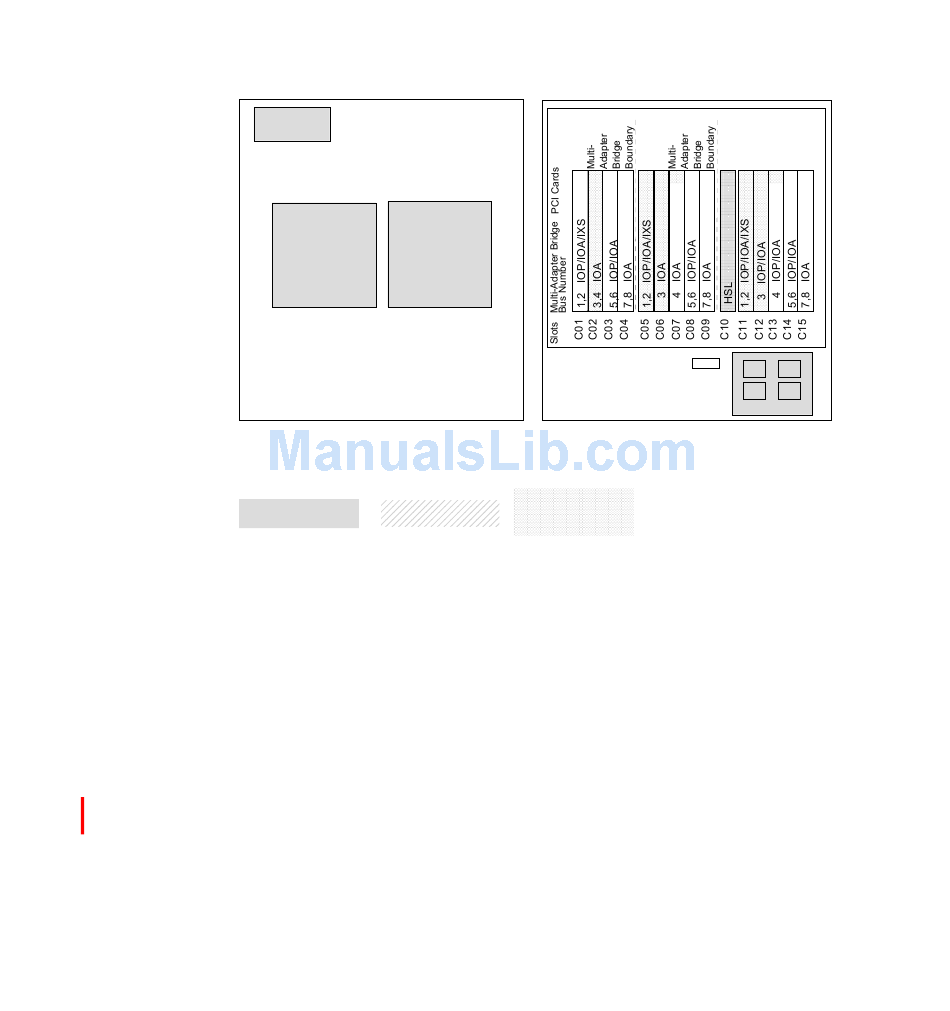

#5088 PCI-X Expansion Unit schematic

OP Panel
Legend
Base Feature
Note 1: If C05 has an Integrated xSeries
Server, slot C06 is unavailable, and slot C07
is available only as a short slot. A #2792 does
not reduce a third slot to a short slot.

#0588 PCI-X Expansion Unit in Rack

The #0588 is the equivalent of a #5088 PCI-X Expansion Unit, but the #0588 is
mounted in an #0551 or #0550 rack. A #0588 is eight EIA units high and has 14
PCI-X slots for PCI IOPs and IOAs. Disk units and removable media are not
supported by the #0588. An #0588 can be on initial, upgrade, or MES orders, but
cannot be converted to a #5088.
PCI IOAs are supported by feature #2843/#2844 PCI IOPs, feature #2790, #2890
PCI Integrated Netfinity® Servers, feature #2791, #2792, #2799, #2891, #2892,
#2899 PCI Integrated xSeries Servers, and the #4710 PCI Integrated xSeries
Server. A #9844 may be used in an #0588. It cannot be ordered with or for a
#0588.
The #0588 has two redundant 575W power supplies and two integrated Power
Distribution Units (PDU) compatible line cords. The line cords may be connected
to the same PDU or separate PDUs in the #0550 or #0551 rack. When the line
IBM Eserver i5 and iSeries System Handbook
272
POWER
POWER
P02
P01
(B01) (B02)
Front
Required Feature
Note 2: If C11 has an Integrated xSeries
Server, slot C12 is unavailable, and slot C13
is available only as a short slot. A #2792 does
not reduce a third slot to a short slot.
Draft Document for Review October 18, 2004
1
3
Note: All slots are 3.3V
VPD
Back
Unavailable if
Integrated xSeries
Server is installed
Note 3: IXS placement is not
supported from plant. Only a
#2792 is allowed in this position.
2
SPCN
