Draft Document for Review October 18, 2004

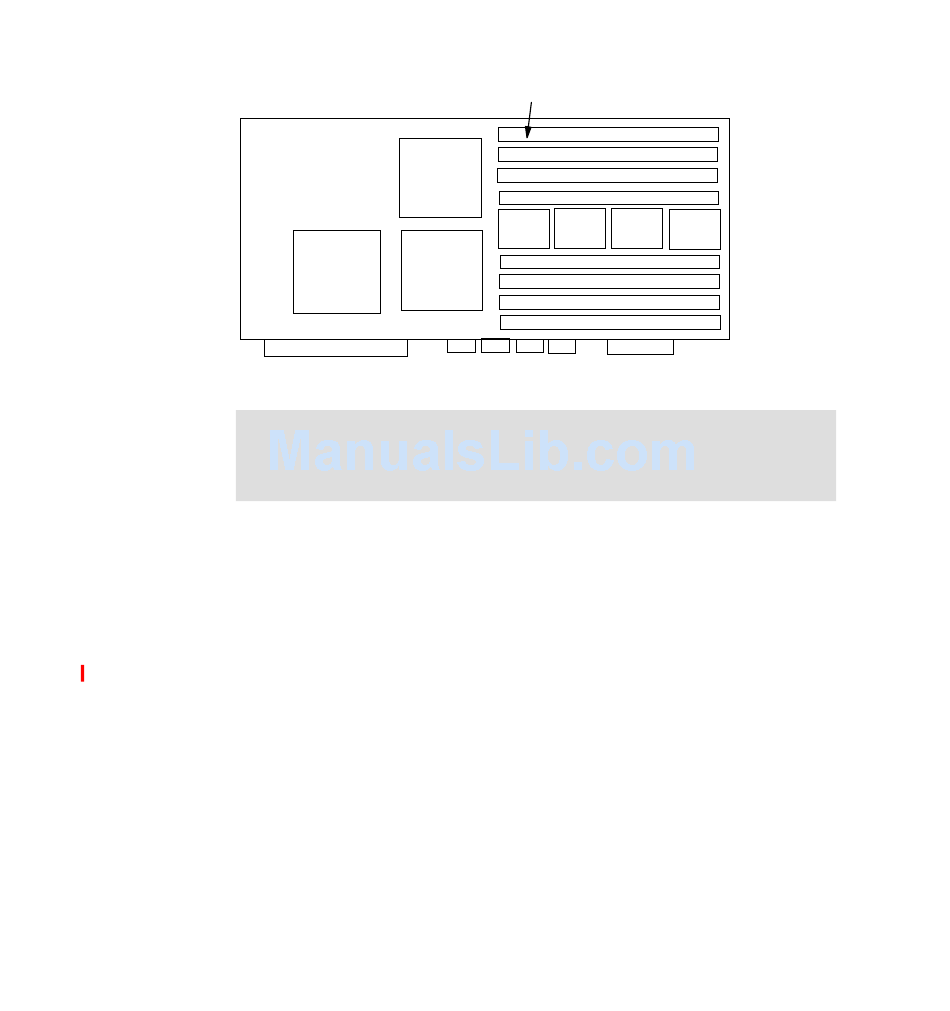

9406 Model 825 Processor and Memory

Note: DIMM quad plugging is J1A, J3A, J0A, J2A, and then J1C, J3C, J0C, J2C

Note: You can find line cord and power receptacle specification information on

http://www.ibm.com/eserver/iseries/infocenter

High-speed link on Model 825

The Model 825 supports up to three HSL loops, two of which can be optical fiber

HSL loops. The optical fiber HSL loop extends the distance between the Model

825 system unit and the I/O units from a limit of 15 meters prior to V5R2, to a

maximum of 250 meters. The extra length can help to improve data reliability and

protection. See "High-speed link" on page 293 for information about supported

HSL cables and HSL loop maximums.

You can find further information in High-speed Link Loop Architecture for the IBM

Eserver iSeries Server: OS/400 Version 5 Release 2, REDP-3652, and the

HSL Rules presentation, which is available on the Web at:

http://www-1.ibm.com/servers/eserver/iseries/ha/systemdesign.html

DIMM Sockets (8X)

iSeries Model 825
