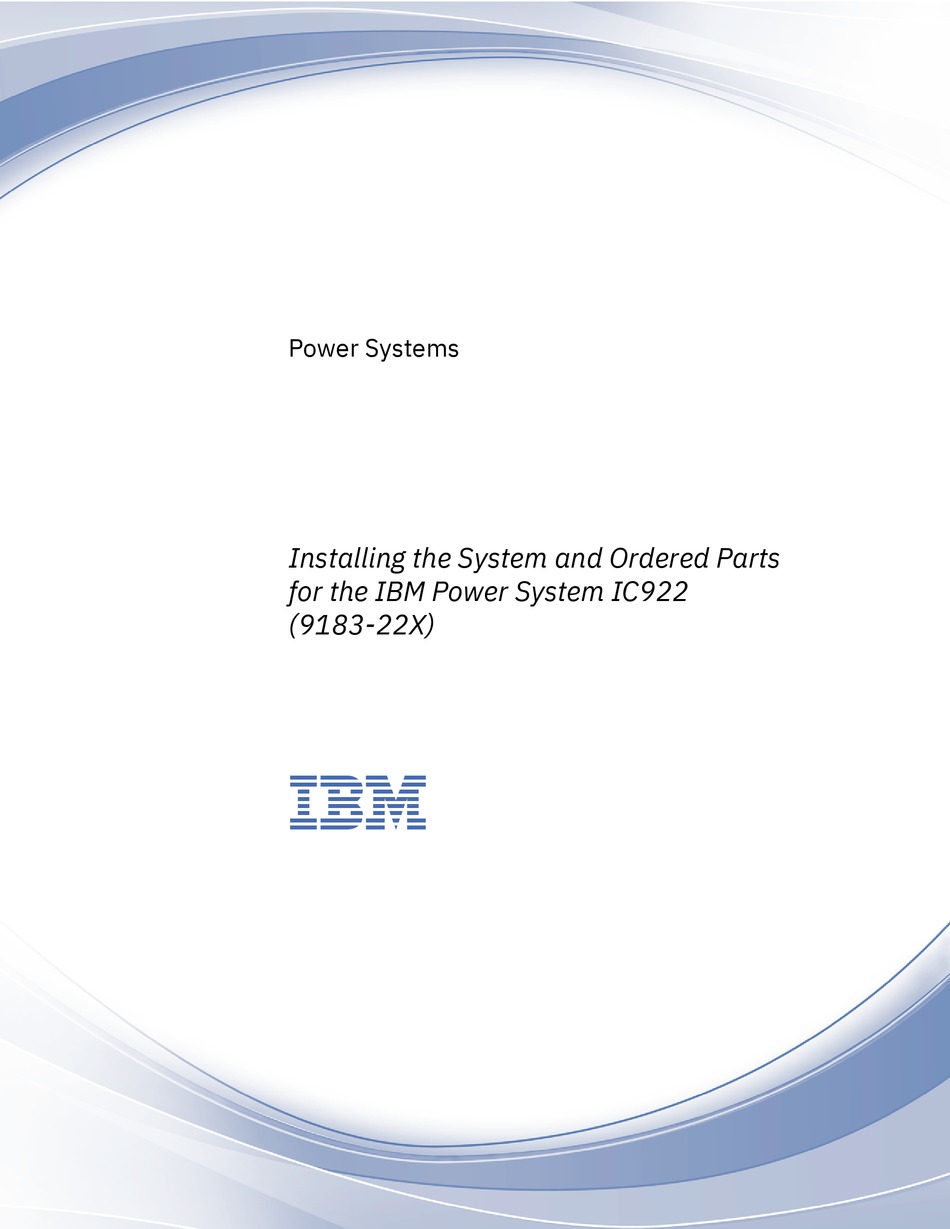

Power Systems
Installing the System and Ordered Parts
for the IBM Power System IC922
(9183-22X)
IBM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power System IC922 and is the answer not in the manual?

Questions and answers

Related Manuals for IBM Power System IC922

Summary of Contents for IBM Power System IC922

  • Page 1 Power Systems Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 2 Note Before using this information and the product it supports, read the information in “Safety notices” on page v, “Notices” on page 121, the IBM Systems Safety Notices manual, G229-9054, and the IBM Environmental Notices and User Guide, Z125–5823. ®...

  • Page 3: Table Of Contents

    Removing and replacing power cords....................111 Additional procedures..................115 Power supplies............................115 Removing a power supply........................115 Replacing a power supply........................118 Notices......................121 Accessibility features for IBM Power Systems servers................122 Privacy policy considerations ......................... 123 Trademarks..............................123 Electronic emission notices........................124 Class A Notices...........................124 Class B Notices...........................127...

  • Page 5: Safety Notices

    Das Produkt ist nicht für den Einsatz an Bildschirmarbeitsplätzen im Sinne § 2 der Bildschirmarbeitsverordnung geeignet. Laser safety information IBM servers can use I/O cards or features that are fiber-optic based and that utilize lasers or LEDs. Laser compliance IBM servers may be installed inside or outside of an IT equipment rack.
  • Page 6 • To avoid hazardous conditions due to uneven mechanical loading, always install the heaviest devices in the bottom of the rack cabinet. Always install servers and optional devices starting from the bottom of the rack cabinet. vi Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 7 • Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted devices. In addition, do not lean on rack mounted devices and do not use them to stabilize your body position (for example, when working from a ladder). •...
  • Page 8 DANGER: Hazardous voltage, current, or energy levels are present inside any component that has this label attached. Do not open any cover or barrier that contains this label. (L001) (L002) viii Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 9 DANGER: Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted devices. In addition, do not lean on rack-mounted devices and do not use them to stabilize your body position (for example, when working from a ladder). Stability hazard: •...
  • Page 10 DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L007) CAUTION: A hot surface nearby. (L007) x Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 11 Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United States, IBM has a process for the collection of this battery. For information, call 1-800-426-4333. Have the IBM part number for the battery unit available when you call.
  • Page 12 Be sure winch is locked in position before releasing handle. Read instruction page before operating this winch. Never allow winch to unwind freely. xii Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 13 Freewheeling will cause uneven cable wrapping around winch drum, damage cable, and may cause serious injury. • This TOOL must be maintained correctly for IBM Service personnel to use it. IBM shall inspect condition and verify maintenance history before operation. Personnel reserve the right not to use TOOL if inadequate.
  • Page 14 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 15: Installing And Configuring The System

    Learn about the prerequisites for installing the server. Before you begin Read the following documents before you install the server: • The latest version of this document is maintained online, see Installing the IBM Power System IC922 (9183-22X) (http://www.ibm.com/support/knowledgecenter/POWER9/p9iaf/ p9iaf_install_kickoff.htm).

  • Page 16: Determining And Marking The Location In The Rack

    3. If necessary, remove the filler panels to allow access to the inside of the rack enclosure where you plan to place the system unit, as shown in Figure 1 on page 3. 2 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 17 Figure 1. Removing the filler panels 4. Facing the front of the rack and working from the right side, use tape, a marker, or pencil to mark the lower hole of each EIA unit. Mark the rack such that the mark can also be seen from the rear of the rack. 5.

  • Page 18: Attaching The Slide Rails To The Rack

    2. Swivel the rail retention bracket out. Push the rails into the rear rack flanges (2) until they click into place (3). Swivel the rail retention bracket so that it locks onto the rack flange. 4 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 19 Figure 3. Pushing the rails into the rear rack flanges 3. Swivel the rail retention bracket out (1) and pull the front of the rail toward the front of the rack, until the pins are aligned with the correct holes in the rack (2). Swivel the rail retention bracket so that it locks onto the rack flange (3).

  • Page 20: Installing The 9183-22X System Into The Rack

    4. Repeat steps “1” on page 4 - “3” on page 5 for the right rail. Installing the 9183-22X system into the rack Learn how to install the IBM Power System IC922 (9183-22X) system into the rack by using slide rails. About this task Note: This system requires two people to install the system into the rack.

  • Page 21: Installing The Cable-Management Arm And Connecting And Routing Power Cables

    Installing the cable-management arm and connecting and routing power cables The cable-management arm is used to efficiently route cables so that you have proper access to the rear of the system. After you install the cable-management arm, connect and route power cables. About this task Note: If you are installing more than one system now, install the cable-management arm after you install the other systems into the rack.
  • Page 22 IPL. For more information about setting the baseboard management controller (BMC) Admin password, see Setting the password. 6. Plug the power cords into the power supplies. 8 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 23 Figure 8. Connecting the power cords to the system 7. Attach all other cables to the rear of the server. Figure 9. Rear view of the system with ports displayed Table 1. Port descriptions Identifier Description Video Graphics Array (VGA) Note: Cables up to 3 meters are supported.
  • Page 24 Figure 11. Attaching the extension tab to the cable management arm to the outer cable management arm tab c. Remove the three outer cable management arm baskets from the rear of the cable management arm. 10 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 25: Completing The Server Setup

    (BMC) for system service management, monitoring, maintenance, and control. For more information, see Managing OpenBMC- based systems (http://www.ibm.com/support/knowledgecenter/POWER9/p9eih/ p9eih_openbmc_kickoff.htm). Note: To enable system firmware update and other service tasks, the BMC must be connected to the network.

  • Page 26: Setting Up A Preinstalled Server

    Learn about the prerequisites for installing the server. Before you begin Read the following documents before you install the server: • The latest version of this document is maintained online, see Installing the IBM Power System IC922 (9183-22X) (http://www.ibm.com/support/knowledgecenter/POWER9/p9iaf/ p9iaf_install_kickoff.htm).
  • Page 27 If you have incorrect, missing, or damaged parts, consult any of the following resources: • Your IBM reseller. • IBM Rochester manufacturing automated information line at 1-800-300-8751 (United States only). • The Directory of worldwide contacts website http://www.ibm.com/planetwide. Select your location to view the service and support contact information.
  • Page 28 To subscribe to receive updates, complete the following steps: a) Go to the IBM Support Portal. b) Log in by using your IBM ID and password and click Sign in. 14 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 29: Installing A Front Hard Disk Drive Or Solid-State Drive

    Open Power Abstraction Layer (OPAL) firmware. For more information about installing the Linux operating system on bare metal systems, see Installing Linux on bare metal systems (https://www.ibm.com/support/knowledgecenter/linuxonibm/liabw/ liabw9kickoff.htm). Installing a front hard disk drive or solid-state drive in the 9183-22X system To install a front hard disk drive or solid-state drive, complete the steps in this procedure.
  • Page 30 Important: Ensure that the drive is fully seated and is all the way into the system. c) Lock the drive bay handle (A) by pushing in the handle release as shown in the following figure. 16 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 31: Installing Or Upgrading Memory Modules

    Figure 16. Replacing a drive Installing or upgrading memory modules in the 9183-22X system Find information about installing or upgrading memory modules in the IBM Power System IC922 (9183-22X) server. Memory module plugging rules in the 9183-22X system Learn the memory module placement rules for the system.
  • Page 32 Table 5. Memory module population order. Memory module slot locations and number of DIMMs. CPU 1 memory module slot locations CPU 0 memory module slot locations 4 DIMMs 8 DIMMs 18 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 33: Installing Memory Modules

    Table 5. Memory module population order. Memory module slot locations and number of DIMMs. (continued) CPU 1 memory module slot locations CPU 0 memory module slot locations 12 DIMMs 16 DIMMs 24 DIMMs 32 DIMMs Installing memory modules in the 9183-22X system To install memory modules, complete the steps in this procedure.
  • Page 34 3. Locate the memory module to install. The following figure shows the location of memory modules in the system. Figure 19. Locating the memory modules 20 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 35 4. If the memory socket is covered by the drive cables and the drive cable holder on the left side of the system, complete the following procedure. a) Remove the drive cables from the drive cable holder. Let the cables rest on the system processor heat sink. b) Retract the retaining pin (A) as shown in the following figure.
  • Page 36 Remove the drive cables from the drive cable holder. b) Retract the retaining pin (A) as shown in the following figure. 22 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 37 Figure 22. Retracting the retaining pin and removing the right cable holder c) Lift the drive cable holder out of the system. d) Remove the cables from the top of the power distribution board. e) To remove the power distribution board, unlatch tab (A), unplug, and lift the power distribution board from the system backplane as shown in the following figure.
  • Page 38 7. To install the memory module, complete the following steps: a) Push the locking tabs to the open position, away from the slot, in the direction shown in the following figure. 24 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 39 Figure 24. Installing a memory module b) Grasp the memory module along its edges and align it with the slot. Attention: The memory module is keyed to prevent it from being installed incorrectly. Note the location of the key tab within the memory module connector before you attempt to install it.
  • Page 40 Replace the drive cable holder in the system. Ensure that the alignment pins match the slots in the holder. b) Reset the retaining pin (A) to lock the holder in place as shown in the following figure. 26 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 41 Figure 26. Replacing the left cable holder and resetting the retaining pin c) Replace the drive cables into the drive cable holder. 10. If you removed the power distribution board from the right side of the system, replace the power distribution board by using the following procedure.
  • Page 42 Replace the drive cable holder in the system. Ensure that the alignment pins match the slots in the holder. b) Reset the retaining pin (A) to lock the holder in place as shown in the following figure. 28 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 43 Figure 28. Replacing the right cable holder and resetting the retaining pin c) Replace the drive cables into the drive cable holder. 11. Replace the air baffle (A) straight down into the chassis as shown in the following figure. Ensure that the pins inside the system side walls align properly with the slots in the cover (B). Installing and configuring the 9183-22X 29...

  • Page 44: Installing Pcie Adapters

    Figure 30 on page 31 shows the rear view of the system with the PCIe adapter slots. The system supports full-height, full- length, and half-length PCIe adapters. 30 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 45 Figure 30. Rear view of a system with PCIe slots indicated Table 6. PCIe slots and descriptions for the system Slot Description Adapter size Processor Coherent identification module Accelerator Processor Interface (CAPI) 2.0 PCIe4 x16 Half-height, Half-length CPU 0 PCIe3 x16 Half-height, Half-length CPU 0 PCIe3 x16...
  • Page 46 PCIe2 4-port 1 GbE adapter (FC 5260, FC 3, 8, 4, 9, 5, 10 5899, FC EL4L, and FC EL4M; CCIN 576F); Adapter part number: 74Y4064 32 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 47: Pcie Adapters By Feature Code

    • If you are installing a new feature, ensure that you have the software and utilities that are required to support the new feature and determine whether you must install any adapter firmware updates. The latest version of adapter firmware and utilities can be downloaded from Fix Central (http:// www.ibm.com/support/fixcentral/). Installing and configuring the 9183-22X 33...
  • Page 48 PCIe2 4-port (10 Gb + 1 GbE) SR+RJ45 adapter (FC EN0S, FC EN0T, FC EN0U, and FC EN0V; CCIN 2CC3); Adapter FRU number: 00E2715 34 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 49 Table 8. PCIe adapters supported in the 9183-22X system (continued) Feature Description code EN0U PCIe2 4-port (10 Gb + 1 GbE) SR+RJ45 adapter (FC EN0S, FC EN0T, FC EN0U, and FC EN0V; CCIN 2CC3); Adapter FRU number: 00E2715 EN0V PCIe2 4-port (10 Gb + 1 GbE) SR+RJ45 adapter (FC EN0S, FC EN0T, FC EN0U, and FC EN0V;...
  • Page 50 Figure 31. FC 5260 and FC EL4M PCIe2 4-port 1 GbE adapter 36 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 51 Adapter FRU number 74Y4064 Wrap plug 10N7405 Note: Wrap plugs are not included with the card and cannot be purchased from IBM. I/O bus architecture PCIe2 x4 Slot requirement For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/...
  • Page 52 • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html). • For support details, see the Linux Alert website (http://www14.software.ibm.com/webapp/set2/sas/f/ lopdiags/info/LinuxAlerts.html).
  • Page 53 PCIe3 2-port 10 Gb NIC & RoCE SR/Cu adapter (FC EC2R and EC2S; CCIN 58FA) Learn about the specifications and operating system requirements for feature code (FC) EC2R and EC2S adapters. Overview FC EC2R and EC2S are both the same adapter with different feature codes. FC EC2R is a low-profile adapter and FC EC2S is a full-height adapter.
  • Page 54 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system you are working on. Voltage 3.3 V, 12 V 40 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 55 RDMA over Converged Ethernet (RoCE) Dual port 10 Gb Ethernet network connectivity Supports 10 Gb Ethernet SFP+ connectivity ® Supports 10 Gb SFP+ SR connectivity with a 10 Gb optical transceiver (IBM P/N 77P9336, purchased separately) ® Network Installation Management (NIM) support PCI Express 3.0 (up to 8 GT/s) x8...
  • Page 56 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 57 Figure 35. PCIe3 LP 2-port 25/10 Gb NIC & RoCE SFP28 Adapter (FC EC2T) Installing and configuring the 9183-22X 43...
  • Page 58 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system you are working on. Voltage 3.3 V, 12 V. 44 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 59 Dual port 25 Gb/10 Gb Ethernet network connectivity. Supports 25 Gb Ethernet SFP28 connectivity. Supports 10 Gb Ethernet SFP+ connectivity. ® Supports 25 Gb SFP28 SR connectivity with a 25 Gb optical transceiver (IBM P/N 77P5153, purchased separately). ® Supports 10 Gb SFP+ SR connectivity with a 10 Gb optical transceiver (IBM P/N 77P9336, purchased separately).
  • Page 60 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 61 • For support details, see the Linux Alert website (http://www14.software.ibm.com/webapp/set2/sas/f/ lopdiags/info/LinuxAlerts.html). PCIe4 x16 1-Port EDR 100 GB IB ConnectX-5 CAPI Capable Adapter (FC EC62 and EC63; CCIN 2CF1) Learn about the specifications and operating system requirements for feature code (FC) EC62 and EC63 adapters.
  • Page 62 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system you are working on. 48 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 63 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 64 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system you are working on. 50 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 65 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 66 Figure 39. 2-port 100 GbE RoCE En Connectx-5 Gen4 PCIe x16 adapter (FC EC66) 52 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 67 (CHANGE TO LINK) Cable and transceiver matrix. Note: For 40G, IBM offers DAC cables up to 3 M. QSFP+ base transceivers are included on each end of these cables. See FC EB2B and EB2H for a 1 M and 3 M copper cables.
  • Page 68 QSFP+ 40G BASE-SR4 optical transceiver MTP/MPO cable (purchased separately) • FC EB2J - 10 M • FC EB2K - 30 M Voltage 3.3 V, 12 V 54 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 69 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 70 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system on which you are working. Voltage 3.3 V, 12 V. 56 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 71 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • For support details, see the Linux Alert website (http://www14.software.ibm.com/webapp/set2/sas/f/ lopdiags/info/LinuxAlerts.html). Broadcom HBA 9305-16i PCIe3 X8 with 4 mini SAS cables (FC EK43) Learn about the specifications and operating system requirements for the feature code (FC) EK43 adapter.
  • Page 72 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system on which you are working. Voltage 3.3 V, 12 V. 58 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 73 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • For support details, see the Linux Alert website (http://www14.software.ibm.com/webapp/set2/sas/f/ lopdiags/info/LinuxAlerts.html). EK47 Broadcom MegaRAID 9361-8i SAS3 X8 - 2 GB cache controller and CacheVault Power Module...
  • Page 74 Figure 43. Broadcom 9361-8i SAS3 X8 adapter 60 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 75 Figure 44. Connecting the Broadcom MegaRAID 9361-8i SAS3 X8 adapter by cable to the CacheVault Power Module For more information about the Broadcom MegaRAID 9361-8i SAS3 X8 adapter, refer to the Broadcom website (https://www.broadcom.com/products/storage/raid-controllers/megaraid-sas-9361-8i). Use the links Specifications, Documentation, and Downloads. Installing and configuring the 9183-22X 61...
  • Page 76 GDDR6 memory and a maximum power limit of 70 W. The FC EK4L is a short, low-profile adapter. The FC EK4M is a short adapter with a full-height tail stock. 62 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 77 Figure 45. FC EK4L low-profile NVIDIA T4 PCIe GPU accelerator adapter Installing and configuring the 9183-22X 63...
  • Page 78 Voltage 3.3 V, 12 V Form factor Short, low-profile (FC EK4L) Short, with full-height tail stock (FC EK4M) 64 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 79 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 80 • Provides on-board diagnostic capability accessible by an optional connection • Provides a performance up to 16 Gbps full duplex The following figures show the adapter. 66 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 81 Figure 47. PCIe3 16 Gb 2-port Fibre Channel adapter (FC EL43 and EN0B) Installing and configuring the 9183-22X 67...
  • Page 82 For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities (http://www.ibm.com/support/knowledgecenter/POWER9/p9eab/ p9eab_mtm_pciplacement.htm) and select the system you are working on. Voltage 3.3 V, 12 V Form factor Short, MD2 68 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 83 FC compatibility 4, 8, 16 Gb Cables Cables are the responsibility of the customer. Use multimode fiber optic cables with shortwave lasers that adhere to the following specifications: • OM4: Multimode 50/125 micron fiber, 4700 MHz x km bandwidth • OM3: Multimode 50/125 micron fiber, 2000 MHz x km bandwidth •...
  • Page 84 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 85 PCIe2 4-port (10 Gb + 1 GbE) SR / Copper SFP +RJ45 adapter (FC EN0S, FC EN0T, FC EN0U, and FC EN0V; CCIN 2CC3) Learn about the specifications and operating system requirements for the feature code (FC) EN0S, FC EN0T, FC EN0U, and FC EN0V adapters. Overview The PCIe2 4-port (10 Gb + 1 GbE) SR / Copper SFP +RJ45 adapter is a PCI Express (PCIe) generation 2 (Gen2) x8, short form-factor adapter.
  • Page 86 Figure 49. PCIe2 4-Port (10 Gb + 1 GbE) SR / Copper SFP +RJ45 adapter (FC EN0S and FC EN0U) Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX and IBM i operating systems.
  • Page 87 Figure 50. PCIe2 LP 4-port (10Gb+1GbE) SR / Copper SFP +RJ45 adapter (FC EN0T and FC EN0V) Note: The ports are numbered from top to bottom of the adapter as T1, T2, and so on for the AIX and IBM i operating systems.
  • Page 88 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 89 PCIe2 2-port 10 GbE BaseT RJ45 adapter (FC EL3Z, FC EL55, FC EN0W, and FC EN0X; CCIN 2CC4) Learn about the specifications and operating system requirements for the feature code (FC) EL3Z, FC EL55, FC EN0W, or FC EN0X adapter. Overview The PCIe2 2-port 10 GbE BaseT RJ45 adapter is a PCI Express (PCIe) generation 2, x8 adapter.
  • Page 90 Figure 51. PCIe2 2-port 10 GbE BaseT RJ45 adapter (FC EL55 or FC EN0W) Figure 52. PCIe2 LP 2-port 10 GbE BaseT RJ45 adapter (FC EL3Z or FC EN0X) 76 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 91 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 92 LED sequence for several seconds to ensure that the operating state is correctly identified. Figure 53. PCIe3 x8 2-port Fibre Channel (32 Gb/s) Specifications Item Description 78 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 93 • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 94 LED sequence for several seconds to ensure that the operating state is correctly identified. Figure 54. PCIe3 x8 4-port fibre Channel (16 Gb/s) Specifications Item Description Adapter FRU number 01FT699 80 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 95: Installing A Pcie Adapter

    • Power Systems Prerequisites (http://www14.software.ibm.com/support/customercare/iprt/home). • IBM SSIC (System Storage Interoperation Center) (http://www-03.ibm.com/systems/support/storage/ ssic/interoperability.wss). • The latest version of the device driver or IBM Power RAID adapter utilities (iprutils) can be downloaded from the IBM Service and Productivity Tools website (http://www14.software.ibm.com/webapp/ set2/sas/f/lopdiags/home.html).
  • Page 96 5 seconds before you continue with the service process. 2. Lift the air baffle (A) straight up as shown in the following figure. Place the air baffle on a clean area. 82 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 97 Figure 55. Removing the air baffle 3. Determine where the PCIe adapter is plugged. • If the PCIe adapter is plugged into the system backplane, continue with step “4” on page 83. • If the PCIe adapter is plugged into a PCIe riser, continue with step “7” on page 85. 4.
  • Page 98 6. Insert the PCIe adapter, aligning it properly and inserting it fully into the slot as shown in the following figure. Replace the tailstock screw to secure the PCIe adapter to the system. 84 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 99 Figure 57. Inserting a PCIe adapter Continue with step “8” on page 88. 7. To insert a PCIe adapter into a PCIe riser, complete the following steps: a) Lift the PCIe riser up, out of the system as shown in the following figure. Installing and configuring the 9183-22X 85...
  • Page 100 Figure 58. Removing the PCIe riser b) Removing the tailstock screw and remove the PCIe tailstock filler (A) from the riser (B) as shown in the following figure. 86 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 101 Figure 59. Removing a PCIe tailstock filler from a riser c) Insert the PCIe adapter (A) into the proper slot in the PCIe riser (B) as shown in the following figure. Replace the tailstock screw to secure the PCIe adapter to the PCIe riser. Figure 60.
  • Page 102 9. Replace the air baffle (A) straight down into the chassis as shown in the following figure. Ensure that the pins inside the system side walls align properly with the slots in the cover (B). 88 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 103: Common Procedures For Servicing Or Installing Features

    Learn about the common procedures related to installing, removing, and replacing features in the system. Before you begin Observe these precautions when you are installing, removing, or replacing features and parts in the IBM Power System IC922 (9183-22X) server. About this task These precautions are intended to create a safe environment to service your system and do not provide steps for servicing your system.
  • Page 104 Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: • If IBM supplied the power cord(s), connect power to this unit only with the IBM provided power cord. Do not use the IBM provided power cord for any other product.
  • Page 105 3. Attach the signal cables to the connectors. 4. For AC power, attach the power cords to the outlets. 5. For racks with a DC power distribution panel (PDP), restore the power from the Customer's DC power source and turn on the circuit breakers located in the PDP. 6.
  • Page 106 (R001 part 2 of 2) (L003) 92 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 107 DANGER: Multiple power cords. The product might be equipped with multiple AC power cords or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L005) CAUTION: Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in splattered metal, burns, or both.

  • Page 108: Identifying The System That Contains The Part To Replace

    8. Ensure that the top cover is on when the system is running for thermal performance. Identifying the system that contains the part to replace Learn how to determine which IBM Power System IC922 (9183-22X) server or enclosure has the part you want to replace.
  • Page 109 Figure 63. Front control panel LEDs Figure 64. Front drive LEDs Figure 65. Rear LEDs Installing and configuring the 9183-22X 95...
  • Page 110 Figure 67. Locating the Identify LED button • You can use the following command to activate the blue system identify LED: 96 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 111: Preparing The System To Remove And Replace Internal Parts

    openbmctool -U <username> -P <password> -H <BMC IP address or BMC host name> chassis identify on To turn off the blue system identify LED, use the following command: openbmctool -U <username> -P <password> -H <BMC IP address or BMC host name> chassis identify off To check the status of the blue system identify LED, use the following command: openbmctool -U <username>...
  • Page 112 98 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 113 DANGER: Multiple power cords. The product might be equipped with multiple AC power cords or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L005) CAUTION: Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in splattered metal, burns, or both.
  • Page 114 CAUTION: Do not place any object on top of a rack-mounted device unless that rack-mounted device is intended for use as a shelf. (R008) (L012) 100 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 115: Preparing The System For Operation

    CAUTION: Pinch hazard. (L012) 9. Remove the service access cover. For instructions, see “Removing the service access cover from a 9183-22X system” on page 107. Preparing the 9183-22X system for operation after you remove and replace internal parts To prepare the system for operation after you remove and replace internal parts, complete the steps in this procedure.

  • Page 116: Starting And Stopping The System

    Starting and stopping the 9183-22X system Find information about starting and stopping the IBM Power System IC922 (9183-22X) server to perform a service action or system upgrade operation. 102 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 117 Starting the 9183-22X system You use the power switch to start the system. About this task Attention: For safety, airflow purposes and thermal performance, the service access cover must be installed and fully seated before you power on the system. You can use this procedure to power on the system, or you can use a console to power on the system.

  • Page 118: Drive Commands For The 9183-22X System

    To turn off the identify LED: storcli /cx[/ex]/sx stop locate To prepare a drive for removal: storcli /cx[/ex]/sx spindown To view the adapter settings: 104 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 119 Learn about the StorCLI commands that are available at petitboot. For details on managing RAID arrays, see "Chapter 6: StorCLI" in the MegaRAID SAS Software User Guide (docs.broadcom.com/docs/DB15-001199-02). See How to use Petitboot bootloader (www.ibm.com/support/knowledgecenter/linuxonibm/liabw/ liabppetitboot.html). StorCLI commands available at petitboot:...
  • Page 120 For details on using the SAS3FLASH command, see https://www.broadcom.com/products/storage/host- bus-adapters/sas-9305-16i#downloads (www.broadcom.com/products/storage/host-bus-adapters/ sas-9305-16i#downloads). Look under the "Management Software and Tools" section, for the SAS3FLASH_P15 archive. See How to use Petitboot bootloader (www.ibm.com/support/knowledgecenter/linuxonibm/liabw/ liabppetitboot.html). 106 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 121: Sensor Status

    Removing and replacing covers for the 9183-22X system Find information about removing and replacing covers for the IBM Power System IC922 (9183-22X) system. Removing the service access cover from a 9183-22X system To remove the service access cover, complete the steps in this procedure.
  • Page 122 1. Place the cover (A) on the system unit such that the alignment pins on the cover are aligned to the slots on the chassis. Slide the cover to the front of the system until the blue release latches (B) lock in to place. 108 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 123: Service And Operating Positions

    2. Fasten the cover screw (C) at the rear of the cover. Service and operating positions for the 9183-22X system Find information about placing the IBM Power System IC922 (9183-22X) server into the service or operating position. Placing a 9183-22X system into the service position To place a system into the service position, complete the steps in this procedure.
  • Page 124 When you place the system in the operating position, ensure that the cables at the rear of the system do not catch or bind as you push the system unit back into the rack. 110 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 125: Removing And Replacing Power Cords

    3. If wanted, replace the screws on either side of the system that secure the system to the rack. Removing and replacing power cords in the 9183-22X system Find information about removing and replacing power cords in the IBM Power System IC922 (9183-22X) server.
  • Page 126 Note: This system might be equipped with two or more power supplies. If the removing and replacing procedures require the power to be off, then ensure that all the power sources to the system are disconnected. 112 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 127 Figure 77. Removing the power cords from the system Connecting power cords to the 9183-22X system To connect a power cord, complete the steps in this procedure. Procedure 1. Open the rear rack door on the system unit that you are servicing. 2.
  • Page 128 Figure 79. Routing the power cord loop in the cable management arm 4. Close the rack door at the rear of the system. 114 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 129: Additional Procedures

    Additional procedures Removing and replacing a power supply in the 9183-22X system Find information about removing and replacing power supplies in the IBM Power System IC922 (9183-22X) server. Removing a power supply from the 9183-22X system To remove a power supply from the system, complete the steps in this procedure.
  • Page 130 116 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 131 DANGER: Multiple power cords. The product might be equipped with multiple AC power cords or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L005) CAUTION: Hazardous energy present. Voltages with hazardous energy might cause heating when shorted with metal, which might result in splattered metal, burns, or both.

  • Page 132: Replacing A Power Supply

    Slide the power supply into the system until the latch (B) locks in place. d) Repeat steps “2.a” on page 118 - “2.c” on page 118 for the other power supply. 118 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)
  • Page 133 Figure 81. Replacing the power supplies in the system 3. Reconnect the power cords to the power supplies. For instructions, see “Connecting power cords to the 9183-22X system” on page 113. Additional procedures 119...
  • Page 134 120 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 135: Notices

    Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead.

  • Page 136: Accessibility Features For Ibm Power Systems Servers

    This product uses standard navigation keys. Interface information The IBM Power Systems servers user interfaces do not have content that flashes 2 - 55 times per second. The IBM Power Systems servers web user interface relies on cascading style sheets to render content properly and to provide a usable experience.

  • Page 137: Privacy Policy Considerations

    Contact the vendor for accessibility information about its products. Related accessibility information In addition to standard IBM help desk and support websites, IBM has a TTY telephone service for use by deaf or hard of hearing customers to access sales and support services:...

  • Page 138: Electronic Emission Notices

    Electronic emission notices Class A Notices The following Class A statements apply to the IBM servers that contain the POWER9 processor and its features unless designated as electromagnetic compatibility (EMC) Class B in the feature information. When attaching a monitor to the equipment, you must use the designated monitor cable and any interference suppression devices supplied with the monitor.
  • Page 139 Tel: 914-499-1900 Der verantwortliche Ansprechpartner des Herstellers in der EU ist: IBM Deutschland GmbH Technical Relations Europe, Abteilung M456 IBM-Allee 1, 71139 Ehningen, Germany Tel: +49 (0) 800 225 5426 email: HalloIBM@de.ibm.com Generelle Informationen: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 / EN 55032 Klasse A.
  • Page 140 Proper cables and connectors are available from IBM-authorized dealers. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors 126 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 141: Class B Notices

    Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur von der IBM empfohlene Kabel angeschlossen werden. IBM übernimmt keine Verantwortung für die Einhaltung der Schutzanforderungen, wenn das Produkt ohne Zustimmung von IBM verändert bzw.
  • Page 142 This statement applies to products greater than 20 A, single phase. This statement applies to products greater than 20 A per phase, three-phase. Japan Voluntary Control Council for Interference (VCCI) Notice 128 Power Systems: Installing the System and Ordered Parts for the IBM Power System IC922 (9183-22X)

  • Page 143: Terms And Conditions

    Permissions for the use of these publications are granted subject to the following terms and conditions. Applicability: These terms and conditions are in addition to any terms of use for the IBM website. Personal Use: You may reproduce these publications for your personal, noncommercial use provided that all proprietary notices are preserved.
  • Page 144 IBM reserves the right to withdraw the permissions granted herein whenever, in its discretion, the use of the publications is detrimental to its interest or, as determined by IBM, the above instructions are not being properly followed.
  • Page 146 IBM®...
