Installation
3.8.2
Relay
config.
Terminals
Normally
6/7: Relay 1
Open
8/9: Relay 2
Normally
6/7: Relay 1
Closed
8/9: Relay 2
32

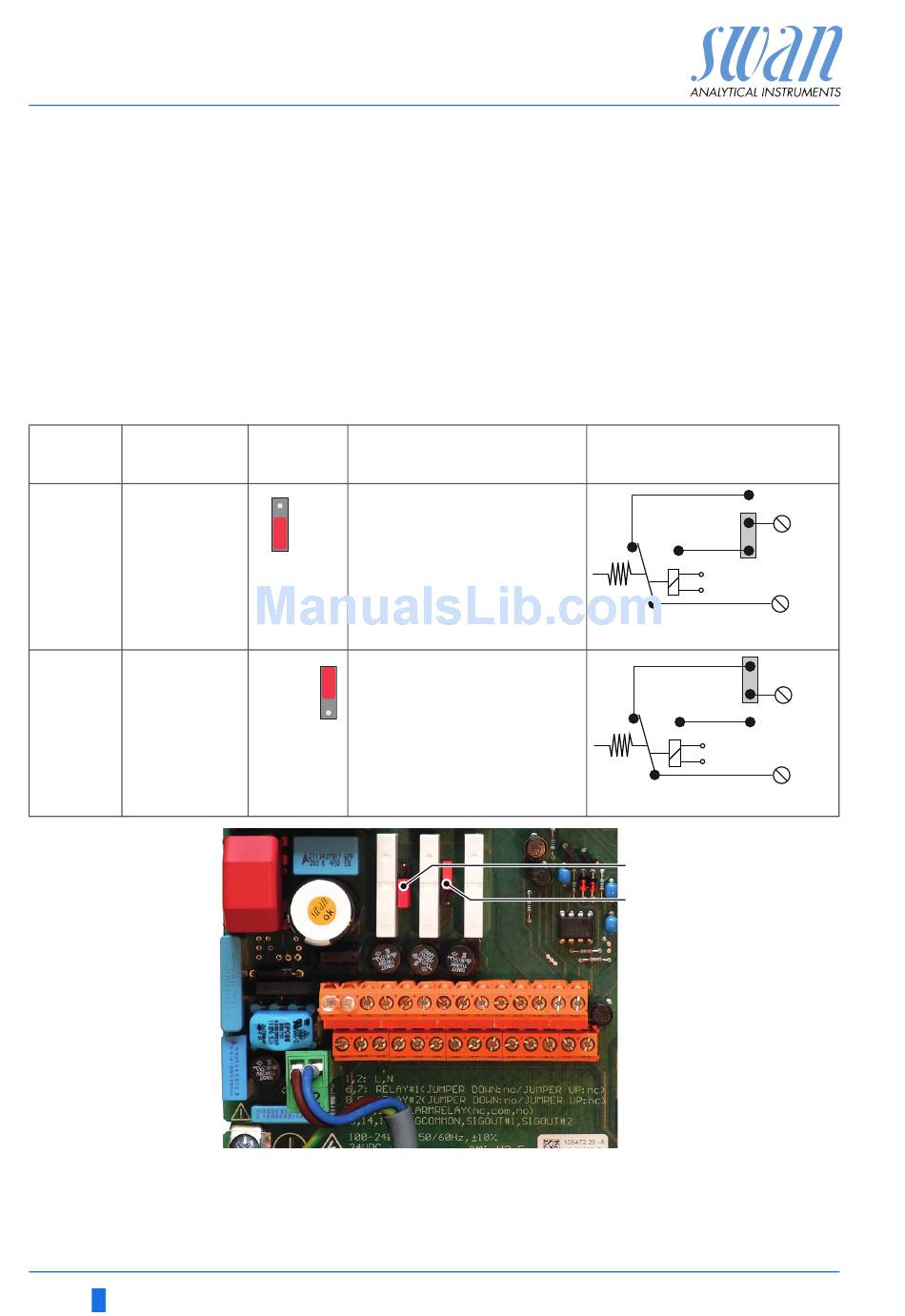

Relay 1 and 2

NOTICE: Max. load 1 A/250 VAC
Relay 1 and 2 can be configured as normally open or as normally
closed. Standard for both relays is normally open. To configure a
Relay as normally closed, set the jumper in the upper position.
NOTICE: Some error codes and the instrument status may
influence the status of the relays described below.
Jumper
pos.
Description
Inactive (opened) during
normal operation and
loss of power.
Active (closed) when a
programmed function is
executed.
Inactive (closed) during
normal operation and
loss of power.
Active (opened) when a
programmed function is
executed.
A
Jumper set as normally open (standard setting)
B
Jumper set as normally closed
For programming see menu Installation
Relay configuration
0V
0V
A
B
5.3.2 and 5.3.3, p.
A-96.250.581 / 220616
6
7
6
7
97.
