AMI Codes-II CC
Installation
3.6.1
A-96.250.581 / 220616

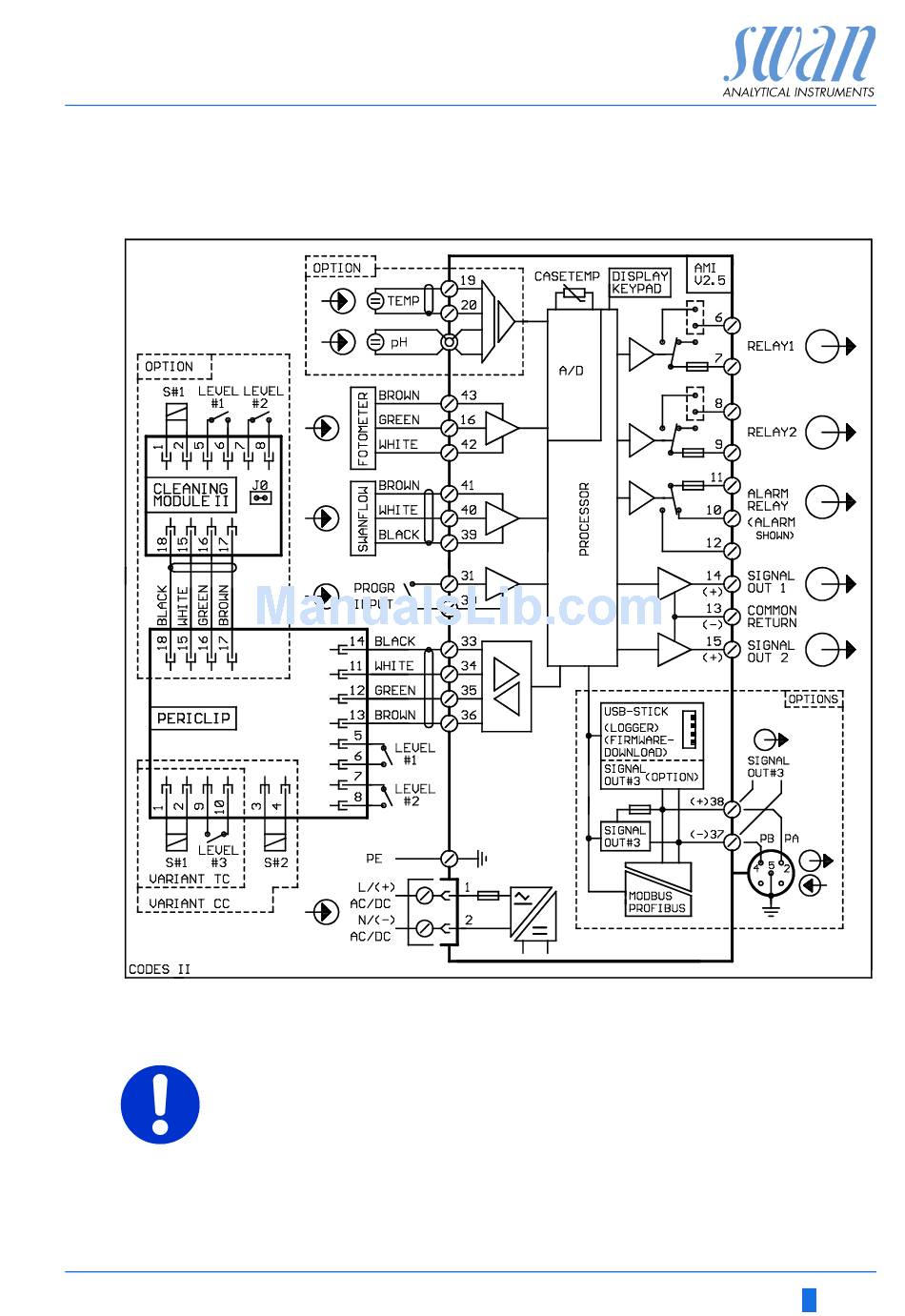

Connection Diagram
CAUTION
Use only the terminals shown in this diagram, and only for the
mentioned purpose. Use of any other terminals will cause short
circuits with possible corresponding consequences to material
and personnel.
29
