AMI Codes-II CC
Maintenance
Dismount
pump tubes
A-96.250.581 / 220616
The pump tube can easily be dismounted and mounted.
Proceed as follows:
1 Switch off the instrument according to instructions in
Operation for Maintenance, p. 45
2 Open the occlusion frame (B) by turning it counter-clockwise.
3 Remove the occlusion frame (B) from the rotor (C) by pulling
the complete occlusion frame out of the holder.
4 Dismount all reagent tubes from the occlusion frame.
5 Exchange the occlusion frame.
6 Install all reagent tubes.
7 Lock the occlusion frames.
8 Start fill system.

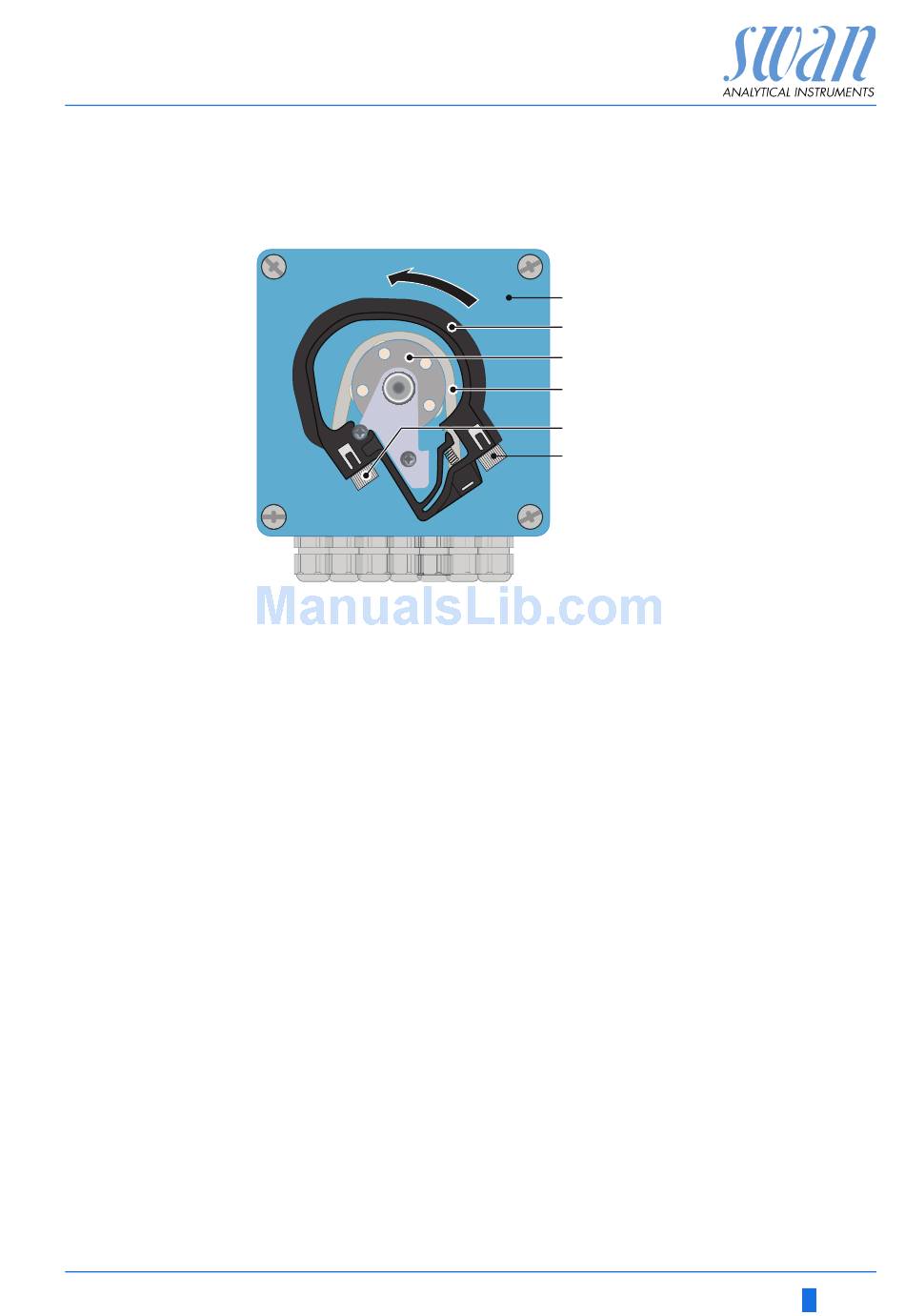

A Pump housing
B Occlusion frame open
A
C Rotor
B
D Pump tube
C
E Pump inlet
F Pump outlet
D
E
F
Stop of
