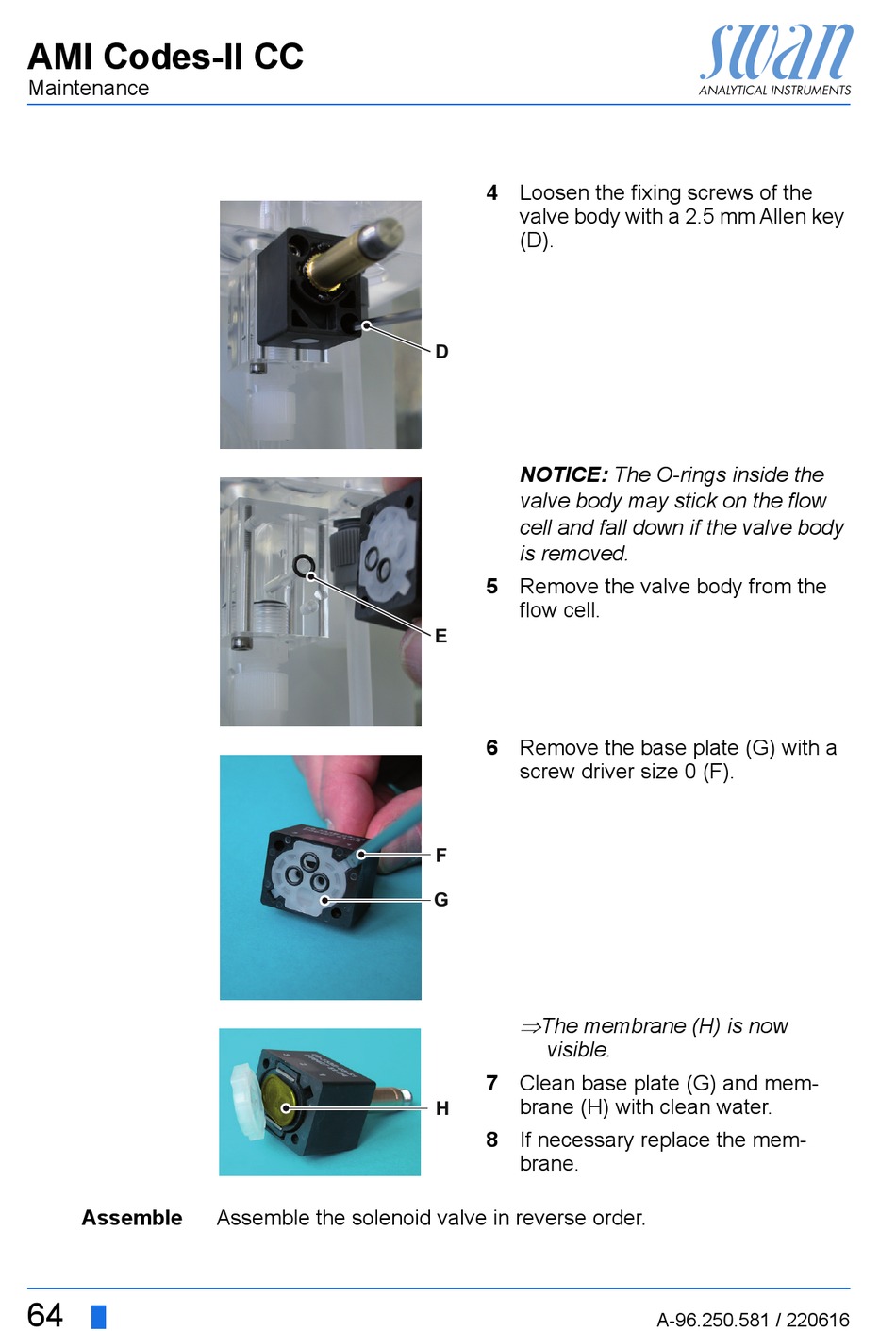

Swann AMI Codes-II CC Operator's Manual page 66

AMI Codes-II CC
Maintenance
Assemble
64
Assemble the solenoid valve in reverse order.
4 Loosen the fixing screws of the
valve body with a 2.5 mm Allen key
(D).
D
NOTICE: The O-rings inside the
valve body may stick on the flow
cell and fall down if the valve body
is removed.
5 Remove the valve body from the
flow cell.
E
6 Remove the base plate (G) with a
screw driver size 0 (F).
F
G

The membrane (H) is now
visible.
7 Clean base plate (G) and mem-
brane (H) with clean water.
H
8 If necessary replace the mem-
brane.
