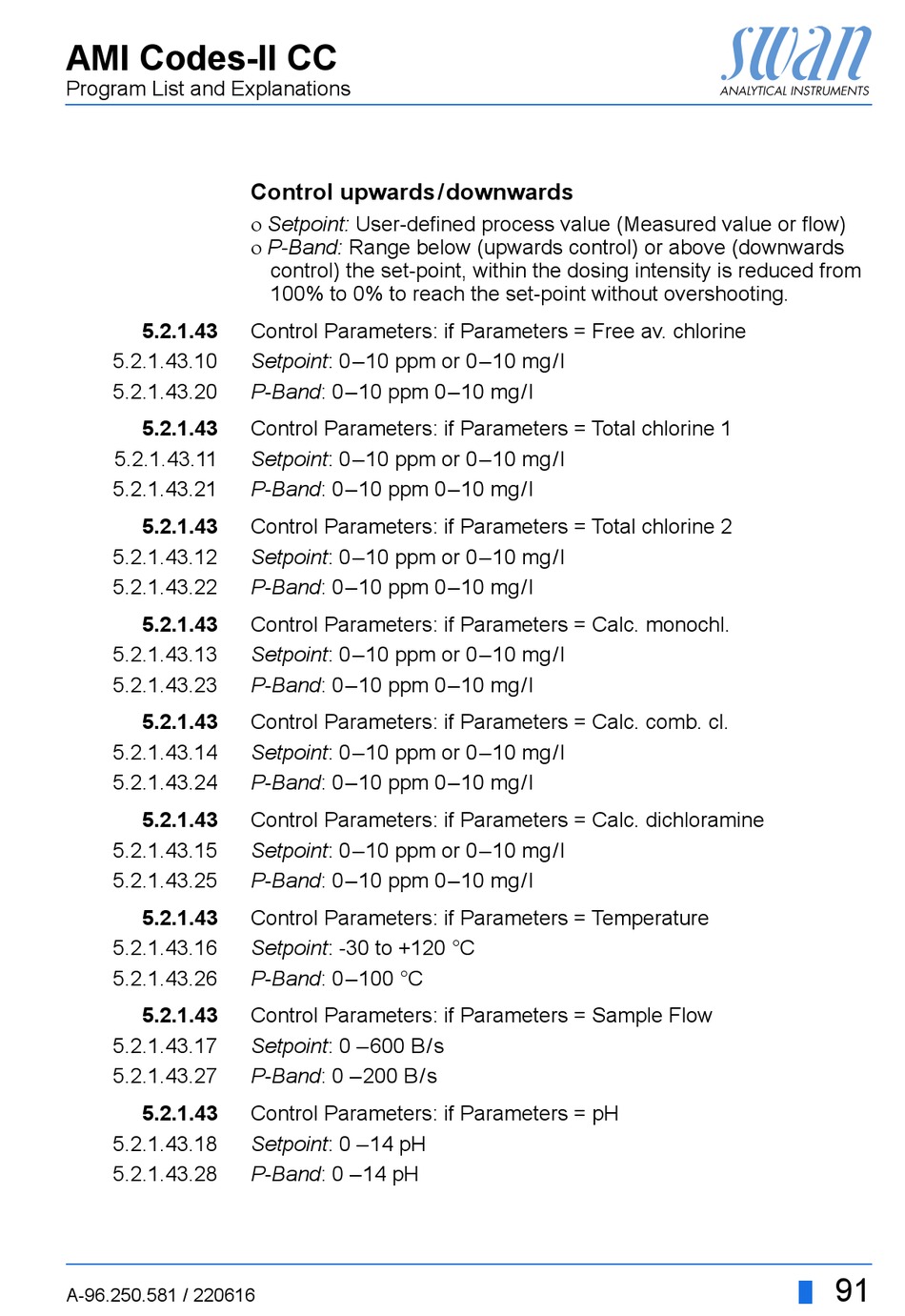

Swann AMI Codes-II CC Operator's Manual page 93

AMI Codes-II CC
Program List and Explanations
5.2.1.43
5.2.1.43.10
5.2.1.43.20
5.2.1.43
5.2.1.43.11
5.2.1.43.21
5.2.1.43
5.2.1.43.12
5.2.1.43.22
5.2.1.43
5.2.1.43.13
5.2.1.43.23
5.2.1.43
5.2.1.43.14
5.2.1.43.24
5.2.1.43
5.2.1.43.15
5.2.1.43.25
5.2.1.43
5.2.1.43.16
5.2.1.43.26
5.2.1.43
5.2.1.43.17
5.2.1.43.27
5.2.1.43
5.2.1.43.18
5.2.1.43.28
A-96.250.581 / 220616
Control upwards/downwards
Setpoint: User-defined process value (Measured value or flow)
P-Band: Range below (upwards control) or above (downwards
control) the set-point, within the dosing intensity is reduced from
100% to 0% to reach the set-point without overshooting.
Control Parameters: if Parameters = Free av. chlorine
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Total chlorine 1
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Total chlorine 2
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. monochl.
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. comb. cl.
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Calc. dichloramine
Setpoint: 0–10 ppm or 0–10 mg/l
P-Band: 0–10 ppm 0–10 mg/l
Control Parameters: if Parameters = Temperature
Setpoint: -30 to +120 °C
P-Band: 0–100 °C
Control Parameters: if Parameters = Sample Flow
Setpoint: 0 –600 B/s
P-Band: 0 –200 B/s
Control Parameters: if Parameters = pH
Setpoint: 0 –14 pH
P-Band: 0 –14 pH
91
