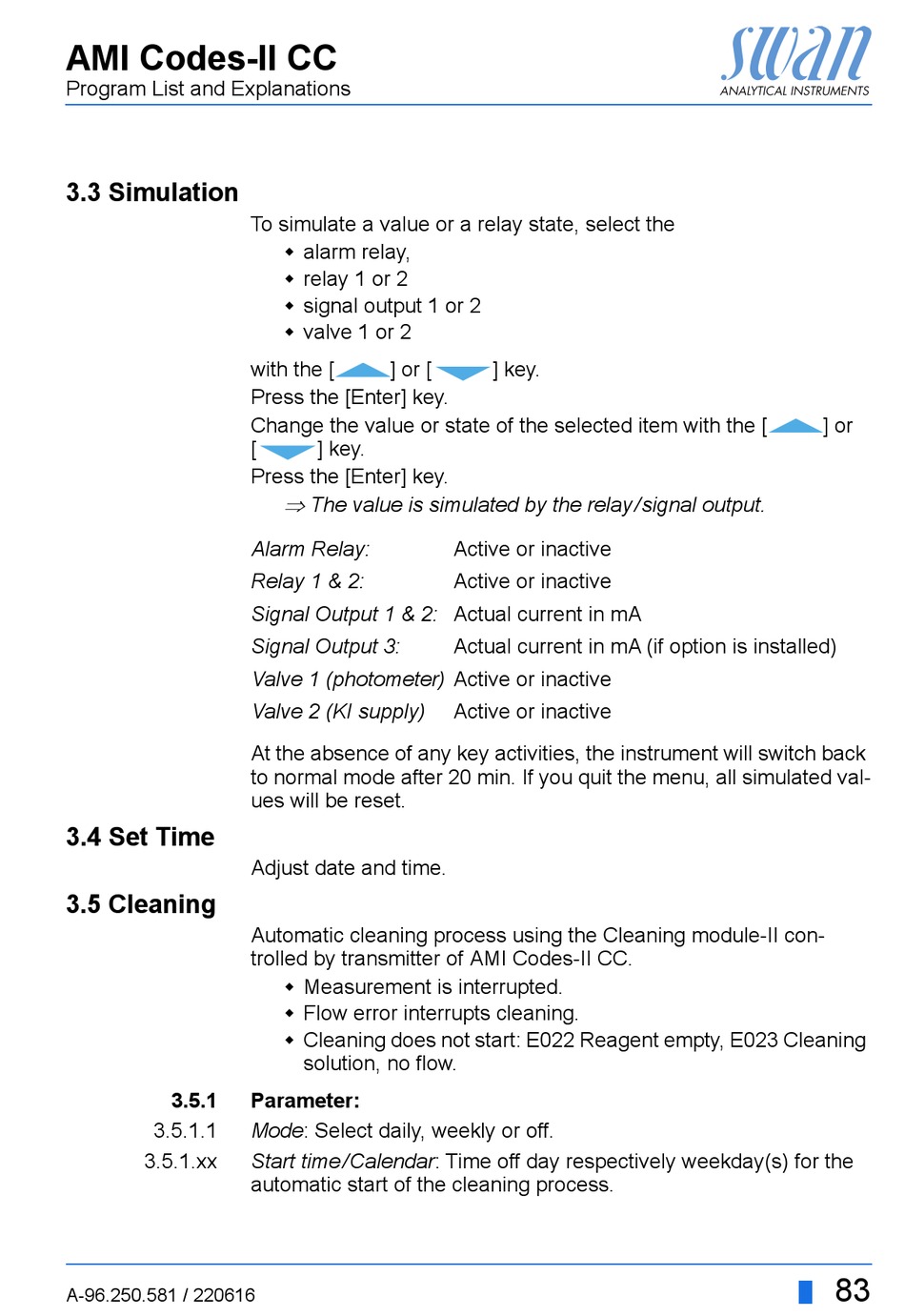

Swann AMI Codes-II CC Operator's Manual page 85

AMI Codes-II CC
Program List and Explanations
3.3 Simulation
3.4 Set Time
3.5 Cleaning
3.5.1
3.5.1.1
3.5.1.xx
A-96.250.581 / 220616
To simulate a value or a relay state, select the
 alarm relay,
 relay 1 or 2
 signal output 1 or 2
 valve 1 or 2
with the [ ] or [
Press the [Enter] key.
Change the value or state of the selected item with the [
[ ] key.
Press the [Enter] key.

The value is simulated by the relay/signal output.
Alarm Relay:
Relay 1 & 2:
Signal Output 1 & 2: Actual current in mA
Signal Output 3:
Valve 1 (photometer) Active or inactive
Valve 2 (KI supply)
At the absence of any key activities, the instrument will switch back
to normal mode after 20 min. If you quit the menu, all simulated val-
ues will be reset.
Adjust date and time.
Automatic cleaning process using the Cleaning module-II con-
trolled by transmitter of AMI Codes-II CC.
 Measurement is interrupted.
 Flow error interrupts cleaning.
 Cleaning does not start: E022 Reagent empty, E023 Cleaning
solution, no flow.
Parameter:
Mode: Select daily, weekly or off.
Start time/Calendar: Time off day respectively weekday(s) for the
automatic start of the cleaning process.
] key.
Active or inactive
Active or inactive
Actual current in mA (if option is installed)
Active or inactive
] or
83
