AMI Codes-II CC
Instrument Setup
4.3.
A-96.250.581 / 220616

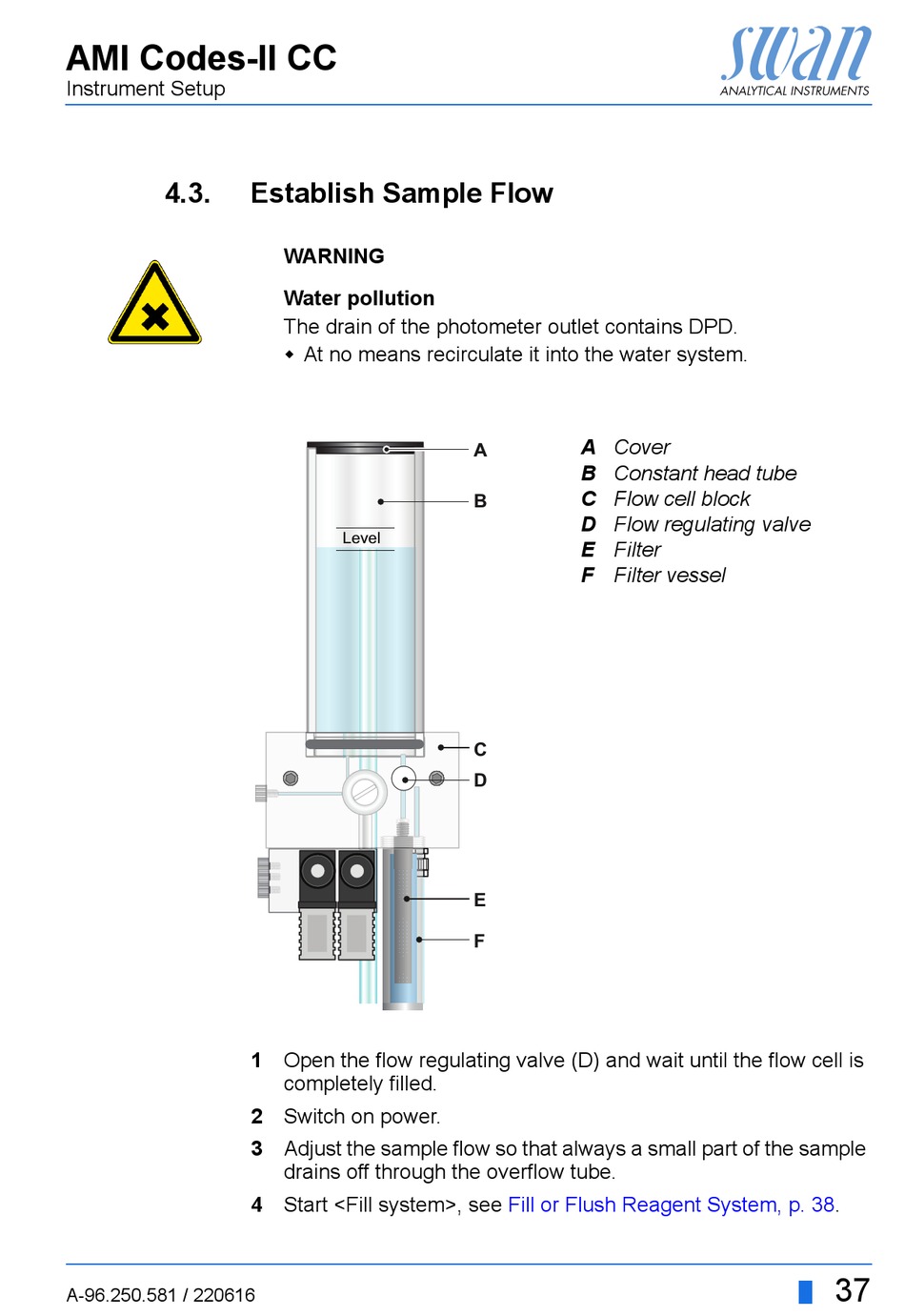

Establish Sample Flow

WARNING
Water pollution
The drain of the photometer outlet contains DPD.
 At no means recirculate it into the water system.
Level
1 Open the flow regulating valve (D) and wait until the flow cell is
completely filled.
2 Switch on power.
3 Adjust the sample flow so that always a small part of the sample
drains off through the overflow tube.
4 Start <Fill system>, see
A Cover
A
B Constant head tube
C Flow cell block
B
D Flow regulating valve
E Filter
F Filter vessel
C
D
E
F
Fill or Flush Reagent System, p. 38.
37
