AMI Codes-II CC
Maintenance
6.8.2
58

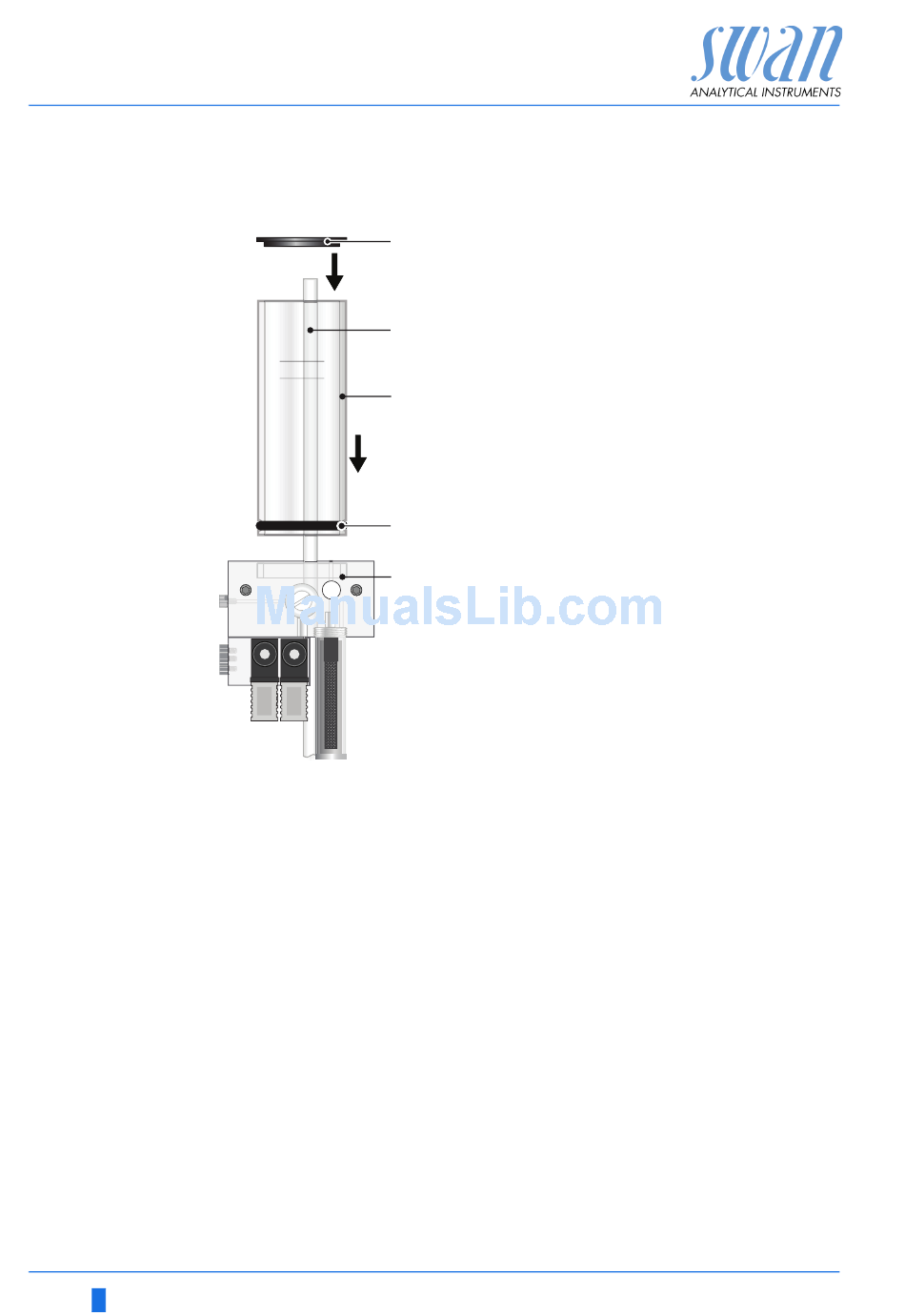

Assemble the Flow Cell

Level
1 Replace the gasket [D] before reassembling the flow cell.
NOTICE: A film of teflon paste (e.g. Fomblin from Solvay
Solexis) on the gaskets improves tightness and life time.
2 Push the overflow tube [B] through the flow cell block as far as it
reaches the drain.
3 Install the constant head tube [C] onto the flow cell block.
4 Put the cover onto the constant head.
5 Align the overflow tube with the upper level mark.
A Constant head cover
A
B Overflow tube
C Constant head tube
D Gasket
B
E Flow cell block
C
D
E
