Display - Swann AMI Codes-II CC Operator's Manual

AMI Codes-II CC
Operation
5.2.
A-96.250.581 / 220616

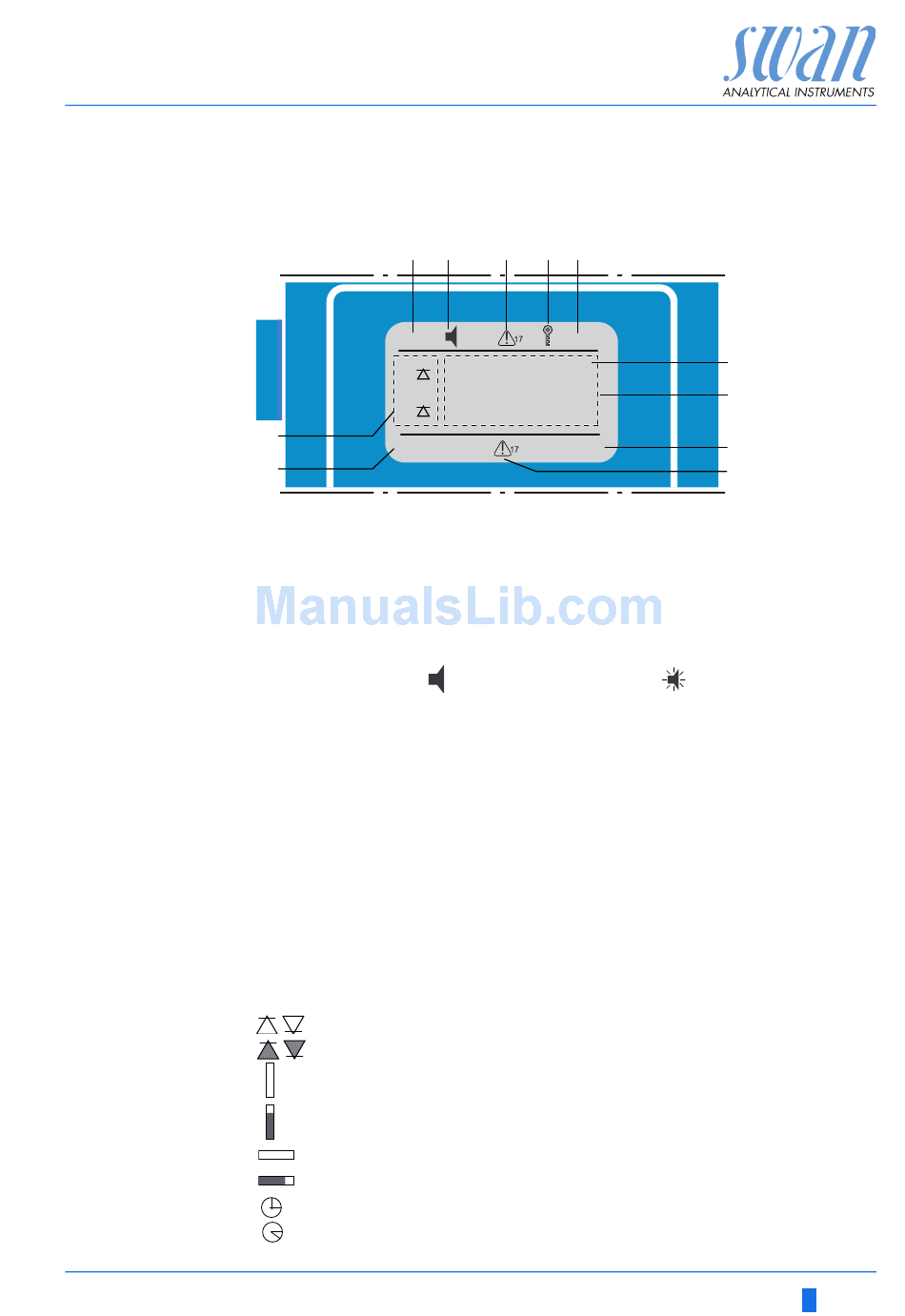

Display

A B
RUN
R1
R2
L
47 B/s
K
A RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status
of signal outputs).
B ERROR
C Reagent low, indicates remaining reagents in % (17% = 340 ml)
D Keys locked, transmitter control via Profibus
E Time
F Time stamp (time of the last valid measuring value)
G Process values
H Sample temperature (only with option pH)
I Cleaning solution low, indicates remaining cleaning solution in %
K Sample flow
L Relay status
Relay status, symbols
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
E
C D
12:56:02
0.22 12:55:35
fac
ppm
12:52:40
0.26
tc2
ppm
0.04 12:52:40
ccc
ppm
26.8 °C
Error
F
G
H
I
Fatal Error
41
