Product Description
Total chlorine 1
Total chlorine 2
A-96.250.581 / 220616

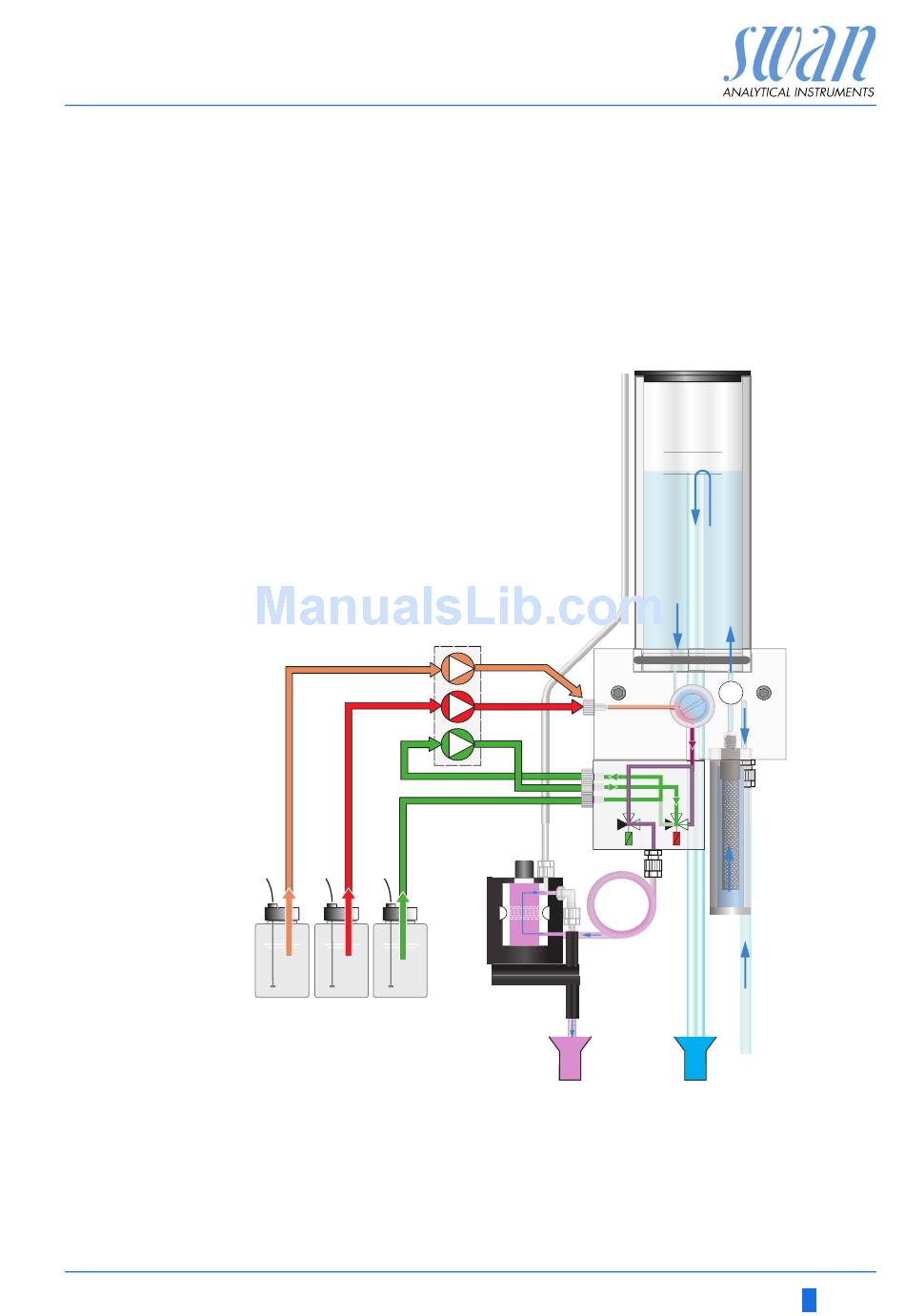

After the measurement of free available chlorine is finished the so-
lenoid valve [G] is energized for a short time and reagent [O] is
added to determine total chlorine 1.
To ensure the necessary reaction time of 2 min. for the determina-
tion of total chlorine 2, the sample flow is stopped by the solenoid
valve [J]. After the time has elapsed, total chlorine is measured and
solenoid valve [J] opens again.
M N O
After the measurement the sample flows through the outlet of the
photometer where it will be aerated through air inlet [I] to generate
bubbles. Then the sample flows through the bubble detector [L] into
the photometer drain [P].
