AMI Codes-II CC
Installation
3.9.
3.9.1
3.9.2
34

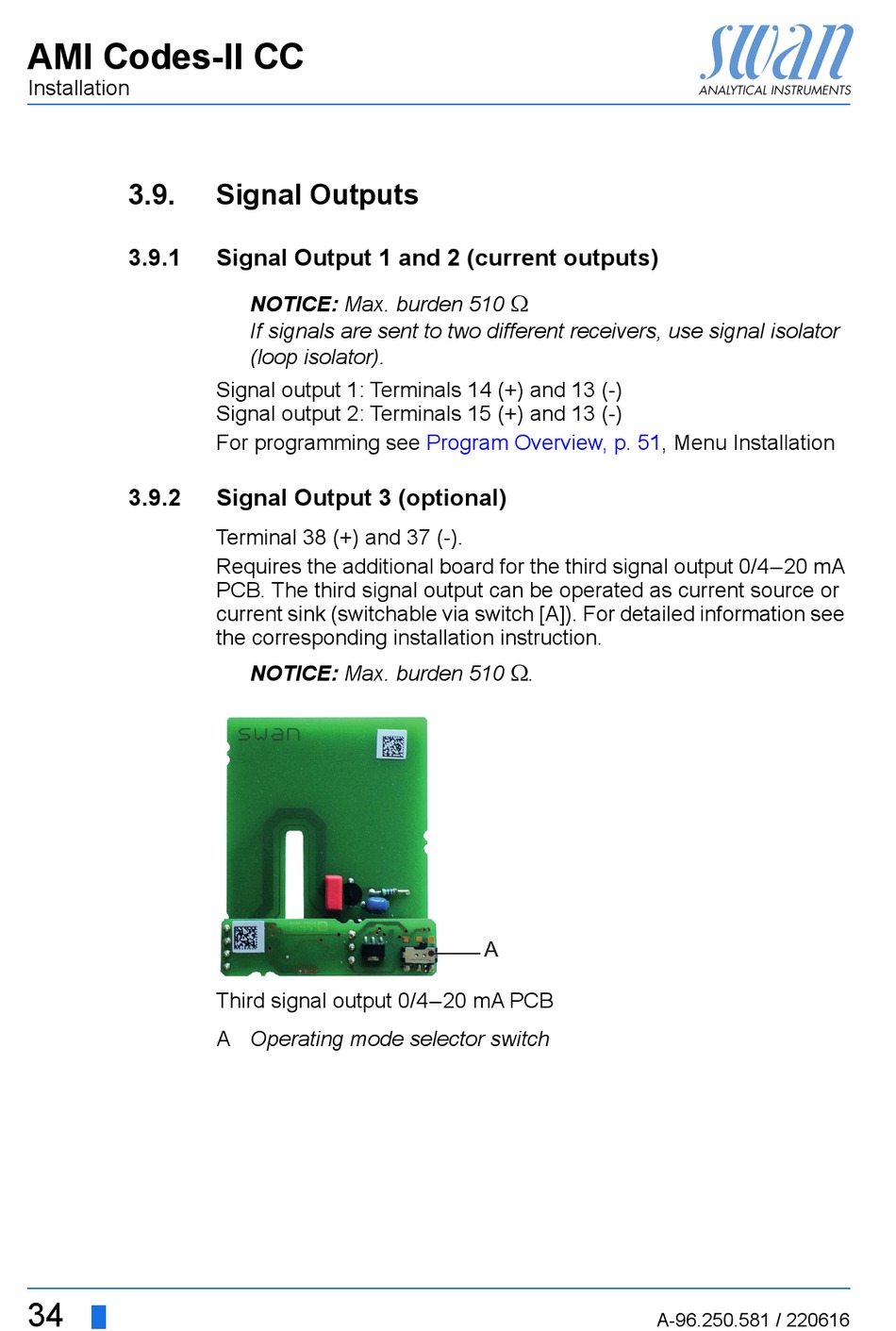

Signal Outputs

Signal Output 1 and 2 (current outputs)

NOTICE: Max. burden 510
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see

Signal Output 3 (optional)

Terminal 38 (+) and 37 (-).
Requires the additional board for the third signal output 0/4–20 mA
PCB. The third signal output can be operated as current source or
current sink (switchable via switch [A]). For detailed information see
the corresponding installation instruction.
NOTICE: Max. burden 510
Third signal output 0/4–20 mA PCB
A Operating mode selector switch

Program Overview, p.

.
A
51, Menu Installation
A-96.250.581 / 220616
