Field Service Ver. 1.0 Apr. 2007
B. Reinstallation procedure
[1]
[1]
6.3.28

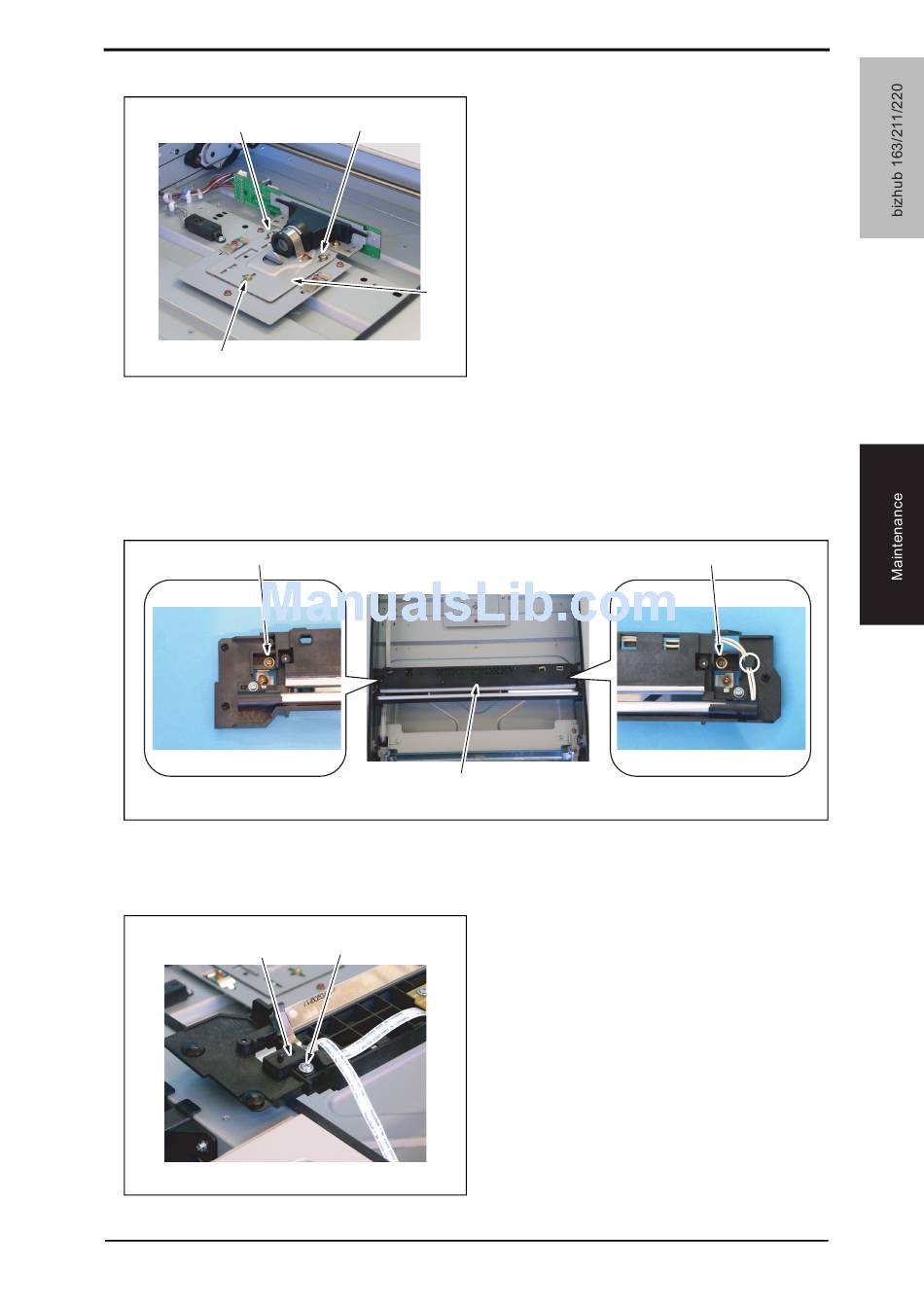

Scanner, exposure lamp, and inverter board (PU2)

1. Remove the original glass and original scanning glass.
See P.42
2. Remove two screws [1] (to which no red paint has been applied). Then, remove the
scanner assy [2] from the scanner drive cables.
[1]
NOTE
• Removal of the scanner assy leaves the front and rear scanner drive cables
attached with the fixing brackets.
[2]
[1]
[2]
A09AF2C580DA
[2]
[1]
A09AF2C582DA
1. Position the CCD unit [2] along the
marking line. Then, temporarily
secure three screws [1] at the center
of each of the screw slots.
2. Adjust the position of the CCD unit.
See P.146
3. Remove the screw [1], and remove
the cable holder [2].
6. Other
[1]
A09AF2C581DA
63
