Konica Minolta BIZHUB 163 Service Manual page 482

Field Service Ver. 1.0 Apr. 2007
3.2 Disassembly/Assembly/Cleaning list (Other parts)
3.2.1 Disassembly/Assembly parts list
No. Section
1 Unit
2
Exterior parts
3
4
Board and etc.
5
3.2.2 Cleaning parts list
No. Section
1 Feed section
2 Transport section
3.3 Disassembly/Assembly procedure
3.3.1 Paper feed unit
1. Remove the paper feed unit rear cover.
See P.7
[1]
Part name
Paper feed unit
Tray
Paper feed unit rear cover
PF drive board
Paper size detect board
Part name
Feed roller
Transport roller/rolls

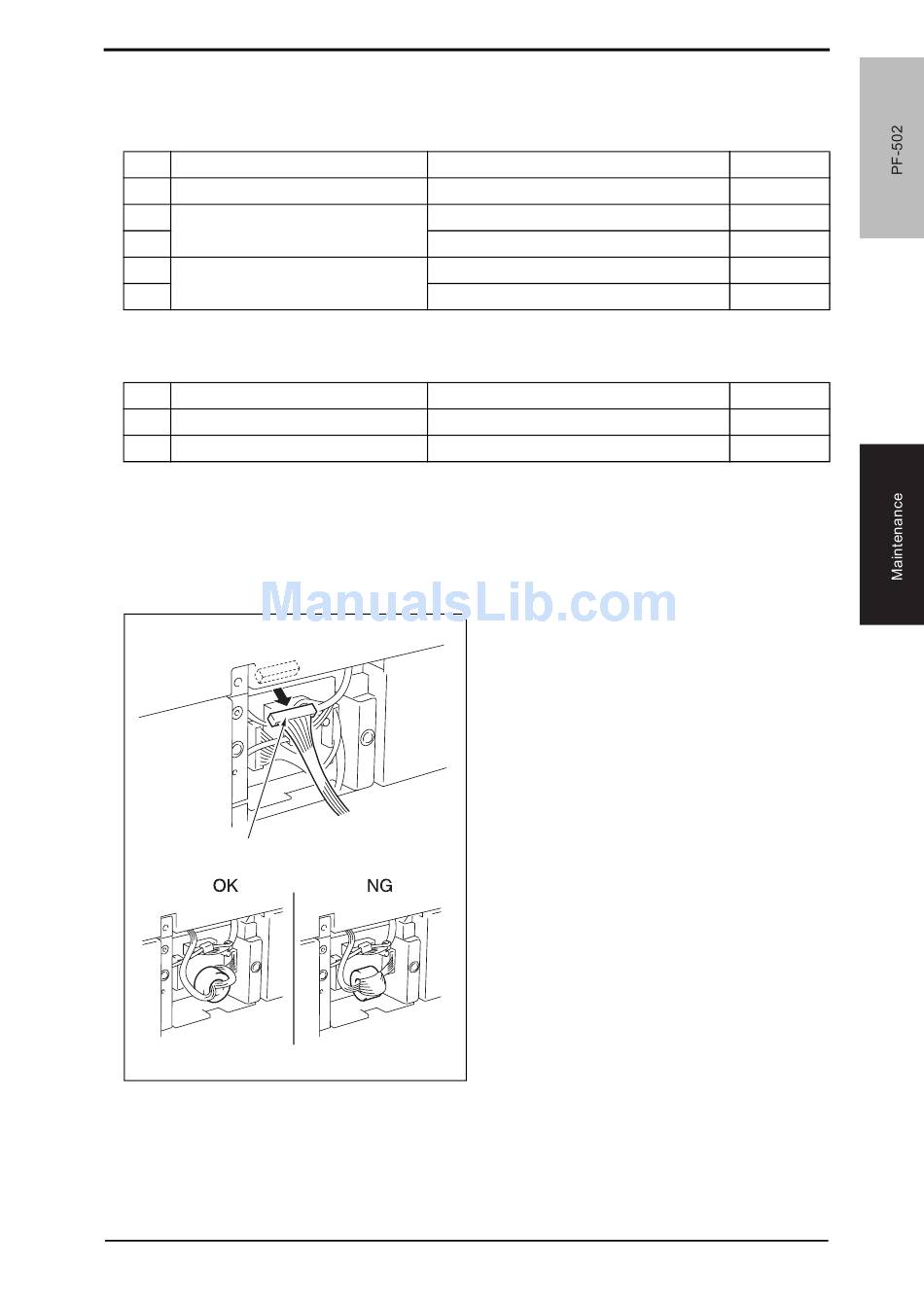

2. Disconnect the connector [1].
NOTE
• Make sure to install the ferrite core
to be parallel with the PF drive
board.
4686F2C502DA
3. Other
Ref. page
P.5
P.7
P.7
P.8
P.8
Ref. page
P.9
P.9
5
