Field Service Ver. 1.0 Apr. 2007
6.4.9

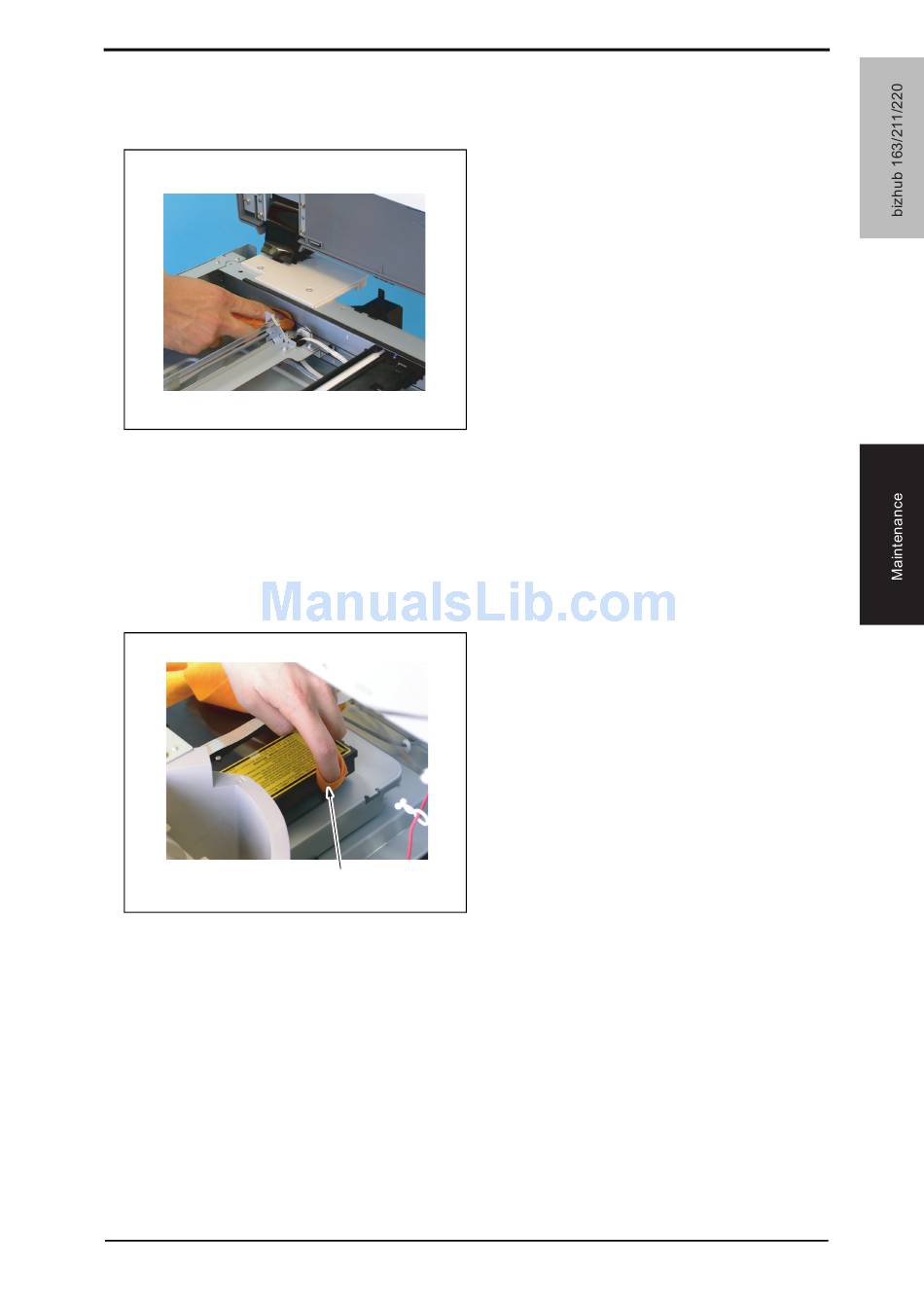

Scanner rails/bearings

1. Remove the original glass.
See P.42
6.4.10

PH window

1. Remove the front cover.
See P.43
2. Remove the left cover.
See P.45
3. Remove the paper exit tray.
See P.45
A09AF2C607DA
[1]
A09AF2C608DA
2. Using a soft cloth dampened with
alcohol, wipe the scanner rails and
bearings clean of dirt.
NOTE
• After the scanner rails and bearings
have been cleaned, apply oil (copier
lubricant A or FLOIL 947P).
4. Using a soft cloth dampened with
alcohol, wipe the PH window [1]
clean of dirt.
6. Other
91
