Field Service Ver. 1.0 Apr. 2007
[1]
[2]

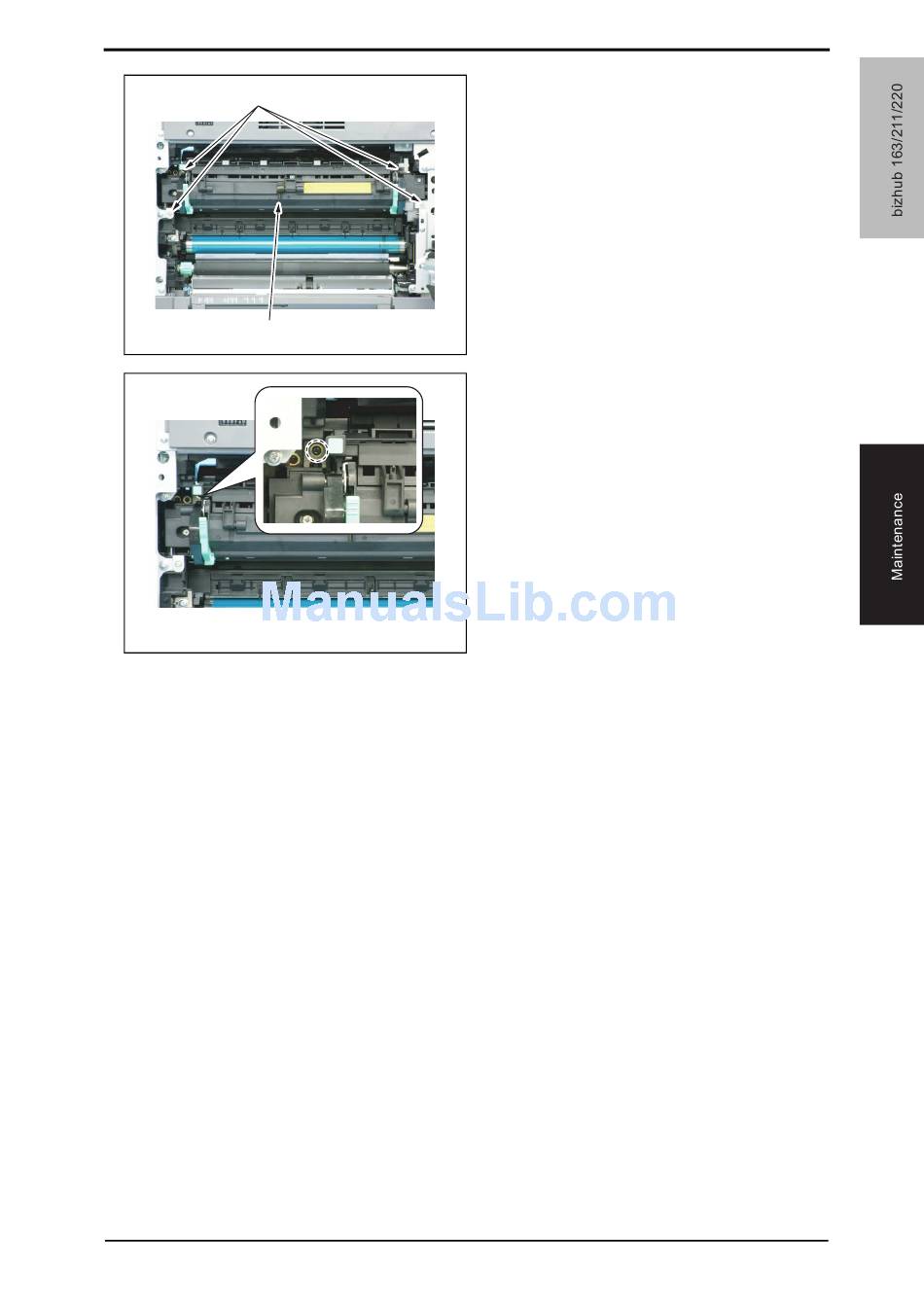

3. Open the right door.
4. Remove four screws [1], and remove
NOTE
When removing the fusing unit, make
sure of the correct type of screws that
must be removed.
A09AF2C010DA
NOTE
• When removing the fusing unit,
take care not to confuse the types
of screw.
A09AF2C011DA
3. Periodical check
the fusing unit [2].
31
