Installation of Control Cables

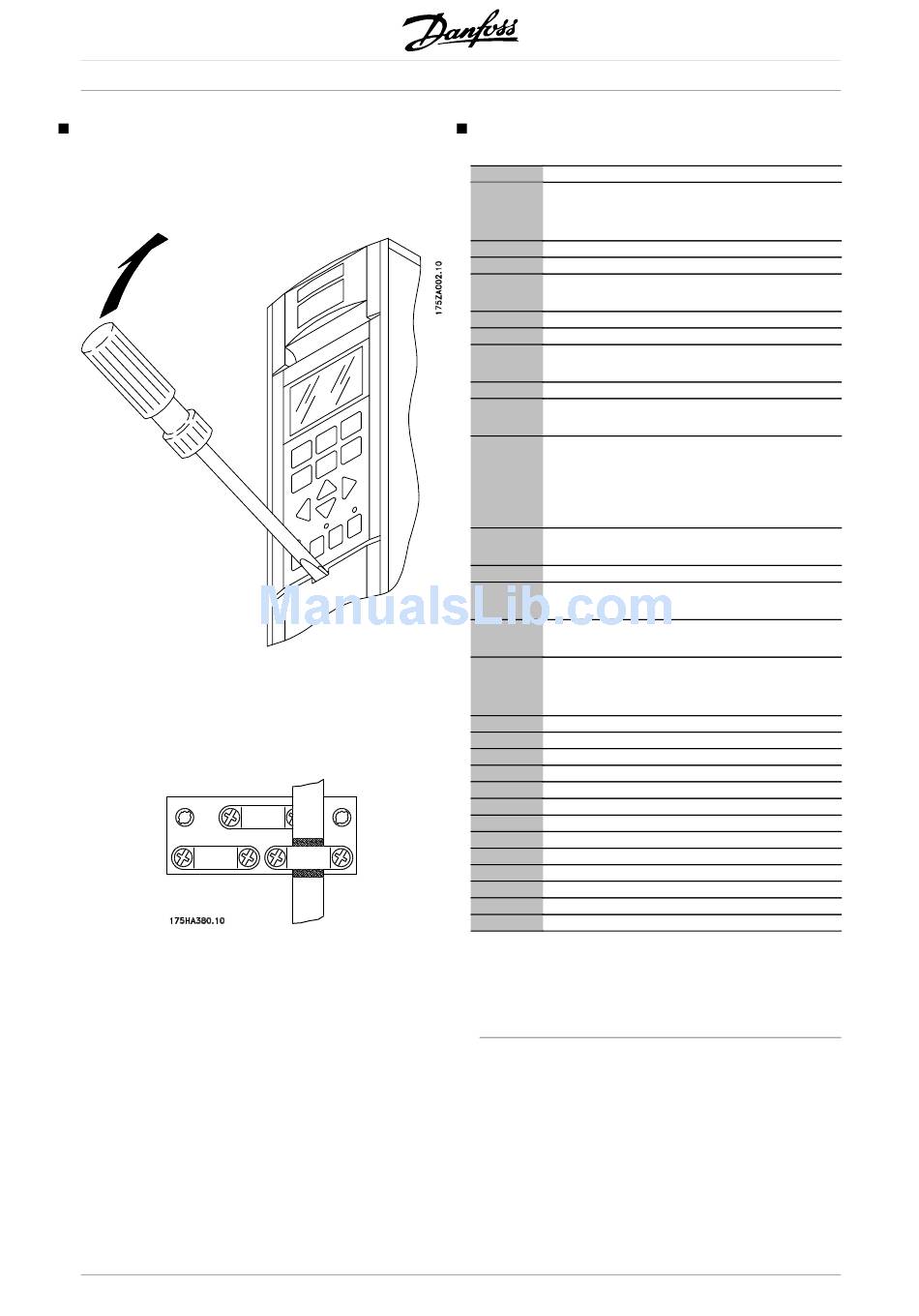

All terminals for the control cables are located under
the protective cover of the frequency converter. The
protective cover (see drawing) can be removed by
means of a pointed object - a screwdriver or similar.
Once the protective cover has been removed, the
actual EMC-correct installation can start. See drawings
in the section, EMC correct installation.
Connection of shield:
32
®
VLT

Terminal Designation

No. Function
04, 05 Relay output
+24 VDC. Supply to digital inputs Imax: 200 mA.
12, 13 No connection when external 24 VDC supply is
used and DIP SW4 off
20 GND for digital inputs (External 24 VDC connection)
16 Digital Input 1. Parameter 300 [1] {RESET}
Digital Input 2. Parameter 301 [7] {FREEZE
17
1)
REFERENCE}
18 Digital Input 3. Parameter 302 [1] {START}
19 Digital Input 4. Parameter 303 [1] {REVERSING}
Digital Input 5. Parameter 304 [0] {COASTING
27
1)
STOP}
29 Digital Input 6. Parameter 305 [5] {JOG}
Digital Input 7. Parameter 306 [11]
32
{Set-up MSB / SPEED UP}
Digital 8. Parameter 307 [1] {Set-up LSB / SPEED
1)
DOWN}
33
Digital Input. Hardware Coast. No parameter
37
influence. Disable output stage.
39 GND for analog and digital outputs
Digital Outputs for readout of speed, reference,
26, 46
current or torque
Analog Outputs for readout of speed, reference,
42, 45
current or torque
+10 VDC supply for analog reference inputs as
50 external potentiometers, thermistor or KTY sensor.
Imax <12 mA
55 GND for analog reference inputs
53 Analog reference input ±10 V
54 Analog reference input ±10 V
60 Analog reference input 0/4 - 20 mA.
68, 69 RS 485 Interface, serial communication.
49 +5 VDC supply for encoder.
47 GND for supply for encoder
2)
73 Channel A
74 Channel A inverted
2)
75 Channel B
76 Channel B inverted
77 Zero pulse from encoder (Z)
78 Zero pulse from encoder inverted
1) Factory settings. If other functionalities
see parameters 300 - 307
2) Usually for clockwise turning of encoder shaft.
