355 Terminal 26, digital output

(DO 26 FUNCTION)
Value:
See table in section Digital and relay outputs.
Function:
The digital outputs shift from 0 V to 24 V
when the output is true.
Description of choice:
See description in section Digital relay outputs.

356 Terminal 26, output, pulse scaling

(DO 26 FUNCTION)
Value:
1 - 50000 Hz
Function:
This parameter allows scaling of the pulse output signal.
Description of choice:
Set the desired value.

357 Terminal 42, Output minimum scaling

(OUT 42 SCAL MIN)
359 Terminal 45, Output minimum scaling
(OUT 45 SCAL MIN)
Value:
000 - 100%
Function:
These parameters are to scale the minimum output of
the selected analog signal on terminals 42 and 45.
Description of choice:

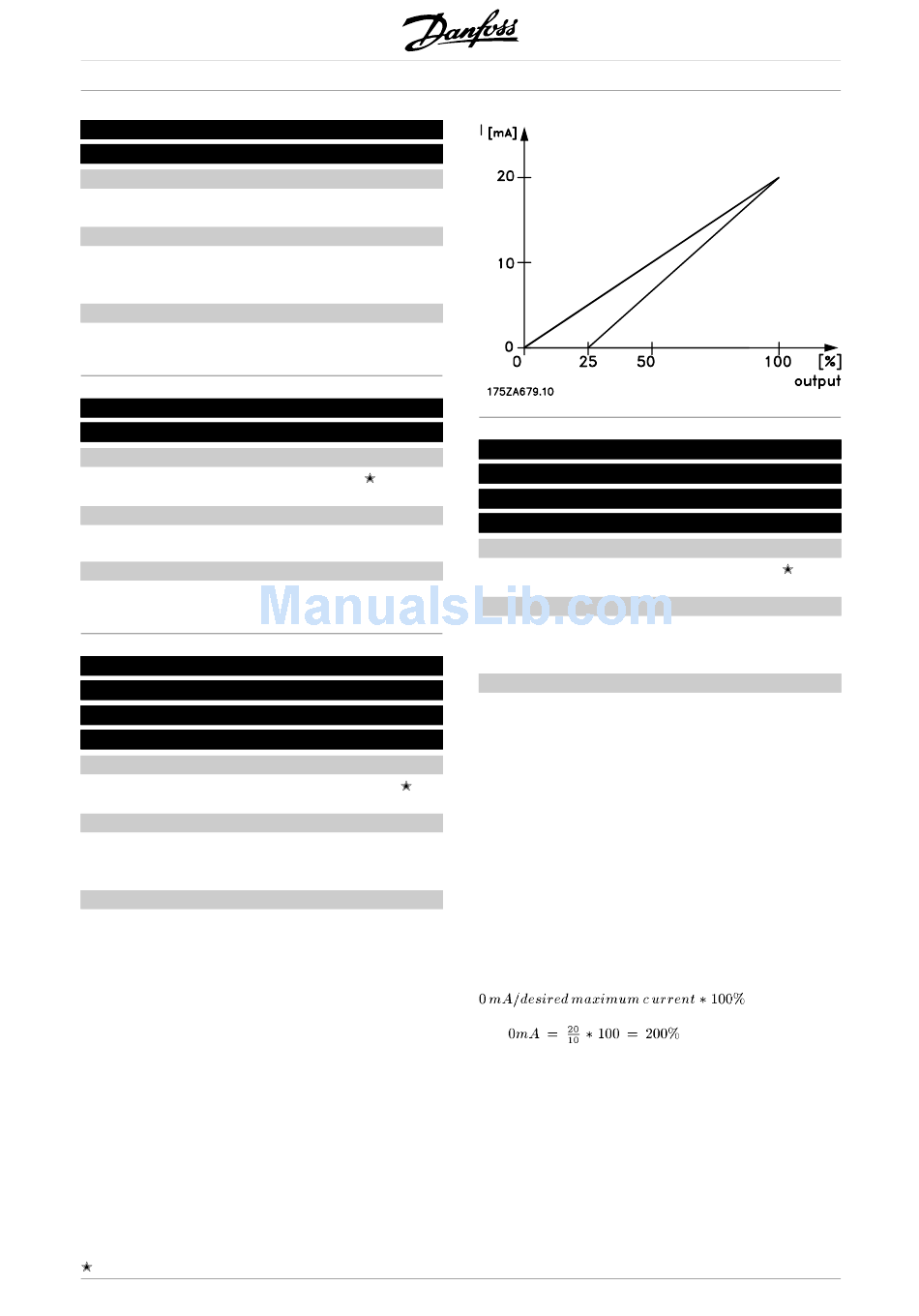

The minimum value is to be scaled as a percentage
of the maximum signal value, i.e. 0mA (or 0 Hz)
is desired at 25% of the maximum output value,
and then 25% is programmed.
The value can never be higher than the corresponding
setting of Output maximum scaling if this
value is below 100%.
= factory setting. () = display text [] = value for use in communication via serial communication port
100

358 Terminal 42, Output maximum scaling

(OUT 42 SCAL MAX)
5000 Hz
360 Terminal 45, Output maximum scaling
(OUT 45 SCAL MAX)
Value:
000 - 500%
Function:
These parameters are to scale the maximum output of
the selected analog signal on terminals 42 and 45.
Description of choice:
Set the value to the desired maximum value
of the current signal output.
Maximum value:
0%
The output can be scaled to give a lower current
than 20 mA at full scale or 20 mA at an output
below 100% of the maximum signal value.
If 20 mA is the desired output current at a value
between 0 - 100% of the full-scale output, program the
percentage value in the parameter, i.e. 50% = 20 mA.
If a current between 4 and 20 mA is desired at
maximum output (100%), the percentage value to
program in the drive is calculated as:
i.e.
MG.55.A6.02 - VLT is a registered Danfoss trademark
®
VLT 5000 FLUX
,
100%
