Please pay attention to the requirements
that apply to integration and field mounting
kit, see the below list. The information given
in the list must be observed to avoid serious damage
or injury, especially when installing large units.

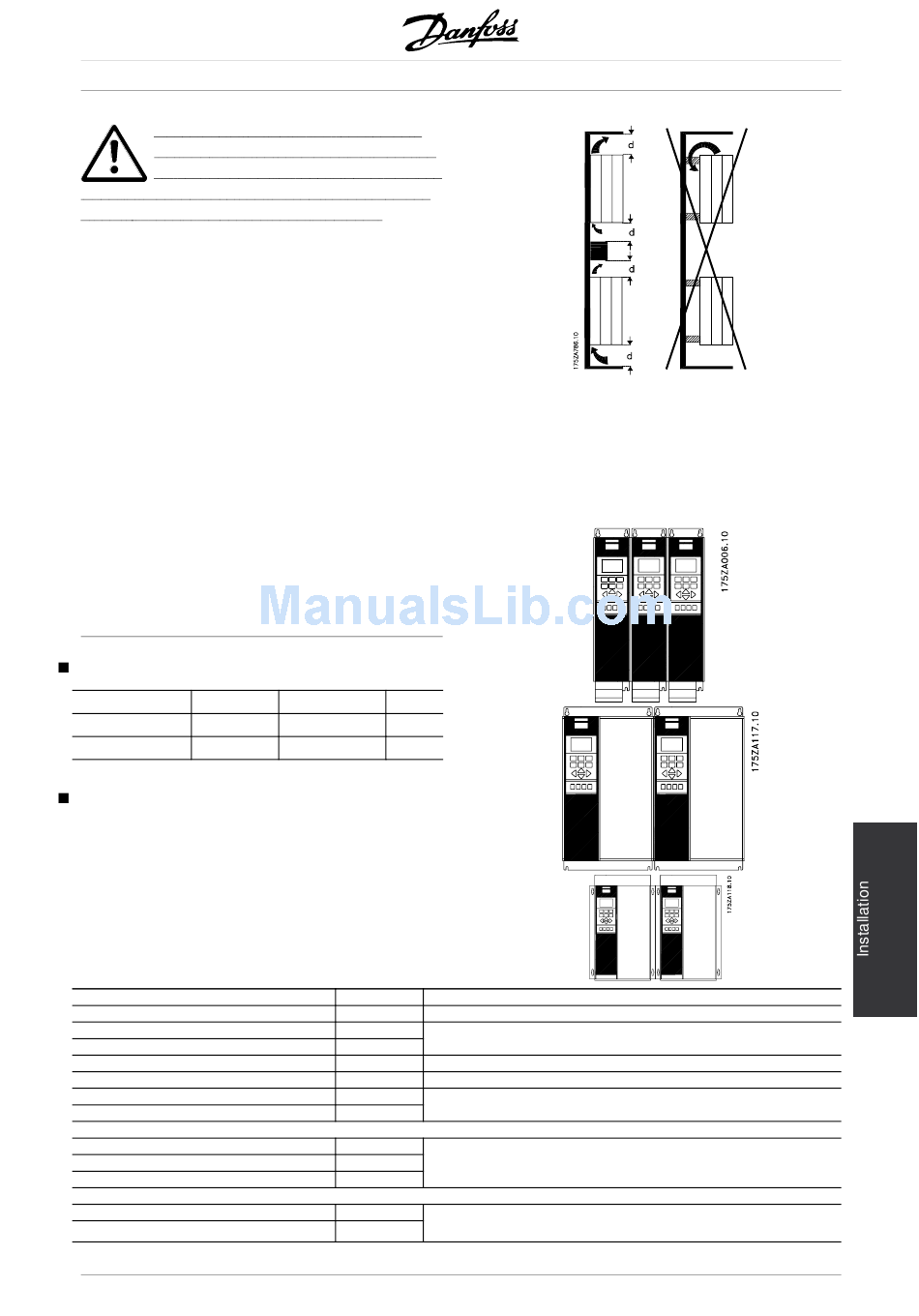

The frequency converter must be installed vertically.
The frequency converter is cooled by means of air
circulation. For the unit to be able to release its cooling
air, the minimum distance over and below the unit
must be as shown in the illustration below.
To protect the unit from overheating, it must be ensured
that the ambient temperature does not rise above the
max. temperature stated for the frequency converter
and that the 24-hour average temperature is not
exceeded. The max. temperature and 24-hour average
can be seen from the General Technical section.
Derating of the frequency converter is required by
ambient temperature in the range of 45° C - 55° C.
See the section Derating in the Design Guide.
Service Life Time of the frequency converter will
be reduced if no derating is carried out in the
above ambient temperature range.

Enclosure type

IP 00
Bookstyle -
Compact OK

Installation of VLT 5001-5302

All frequency converters must be installed in a
way that ensures proper cooling.
Cooling
Bookstyle
VLT 5001-5006, 200-240 V
VLT 5001-5011, 380-500 V
Compact (all enclosure types)
VLT 5001-5006, 200-240 V
VLT 5001-5011, 380-500 V
VLT 5008-5027, 200-240 V
VLT 5016-5062, 380-500 V
VLT 5072-5102, 380-500 V
VLT 5032-5052, 200-240 V
VLT 5122-5302, 380-500 V
MG.55.A6.02 - VLT is a registered Danfoss trademark
IP 20/Nema 1 IP 54
OK -
OK OK
d [mm] Comments
100
Installation on a plane, vertical surface (no spacers)
100
100
Installation on a plane, vertical surface (no spacers)
100
200
200 Installation on a plane, vertical surface (no spacers)
225
225 Installation on a plane, vertical surface (no spacers)
225
IP 54 filter mats must be changed when they are dirty.
®
VLT 5000 FLUX
All Bookstyle and Compact units require a minimum
space above and below the enclosure.

Side by side/flange by flange

All frequency converters can be mounted side
by side/flange by flange.
17
