Example 3:
Ex 1 Configuration
Reference term (53)
Min Ref signal (1V)
Max Ref signal (5 V)
Ref Range
Min Ref (20.000 rpm)
Max Ref (1500.000 rpm)
Ex 2 Configuration
Reference term (53)
Min Ref signal (0V)
Max Ref signal (10 V)
Ref Range
Ref Type
Max Ref (3000.000 rpm)
Preset Ref (-50%)
Output speed / direction
Ex 3 Configuration
Reference term (53)
Min Ref signal (0 V)
Max Ref signal (10 V)
Ref Range
Ref Type
Max Ref (3000.000 rpm)
Preset Ref (0%)
Output speed / direction
Catch-up/slow down and freeze reference via digital inputs 16. 17, 29. 32 or 33.
MG.55.A6.02 - VLT is a registered Danfoss trademark

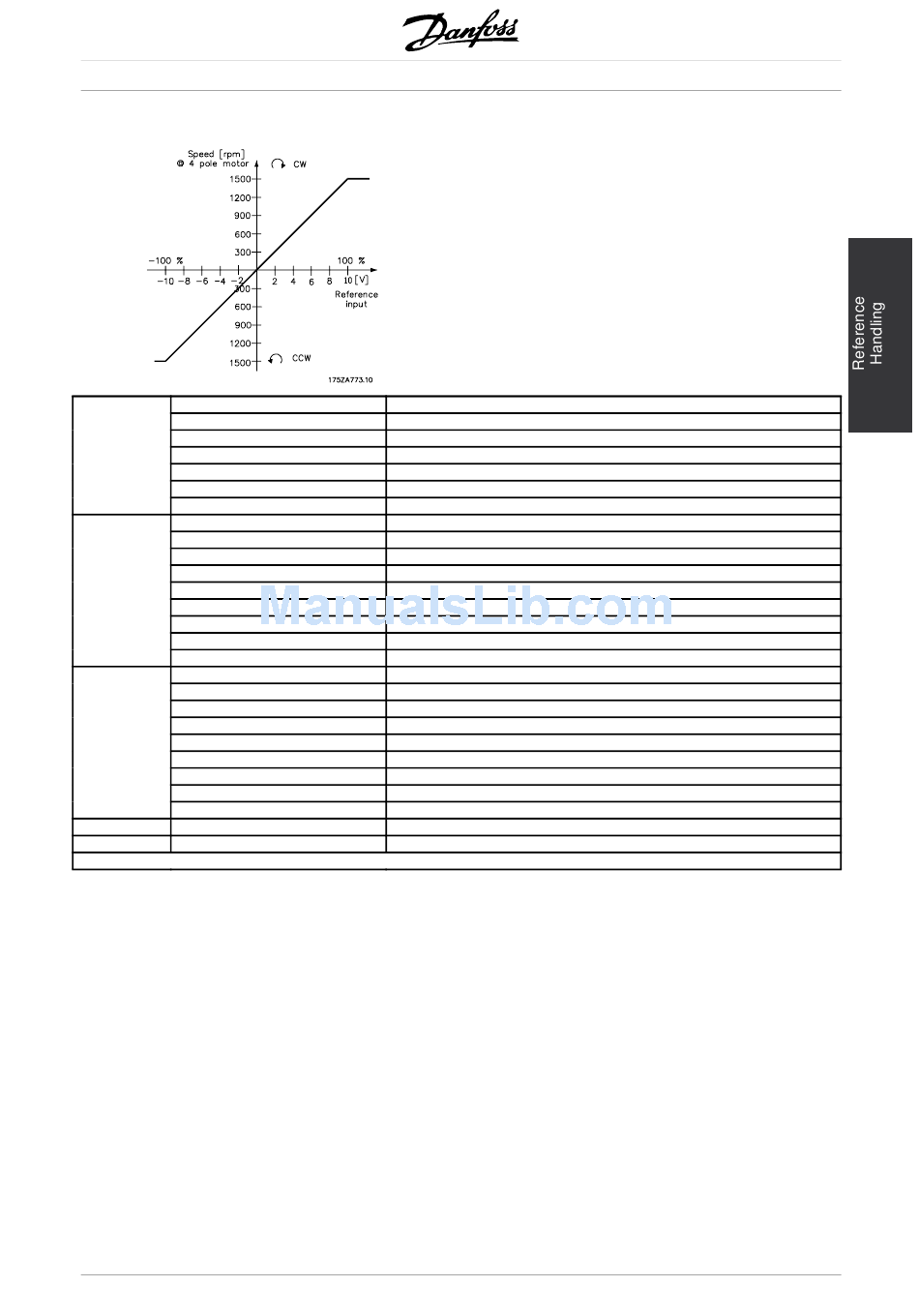

External reference signal from an external source =
-10 V (1500 rpm ccw) - +10 V (1500 rpm cw)
Configuration (parameter 100) = Speed
control closed loop.
Parameter 100 Config Mode [1]
Parameter 308 [1]
Parameter 309 [0.0...10.0 V]
Parameter 310 [Parameter 309...10.0 V]
Parameter 203 Min - Max [0]
Parameter 204 [-100,000.000...Parameter 205]
Parameter 205 [Parameter 204...100,000.000]
Parameter 100 Config Mode [0 or 5]
Parameter 308 [1]
Parameter 309 [0.0...10.0 V]
Parameter 310 [Parameter 309...10.0 V]
Parameter 203 -Max - + Max [1]
Parameter 214 Sum[0]
Parameter 205 [Parameter 204...100,000.000]
Parameter 215 [-100.00% -+100.00%]
Parameter 200 4500 rpm Both Direct [1]
Parameter 100 Config Mode [1]
Parameter 308 [1]
Parameter 309 [0.0...10.0 V]
Parameter 310 [Parameter 309...10.0 V]
Parameter 203 -Max - + Max [1]
Parameter 214 Sum[0]
Parameter 205 [Parameter 204...100,000.000]
Parameter 215 [-100.00% -+100.00%]
Parameter 200 4500 rpm Both Direct [1]
®
