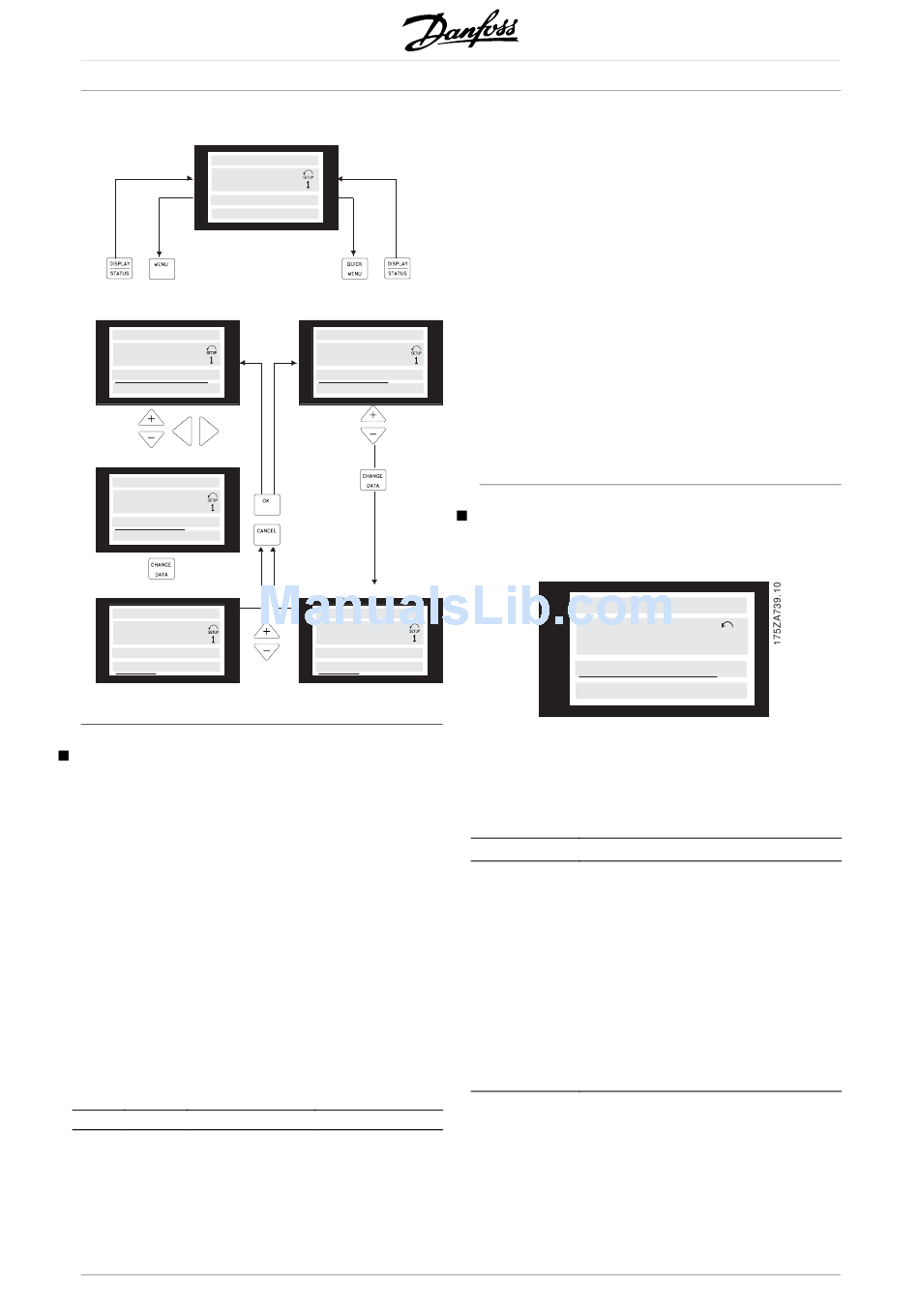

DISPLAY MODE
VAR 1.1 VAR 1.2 VAR 1.3
VAR 2
STATUS
MENU MODE
SPEED
1500 rpm
0 KEYB.&DISPLAY
Choice of Choice of
parameter group
DATA MODE
SPEED
1500 rpm
001 LANGUAGE
ENGLISH
DATA CHANGE MODE
SPEED
1500 rpm
001 LANGUAGE
ENGLISH
175ZA738.10

Quick Setup via Quick menu

The Quick Menu is used for set-up of closed
loop applications.
The Quick Setup starts with pressing the [QUICK
MENU] key, which brings out the following
read-out on the display:
Line 3: Parameter number and name
Line 4: Status/value of the first parameter
under Quick Setup
The first time the [Quick Menu] key is pressed after
the unit has been switched on, the read-outs always
start at pos. 1 - see table below.
The selection of a Quick Menu parameter is
effected by means of the [+/-] keys. The following
parameters are accessible:
Pos.: No.: Parameter:
1 001 Language
2 102 Motor output
3 103 Motor Voltage
4 104 Motor frequency
5 105 Motor current
6 106 Motor Speed
48
QUICK MENU MODE
QUICK MENU 1 OF 13
1500 rpm
001 LANGUAGE
ENGLISH
DATA CHANGE MODE
QUICK MENU 1 OF 13
1500 rpm
001 LANGUAGE
ENGLISH
Choice of
data value
Unit:
[kW]
[V]
[Hz]
[A]
[rpm]
®
VLT
7 107 Automatic Motor
Adaptation AMA
8 329 Encoder feedback
pulses/rev
9 351 Encoder direction
10 207 Ramp-up time 1
11 208 Ramp-down time 1
12 205 Max reference
13 417 Speed PID
proportional Gain
14 418 Speed PID integral
Time
15 221 Torque Limit Motor
mode
16 222 Torque Limit
Generating mode

Menu mode (Parameter setting)

The Menu mode is started by pressing the [MENU] key,
which produces the following read-out on the display:
SPEED
1500 rpm
0 KEYB.& DISPLAY
Line 3 shows the parameter group number and name.
Selection of parameter group is effected by
means of the [<>] keys.
The following parameter groups are accessible:
Group no. Parameter group:
0 Operation & Display
1 Load & Motor
2 References & Limits
3 Inputs & Outputs
4 Special functions
5 Serial communication
6 Technical functions
7 Application Options
8 Fieldbus Profile
9 Fieldbus Communication
When the desired parameter group has been
selected, each parameter can be chosen by
means of the [+/-] keys.
MG.55.A6.02 - VLT is a registered Danfoss trademark
5000 FLUX
[ppm]
[sec]
[sec]
[rpm]
[ms]
[%]
[%]
SETUP
1
