INSTALLATION AND START-UP

Electrical connection

Verify that the electrical specifications on the nameplate are compatible with the operating conditions of the
area where you will install the machine.
This machine must be connected to a earth grounded wall socket. Ensure that the grounding system is
sufficient and confirms with local regulations.
This machine must be connected to an electrical supply protected by a circuit breaker appropriate for the
power consumption of the machine, specified on its nameplate.
A residual current circuit breaker must be installed in accordance with local regulations.
Ensure that the power rating of the installation location and the electrical system are suitable for the power
demands of the machine.
Do not use an extension cord, plug adapter or multi-socket device to power this machine.
DANGER!
If the power cable or plug is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified person to avoid

Pressure and temperature

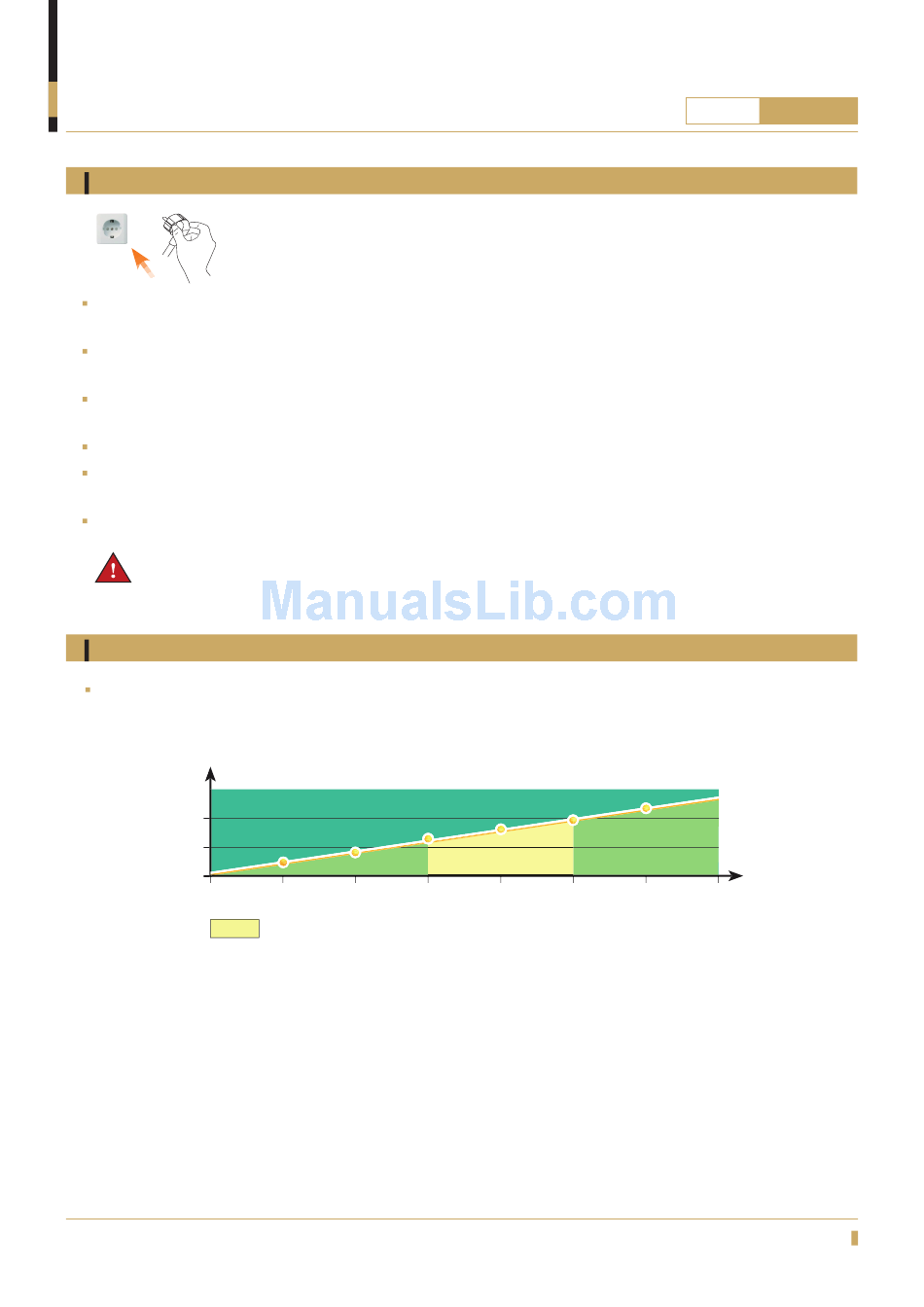

Boiler pressure is directly related to water temperature. The chart below demonstrates pressure
increase as a result of temperature rise:
C
O
125
120
115
110
This machine must be connected to an earth grounded wall socket. See page 5 of
this manual for electrical specifications.
SERIOUS INJURY OR DEATH!
Pressure to temperature relationship within boiler
0.7 0.8 0.9
Standard pressure and temperature
1.0 1.1 1.2
QUARTZ
ONE TOUCH
BAR
9
