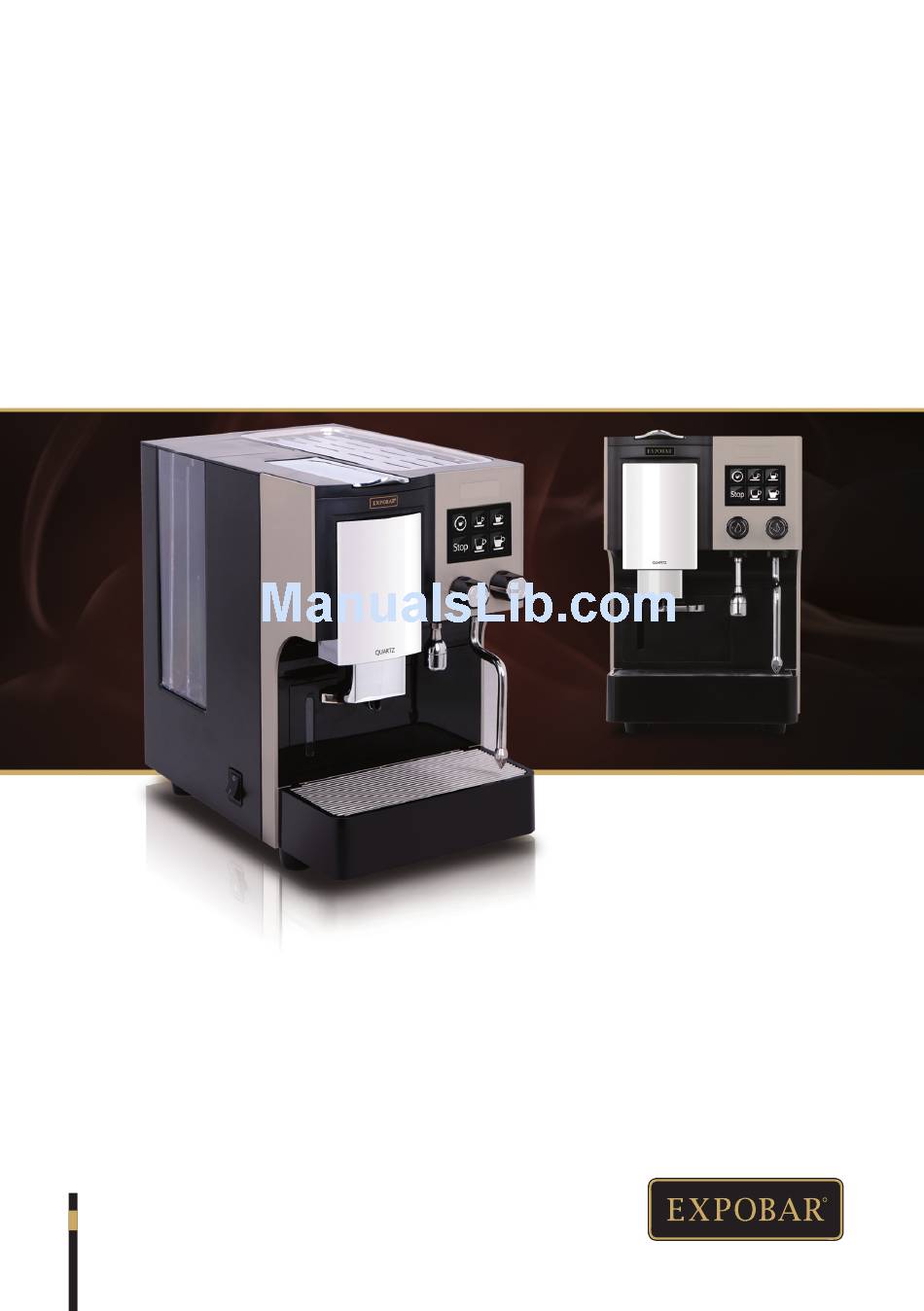

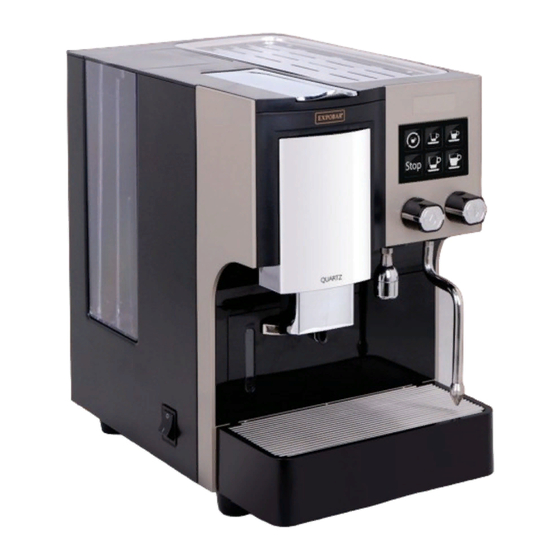

  • Page 1 QUARTZ USER MANUAL UM_EN Part No.: C*70000275EN_02...

  • Page 2: Table Of Contents

    CONTENT QUARTZ CONTENT ..................................2 GENERAL ..................................3 Introduction ..................................3 Warnings ..................................... 3 Precautions ..................................3 Intended use ..................................3 Facts ..................................... 4 OVERVIEW OF COMPONENTS ........................5 Front view ................................... 5 INSTALLATION AND START-UP ........................6 Positioning................................... 6 Electrical connection ................................ 6 Drip tray drainage ................................

  • Page 3: General

    GENERAL QUARTZ Introduction Thank you for choosing the QUARTZ espresso machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference.

  • Page 4: Facts

    GENERAL QUARTZ Facts FACTS QUARTZ Drink selection options Capacitive keypad Brewing mechanism Yes, Capsule Temperature control PID regulation Used capsule drawer 15 capsules Energy saving mode Height, Width, Depth 399, 260, 410.5 mm Internal water tank Boiler volume 1.7 L...

  • Page 5: Overview Of Components

    OVERVIEW OF COMPONENTS QUARTZ Front view Cup shelf Tank lid Capsule group lever Internal water tank Capacitive keypad Water tap Steam tap Height adjustable outlet Capsule drawer Drip grid Power switch Drip tray Hot water outlet Steam wand...

  • Page 6: Installation And Start-Up

    INSTALLATION AND START-UP QUARTZ Positioning MIN. 10cm Position the machine on a flat and stable surface, away from water and sources of heat. It should be located in a dry environment, since excessive humidity will affect the machine. Do not cover the machine with plastic film or cloths.

  • Page 7: Starting The Machine When Connected To Internal Water Tank

    INSTALLATION AND START-UP QUARTZ Starting the machine when connected to internal water tank Fill the tank to the maximum level.(A) Connect the machine to the electricity supply. Switch on the machine at the power switch. It may be that when the machine is switched on, it goes into standby mode ‘Standby’...

  • Page 8: Operation

    OPERATION QUARTZ How to dispense a drink Lift up the lever for the group(A), place a cup Insert the capsule in the correct position as under the outlet(B). shown in the picture and push down the lever into locked position.

  • Page 9: Steaming And Frothing Milk

    OPERATION QUARTZ Steaming and frothing milk OPEN CLOSE Steaming Frothing To use the steam wand correctly, proceed as follows: Point the steam wand toward the drip tray. Slowly open the steam tap for around 2 seconds, a small jet of water and steam will emerge.

  • Page 10: Filling The Internal Water Tank

    OPERATION QUARTZ Filling the internal water tank For machines connected to a tank, if the water level of the tank reaches the minimum level while trying to dispense a drink, the brewing will stop and the LEDs on the keypad will begin to flash.

  • Page 11: Cleaning And Care

    CLEANING AND CARE QUARTZ Cleaning the capsule group To obtain the best performance of the capsule group, it is recommended to dispense 3-4 brews without a capsule at the end of the day. To do so, follow the steps below: Lift up the lever (the last capsule that has been used will fall into the capsule drawer).

  • Page 12: Maintenance Of The Machine

    CLEANING AND CARE QUARTZ Maintenance of the machine CAUTION! Avoid placing wet cups directly on the cup shelf, it may drip into the machine and cause machine damage. Dry the cups before putting them on the cup shelf. When raising and lowering the lever to insert a capsule, do so slowly.

  • Page 13: Programming

    PROGRAMMING QUARTZ Keypad Continuous brewing of coffee. Programmable drink buttons. Stop brewing coffee. Programming the drink volume To adjust the drink volume, proceed as follows: Insert an unused capsule into the group and close it. Press and hold button K5 for five seconds until the LED behind the button IMPORTANT! begins to flash.

  • Page 14: Possible Solutions

    POSSIBLE SOLUTIONS QUARTZ PROBLEM POSSIBLE CAUSE SOLUTION Check that the plug is correctly The plug is not correctly in- The machine does not start up plugged in and that the socket is serted into the power socket working correctly The machine does not brew Switch off the machine, use the hot coffee.

  • Page 15: Dimension Sketch

    DIMENSION SKETCH QUARTZ QUARTZ Model D (Min~ Max) QUARTZ 399 mm 260 mm 410.5 mm 63 mm ~ 115 mm 510.15 mm 590 mm...
  • Page 16 For the warranty to be valid, the conditions for maintenance must have been followed in accordance with our instructions, proper care must have been taken and any claim against the warranty must be sent without delay. The equipment in question may not be used while awaiting service if there is any risk that the damage or defect would worsen.
