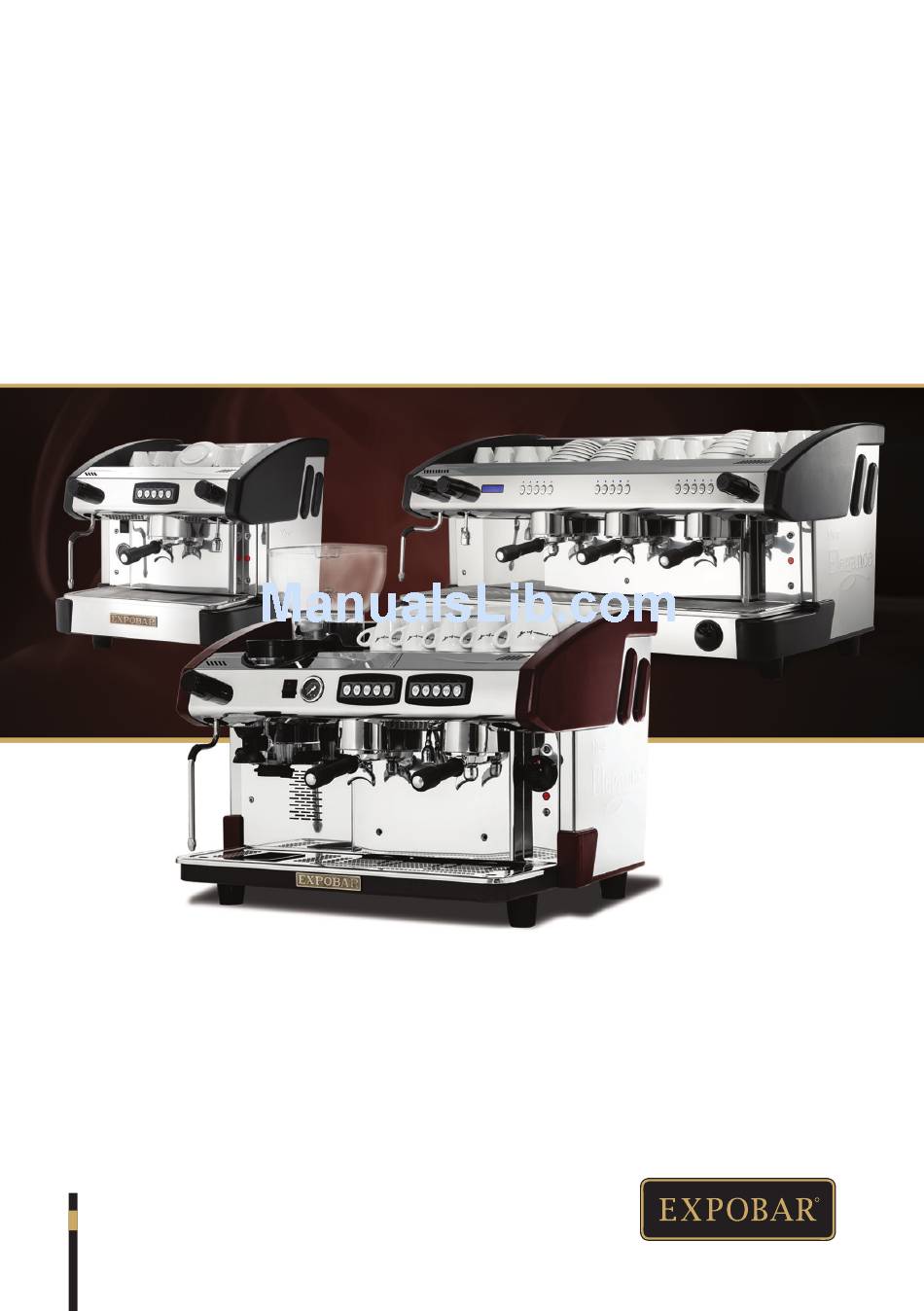

- Page 1 NEW ELEGANCE USER MANUAL UM_EN Date: 150106 Original instruction...
-
Page 2: Table Of Contents
GENERAL ..................................5 Introduction ...................................5 General instructions ................................5 Warnings .....................5 Precautions ....................6 Intended use ....................6 TECHNICAL SPECIFICATIONS ........................7 New Elegance 1GR ................................7 Accessories.....................................7 New Elegance Control 2GR ...............................8 Accesories ....................................8 New Elegance Display Control ............................9 Accesories ....................................9 OVERVIEW OF COMPONENTS ........................10 New Elegance MINI Control 1GR ..........................10... - Page 3 CONTENT New Elegance Water connection ................................21 Pressure and temperature ..............................21 Starting the machine ................................21 The porta-filter sets ................................22 Inserting the porta-filter into the group ........................22 OPERATION ................................23 Espresso brewing ................................23 Steaming and frothing milk with the turbo steamer ....................24 Hot water dispensing .................................25 CLEANING AND MAINTENANCE ......................26 Machine cleaning .................................26 Daily cleaning schedule ..............................26...
-
Page 4: Symbol Description
SYMBOL DESCRIPTION New Elegance Notification intensity levels There are four different levels of notification intensity within this manual, as identified by signal words DANGER, WARNING, IMPORTANT, and NOTE. The level of risk and imporance of the notification is determined by the following definitions. Always observe the warnings to ensure safety and prevent potential injury and product damage. -
Page 5: General
GENERAL New Elegance Introduction Thank you for choosing a New Elegance espresso machine. We hope you enjoy it ! Read the user manual before using the machine. Keep this manual close to hand for future This manual contains important instructions on reference. -
Page 6: Precautions
GENERAL New Elegance In case of emergency, (e.g., the machine catches units high of the same model. Do not place fire or becomes unusually hot or noisy), other heavy items on top of the box. disconnect the power immediately and turn off If the machine is likely to be exposed to the water supply. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS New Elegance New Elegance 1GR New Elegance SPECIFICATIONS MINI control MINI pulser MINI with grinder EAED-C32B-12AB Machine model, Standard 220-240V 1N~ 50-60 Hz 2800W EAED-C32B-22AB Machine model, Take Away 220-240V 1N~ 50-60 Hz 2800W Steam wand 1 unit... -
Page 8: New Elegance Control 2Gr
TECHNICAL SPECIFICATIONS New Elegance New Elegance Control 2GR New Elegance 2GR SPECIFICATIONS Control with MINI Pulser Control grinder EBED-C32B-12AB EBFE-D13B-12AB EBEE-D32B-12AB Machine model, Standard 220-240V 1N~ 380-415V 2N~ 220-240V 1N~ 50-60 Hz 50-60 Hz 50-60 Hz 2800W 3350W 3350W EBED-C32B-22AB EBEE-D12B-22AB EBEE-D41B-22AB Machine model, Take Away... -
Page 9: New Elegance Display Control
TECHNICAL SPECIFICATIONS New Elegance New Elegance Display Control New Elegance display control SPECIFICATIONS 3-4GR EBEE-D41B-12AB Machine model, Standard 220-240V 1N~ 50-60 Hz 3350W EBEE-D41B-22AB Machine model, Take Away 220-240V 1N~ 50-60 Hz 3350W Steam wand 2 units Hot water outlet 1 unit Temperature control PID regulation... -
Page 10: Overview Of Components
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance MINI Control 1GR Steam tap Drink buttons Hot water tap Brewing group Hot water outlet Steam wand Porta-filter Heater element lamp Boiler pressure gauge... -
Page 11: New Elegance Mini Pulser 2Gr
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance MINI Pulser 2GR Switch of right brewer Steam tap Hot water tap water outlet Boiler pressure gauge Brewing group Porta-filter Steam wand Heater element lamp... -
Page 12: New Elegance Mini Control 1Gr With Grinder
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance MINI Control 1GR with Grinder Grinder Drink Hot water Steam tap buttons Brewing group Hot water ON/OFF outlet switch Steam wand Porta-filter Boiler pressure gauge... -
Page 13: New Elegance Control 2Gr
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance Control 2GR Drink buttons Drink buttons for left brewer for right brewer Hot water Hot water Switch of Steam tap left brewer Switch of Steam tap right brewer Boiler pressure gauge Steam wand... -
Page 14: New Elegance Control 2Gr With Grinder
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance Control 2GR with Grinder ON/OFF Grinder switch Boiler Drink Hot water Steam tap pressure buttons gauge Brewing Hot water Steam wand group outlet Porta-filter Power switch... -
Page 15: New Elegance Control 3Gr
OVERVIEW OF COMPONENTS New Elegance Front view of the machine New Elegance Control 3GR Boiler pressure gauge Drink buttons Steam tap Steam tap Hot water tap ON/OFF switch Power switch Hot water outlet Heater element Steam wand Porta-filter Brewing group lamp... -
Page 16: Dimension Sketch
DIMENSION SKETCH New Elegance New Elegance MINI 1GR Model MINI control 1GR 510 mm 500 mm 600 mm 74 mm MINI pulser 1GR 510 mm 500 mm 600 mm 74 mm New Elegance MINI 2GR Model MINI control 2GR 510 mm 500 mm 600 mm 74 mm... -
Page 17: New Elegance Mini 1Gr With Grinder
DIMENSION SKETCH New Elegance New Elegance MINI 1GR with Grinder Model MINI control 1GR with 690 mm 500 mm 600 mm 74 mm grinder MINI pulser 1GR with grinder 690 mm 500 mm 600 mm 74 mm New Elegance Control 2GR Model Control 2Gr 510 mm... -
Page 18: New Elegance 2Gr With Grinder
DIMENSION SKETCH New Elegance with Grinder New Elegance 2GR Model Pulser 2Gr with grinder 670 mm 710 mm 600 mm 124 mm Control 2Gr with grinder 670 mm 710 mm 600 mm 124 mm Display control 2Gr with grinder 670 mm 710 mm 600 mm 124 mm... -
Page 19: Transport
TRANSPORT New Elegance Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet. -
Page 20: Electrical Installation
INSTALLATION New Elegance Electrical installation The machine should only be connected to the power supply by qualified personnel. The following safety instructions should be obeyed at all times: Ensure that the electrical requirements stated on the TECHNICAL SPECIFICATIONS (pages 7 - 8) match the specifications of the power supply at the outlet. -
Page 21: Water Connection
INSTALLATION New Elegance Water connection Connecting the machine to the domestic water supply must be performed by a qualified person. Purge at least 20 liters of water from the domestic water supply before connecting the machine to it to flush out any debris that may be in the plumbing sytem that would otherwise accumulate inside the boilers. -
Page 22: The Porta-Filter Sets
INSTALLATION New Elegance The porta-filter sets Filter basket locking spring Filter basket Porta-filter spring slot Porta-filter and filter basket for single espresso (7g) Porta-filter Porta-filter & filter basket for double espresso (14g) Inserting the porta-filter into the group Align the porta-filter's two flanges with Insert the porta-filter and rotate it counterclockwise the two slots in the group housing. -
Page 23: Operation
OPERATION New Elegance Espresso brewing Important: Always keep the porta-filter inserted in the group to keep it warm. This is important to maintain an optimal temperature when the espresso is dispensing. Unlock and remove the porta-filter Fill the filter basket with from the group head. -
Page 24: Steaming And Frothing Milk With The Turbo Steamer
OPERATION New Elegance Steaming and frothing milk with the turbo steamer Place the steam wand over the drip tray and Immerse the steam wand and termperature open the steam lever for a few seconds to sensor into the milk pitcher, making sure the allow condensed water to be ejected. -
Page 25: Hot Water Dispensing
OPERATION New Elegance Hot water dispensing Place a jug (or similar) under the hot water outlet. Open the hot water tap. Once the machine has dispensed the desired amount of water, close the hot water tap. WARNING! Never expose hands and fingers directly under the hot water outlet during operation to avoid scalding or serious burns. -
Page 26: Cleaning And Maintenance
CLEANING AND MAINTENANCE New Elegance Machine cleaning Important: To keep the machine looking and working like new, you should always follow the cleaning and care instructions provided in this manual. Always turn off the main power switch when cleaning the exterior of the machine. All external surfaces should be cleaned with a damp, lint-free cloth that will not scratch the machine. -
Page 27: Cleaning The Brewing Group And Porta-Filter
CLEANING AND MAINTENANCE New Elegance Cleaning the brewing group and porta-filter Unlock and remove the porta-filter from the group head. Place the blind gasket in the filter basket. Fill the blind basket with cleaning powder for espresso coffee machines. Lock the porta-filter into the group head. Activate the auto-cleaning program: When the machine is in idle mode, simultaneously press the Continuous and 1 Short... -
Page 28: Cleaning The Gasket And Shower Plate
CLEANING AND MAINTENANCE New Elegance Cleaning the gasket and shower plate Cleaning the gasket While making espresso, coffee grounds will naturally accumalate on the group’s sealing surface. Allowing an excessive amount of grounds to build up can prevent the the porta-filter from properly sealing to the group head. -
Page 29: Storage And Disposal
CLEANING AND MAINTENANCE New Elegance Additional handling of the machine Important: Always remove and insert the porta-filters Do not place wet cups directly on the gently. Never use excessive force to try to cup shelf. Allowing water to drip into the close the porta-filter. -
Page 30: Programming
PROGRAMMING New Elegance Buttons functions Here is some of the additional functions that the electronics offers: Volume control of four different espresso drinks per brewing group. Time-controlled hot water dispensing. (if available) Automatic filling and level control of the boiler. Automatic switch off of the heating element if not enough water. -
Page 31: Programming The Turbo Steamer Temperature
PROGRAMMING New Elegance Programming the coffee dosage Use the following steps to program the espresso brew dosages for each Brewing Group and Drink Button (each button can be programmed for a different dosing time if desired): 1. Place a Porta-filter filled with fresh espresso grounds in the Brewing Group. 2. -
Page 32: Programming Using The Display
PROGRAMMING USING THE DISPLAY New Elegance Machine status Machines equipped with a display include the following additional functions: Automatic daily on/off timer (stand-by function). Clock settings (current time and date). Promotional display. Number of coffees/infusions dispensed. Digital boiler-temperature display and control. PID-technology boiler-temperature control. -
Page 33: Accessing The Second Menu Level
PROGRAMMING USING THE DISPLAY New Elegance Accessing the second menu level Doses setting With the machine on, press the Continuous Dispensing button Select within 30s the Left-hand drink buttons and hold it down (for over 8 seconds) until the dose-programming menu is displayed. All the drink buttons lights fig. -
Page 34: Auto On/Off
PROGRAMMING USING THE DISPLAY New Elegance Auto On/Off After accepting the changes made in the “set clock” menu, pressing the 2 Auto On/Off Short Espressos button accesses the coffee machine’s auto on/off hh.mm programming menu (see fig. 09). fig. 9 To change the auto on/off time, increase/decrease the values (hours) using the 1 short espresso and 1 Long Espresso... -
Page 35: Messages And Alarms
MESSAGES AND ALARMS New Elegance Flow meter Fault in flow meter X / Gr. X Flow fault detected in counter X Time-out alarm Check that the machine is receiving water. Boiler filling up Probe unconnect Temperature sensor fault Service the machine. To disable the alarm and reset the counter: Service 999999999... -
Page 36: Troubleshooting
TROUBLESHOOTING New Elegance The following checks can be carried out by users once the machine has been turned off and disconnected from the power supply. For all other non-specified machine faults, disconnect the machine from the power supply and immediately contact authorised and qualified service personnel. Problem Possible cause Solution... - Page 37 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precautions have been taken, and warranty claim has been issued without delay. The affected equipment shall not be used while awaiting service if there is any risk that the damage or defect could worsen.
