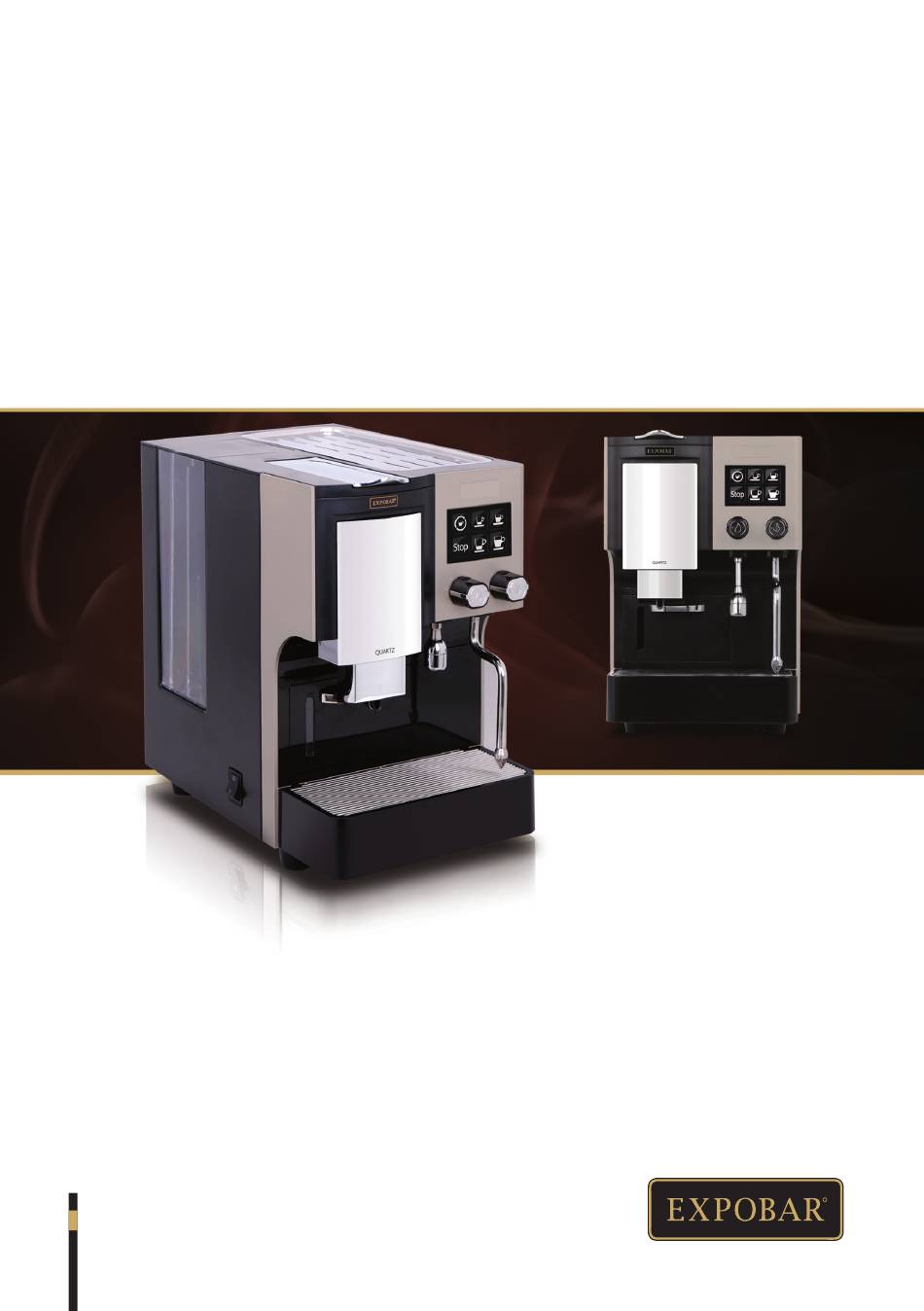

QUARTZ
USER MANUAL
UM_EN
R
Part No.: C*70000275EN_04
Date: 131108

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUARTZ and is the answer not in the manual?

Questions and answers

Related Manuals for Expobar QUARTZ

Summary of Contents for Expobar QUARTZ

  • Page 1 QUARTZ USER MANUAL UM_EN Part No.: C*70000275EN_04 Date: 131108...

  • Page 2: Table Of Contents

    CONTENT QUARTZ Original instructions CONTENT ..................................2 SYMBOL DESCRIPTION ............................4 Hazard intensity levels ..............................4 GENERAL ..................................5 Introduction ..................................5 Warnings ..................................... 5 Precautions ..................................5 Intended use ..................................5 Data sheet................................... 6 OVERVIEW OF COMPONENTS ........................7 Front view ................................... 7 DIMENSION SKETCH ............................8...
  • Page 3 CONTENT QUARTZ Disassemble the group gasket ..........................19 Cleaning the group gasket and capsule holder ....................19 Reassembly the group gasket ..........................19 Cleaning the coffee spout ........................... 20 Additional handling of the machine ........................21 PROGRAMMING ............................22 Keypad ..................................22 Programming the drink volume .........................

  • Page 4: Symbol Description

    SYMBOL DESCRIPTION QUARTZ Hazard intensity levels There are three different levels of hazard intensity, identified by signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Observe the statements to ensure safety, performance, prevent injury and machine damage.

  • Page 5: General

    GENERAL QUARTZ Introduction Thank you for choosing the QUARTZ espresso machine. We hope you enjoy it ! Read the user manual before using the machine. reference. This guide contains important instructions for using To protect against fire, electric shock and injury the capsule group machine correctly and safely.

  • Page 6: Data Sheet

    GENERAL QUARTZ Data sheet FACTS QUARTZ Drink selection options Brewing mechanism Yes, Capsule Capacitive touchpad Temperature control PID regulation Height adjustable outlet Used capsule drawer 15 capsules Saving energy mode Height 399mm Width 260mm Depth 410,5mm Internal water tank 1.8 L...

  • Page 7: Overview Of Components

    OVERVIEW OF COMPONENTS QUARTZ Front view Cup shelf Tank lid Capsule group lever Internal water tank Capacitive keypad Water tap Steam tap Height adjustable outlet Capsule drawer Drip grid Power switch Drip tray Hot water outlet Steam wand...

  • Page 8: Dimension Sketch

    DIMENSION SKETCH QUARTZ QUARTZ Model D (Min~ Max) QUARTZ 399 mm 260 mm 410.5 mm 63 mm ~ 115 mm 510.15 mm 590 mm...

  • Page 9: Transport

    TRANSPORT QUARTZ Packaging The machine is shipped in a unique carton box which uses expanded polystyrene paddings. The machine box is provided with conventional symbols that can be perfectly visible during the handling and storage tasks. The machine box must stay in a vertical position during the transport. Do not tip or try to place the box tilted sideways in any way.

  • Page 10: Electrical Connection

    INSTALLATION AND START-UP QUARTZ Electrical connection Connect the machine to a earthed wall socket. Check the correct voltage and frequency in this user manual. Verify that the electric data of the nameplate are compatible with the operating conditions of the area where you will install the machine.

  • Page 11: Drip Tray Drainage

    INSTALLATION AND START-UP QUARTZ Drip tray drainage The machine drip tray can be connected to a larger drain, allowing the tray to be emptied less frequently. A suitable location is required for this. To use this feature, follow the connection procedure explained below.

  • Page 12: Starting The Machine

    INSTALLATION AND START-UP QUARTZ Starting the machine Fill the tank to the maximum level.(A) If the machine is connected to the water mains, filling will be done automatically. Connect the machine to the electricity supply. Switch on the machine at the power switch. (B) ‘standby’...

  • Page 13: Operation

    OPERATION QUARTZ How to dispense a drink Lift up the lever for the group(A), place a cup Insert the capsule in the correct position as under the outlet(B). shown in the picture and push down the lever into locked position.

  • Page 14: Steaming And Frothing Milk

    OPERATION QUARTZ Steaming and frothing milk WARNING! Never expose hands and fingers directly under the steam nozzle when operating OPEN CLOSE the steam wand to avoid scalding or serious burns. Steaming Frothing To use the steam wand correctly, proceed as follows: Point the steam wand toward the drip tray.

  • Page 15: Filling The Internal Water Tank

    OPERATION QUARTZ Filling the internal water tank For machines connected to a tank, if the water level of the tank reaches the minimum level while trying to dispense a drink, the brewing will stop and the LEDs on the keypad will begin to flash.

  • Page 16: Cleaning And Care

    CLEANING AND CARE QUARTZ Coffee machine cleaning Important: To obtain the best efficiency, quality and performance of the machine, you should always follow the cleaning and care instructions provided in this manual. Turn off the power switch when cleaning the exterior of the machine.

  • Page 17: Rinsing The Capsule Group

    CLEANING AND CARE QUARTZ Rinsing the capsule group Open the lever so the last used capsule falls Push down the lever into locked position. into the capsule drawer and the group becomes Start the continuous brewing and stop after 30 empty.

  • Page 18: Cleaning The Capsule Group

    CLEANING AND CARE QUARTZ Cleaning the capsule group Cleaning with powder Open the lever so the last used capsule falls Push down the lever into locked position. into the capsule drawer and the group becomes Start the continuous brewing and stop after 20 empty.

  • Page 19: Disassemble The Group Gasket

    CLEANING AND CARE QUARTZ Disassemble the group gasket Switch off the machine and Use your fingers to push the Once the metal ring had been open up the capsule group. metal tension ring backwards released, use your fingers/nails until it releases from the to grab the gasket and pull it gasket.

  • Page 20: Cleaning The Coffee Spout

    CLEANING AND CARE QUARTZ Cleaning the coffee spout Push the K4 button and let the brewing Use the cleaning brush which is included finish without a capsule. in the accessory box, rub it back and forth inside the coffee spout a few times to remove any buildup of coffee residue.

  • Page 21: Additional Handling Of The Machine

    CLEANING AND CARE QUARTZ Additional handling of the machine Dry the cups before putting them on the cup shelf. Important: Avoid placing wet cups directly on the cup shelf, it may drip into the machine and cause machine damage. When raising and lowering the lever to insert a capsule, do so slowly.

  • Page 22: Programming

    PROGRAMMING QUARTZ Keypad Continuous brewing of coffee. Programmable drink buttons. Stop brewing coffee. Programming the drink volume To adjust the drink volume, proceed as follows: Insert an unused capsule into the group and close it. Press and hold button K5 for five seconds until the LED behind the button begins to flash.

  • Page 23: Storage And Disposal Of Machine

    STORAGE AND DISPOSAL OF MACHINE QUARTZ How to store the machine Make all the cleaning procedures described in this manual. Disconnect and roll up the power cord. Disconnect the inlet hose from the machine if it’s connected to the water mains (this should be performed by a qualified person).

  • Page 24: Alarms And Indications

    ALARMS AND INDICATIONS QUARTZ ALARM DESCRIPTION POSSIBLE CAUSE SOLUTION When the machine is filling water or heating, each button The machine is filling Wait until the boiler is will flash one at the time with 3 HEATING & FILLING water or heating the full and reach the oper- seconds interval.
  • Page 25 ALARMS AND INDICATIONS QUARTZ HEATING & FILLING FILLING TIMEOUT NO WATER IN TANK FLOWMETER TIMEOUT DISPENSE TIMEOUT STANDBY FULL CAPSULE DRAWER NTC DISCONNECTED OR BROKEN...
  • Page 26 For the warranty to be valid, the conditions for maintenance must have been followed in accordance with our instructions, proper care must have been taken and any claim against the warranty must be sent without delay. The equipment in question may not be used while awaiting service if there is any risk that the damage or defect would worsen.
