INSTALLATION AND START-UP
Bend the flange (shown in yellow) inward to make
room for the inlet tube.

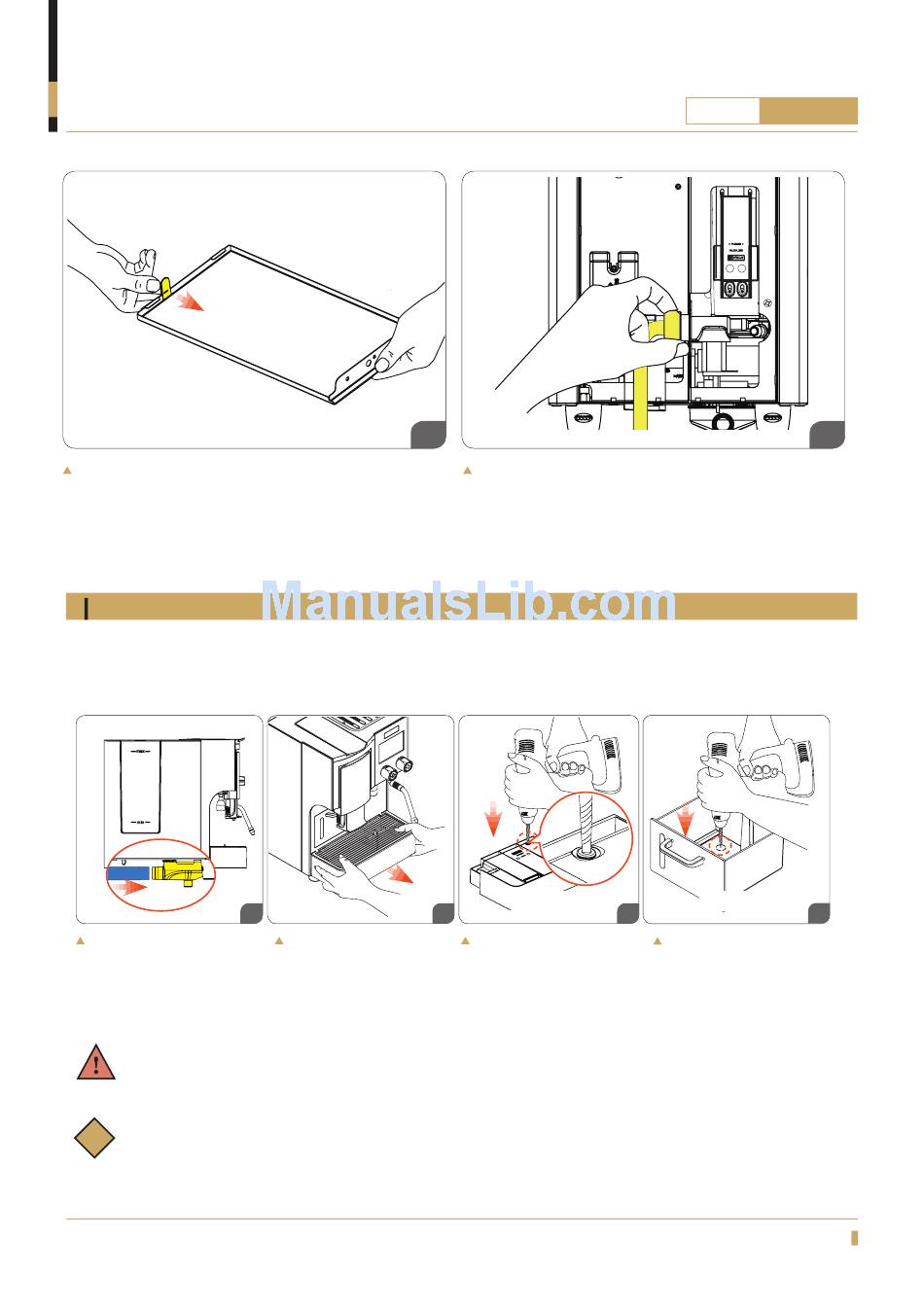

Installing the drip tray drain

The drip tray can be connected to a plumbing drain, allowing the tray to be emptied much less frequently
(a domestic drain connection is required for this). To use this feature, follow the connection procedure
explained below.
Connect the included
corrugated drain tube
to the drain cup.
WARNING!
The holes drilled in the drip tray or capsule drawer should be ≤3mm to avoid leaks.
Note:
i
The drain pipe system can be used when the machine is connected to the domestic water supply
or the internal water tank.
01
Remove the drip tray.
03
Remove the cover plug for the inlet valve and connect
the included inlet hose. The machine will now
automatically fill the internal water tank to
minimum level + 40mm, when water goes below
minimum level it will refill again, etc.
Max. Ф: 3mm
02
Drill a 3mm hole in
the bottom of the drip
tray as shown above.
Reinstall the drip tray
when finished.
QUARTZ
ONE TOUCH
Max. Ф: 3mm
03
Drill a 3mm hole in the
bottom of the capsule
box as shown above.
Reinstall the capsule
box when finished.
04
04
