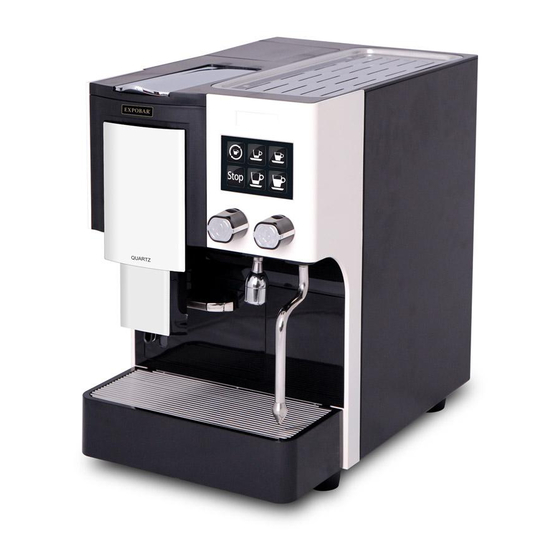

QUARTZ CLASSIC
USER MANUAL
UM_EN
R
Part No.: 1764263_02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUARTZ CLASSIC and is the answer not in the manual?

Questions and answers

Related Manuals for Expobar QUARTZ CLASSIC

Summary of Contents for Expobar QUARTZ CLASSIC

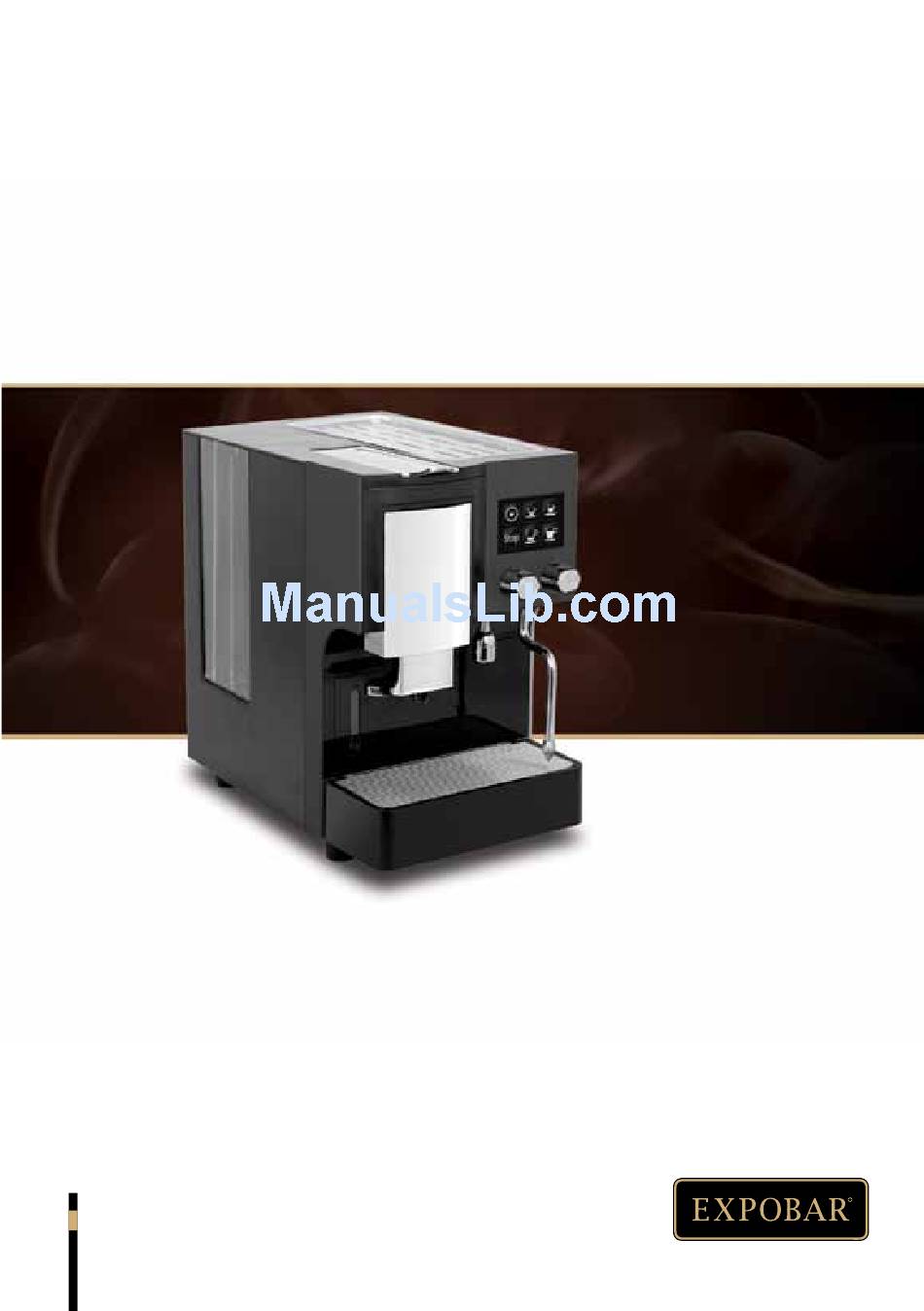

  • Page 1 QUARTZ CLASSIC USER MANUAL UM_EN Part No.: 1764263_02...

  • Page 2: Table Of Contents

    Precautions ..................................6 Intended use ..................................6 Data sheet................................... 7 OVERVIEW OF COMPONENTS ........................8 Front view ................................... 8 DIMENSION SKETCH ............................9 Quartz Classic ................................... 9 TRANSPORT ................................10 INSTALLATION AND START-UP .......................10 Packaging ................................... 10 Delivery inspection ................................ 10 Positioning..................................10 Electrical connection ..............................
  • Page 3 CONTENT QUARTZ CLASSIC CLEANING AND CARE ........................17 Coffee machine cleaning ............................17 Daily cleaning procedures ........................... 17 Weekly cleaning procedures..........................17 Rinsing the capsule group ............................ 18 Cleaning the capsule group ..........................19 Cleaning the coffee spout ........................... 20 Emptying the capsule drawer ..........................

  • Page 4: Symbol Description

    QUARTZ CLASSIC SYMBOL DESCRIPTION Hazard intensity levels There are three different levels of hazard intensity, identified by the signal words DANGER, WARNING and IMPORTANT. The level of hazard is determined by the following definitions. Additionally, NOTE indicates useful information that all users should be aware of. Observe these statements to ensure user safety and prevent injury and/or material damage.

  • Page 5: General

    GENERAL QUARTZ CLASSIC Introduction Thank you for choosing the QUARTZ CLASSIC espresso machine. We hope you enjoy it ! Read this user manual carefully before starting Do not discard this manual, it will be useful for to use the machine.

  • Page 6: Precautions

    QUARTZ CLASSIC GENERAL In case of emergency, (e.g., the machine catches units high of the same model. Do not place fire or becomes unusually hot or noisy), other heavy items on top of the box. disconnect the power immediately and turn off If the machine is likely to be exposed to the water supply.

  • Page 7: Data Sheet

    GENERAL QUARTZ CLASSIC Data sheet FACTS QUARTZ Drink selection options 4 Coffee Drinks & Continuous Brewing Brewing mechanism Capsule Capsules supported Caffitaly, Lavazza User interface Capacitive touchpad Temperature control PID regulation Height adjustable outlet Adjustable from 65 to 110mm Used capsule drawer capacity 15 capsules Energy save mode Dimension (height, width, depth)

  • Page 8: Overview Of Components

    OVERVIEW OF COMPONENTS QUARTZ CLASSIC Front view Water tank Water filter (optional) Steam tap Hot water tap Hot water outlet Height-adjustable outlet Steam pipe Drip tray level float Capsule drawer with window Coffee outlet Tank lid Capsule group lever Cup shelf Touch pad Drawer handle Drip grid...

  • Page 9: Dimension Sketch

    DIMENSION SKETCH QUARTZ CLASSIC Quartz Classic Model D (Min~ Max) CLASSIC 400 mm 260 mm 410 mm 65 mm ~ 110 mm 92 mm 510 mm 590 mm...

  • Page 10: Transport

    TRANSPORT QUARTZ CLASSIC Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet.

  • Page 11: Electrical Connection

    INSTALLATION AND START-UP QUARTZ CLASSIC Electrical connection DANGER! If the power cable or plug is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified person to avoid SERIOUS INJURY OR DEATH! Verify that the electrical specifications on the nameplate are compatible with the operating conditions of the area where you will install the machine.

  • Page 12: Drip Tray Drainage

    INSTALLATION AND START-UP QUARTZ CLASSIC Drip tray drainage The drip tray can be connected to a plumbing drain, allowing the tray to be emptied much less frequently (a domestic drain connection is required for this). To use this feature, follow the connection procedure explained below.

  • Page 13: Starting The Machine

    INSTALLATION AND START-UP QUARTZ CLASSIC Starting the machine Fill the water tank to the max level (A). If the machine is connected to the domestic water supply, water filling will begin automatically. Connect the machine’s plug to the electrical outlet (this should be done by a qualified person). Turn on the main power switch (B).

  • Page 14: Operation

    OPERATION QUARTZ CLASSIC How to dispense a drink Lift the capsule group lever(A) and place a cup Insert a capsule in the capsule group as shown centred under the outlet(B). above and push the lever into the locked position. Adjust the height of the coffee outlet if Select the desired drink from the keypad.

  • Page 15: Steaming And Frothing Milk

    OPERATION QUARTZ CLASSIC Steaming and frothing milk WARNING! Never put hands and fingers under the steam nozzle when operating the steam OPEN CLOSE wand to avoid scalding or serious burns. Steaming Frothing To use the steam wand correctly, proceed as follows: Point the steam wand toward the drip tray.

  • Page 16: Filling The Water Tank

    OPERATION QUARTZ CLASSIC Filling the water tank For machines connected to a tank, if the water level of the tank reaches the minimum level while trying to dispense a drink, the brewing will stop and the keypad will begin to flash. Proceed as follows: If the water level of the tank is below the Switch off the machine at the power switch.

  • Page 17: Cleaning And Care

    CLEANING AND CARE QUARTZ CLASSIC Coffee machine cleaning Important: For best efficiency, quality and performance of the machine, always follow the cleaning and care instructions provided in this manual. Always turn off the main power switch when cleaning the exterior of the machine. All external surfaces should be cleaned with a damp lint-free cloth that will not scratch the machine.

  • Page 18: Rinsing The Capsule Group

    CLEANING AND CARE QUARTZ CLASSIC Rinsing the capsule group Raise the capsule lever so that the last used Lower the lever into the locked position. Press capsule falls into the capsule drawer and the the Continuous button and allow it to run for group is empty.

  • Page 19: Cleaning The Capsule Group

    CLEANING AND CARE QUARTZ CLASSIC Cleaning the capsule group Cleaning with powder Open the lever so the last used capsule falls Lower the lever into the locked position. Press into the capsule drawer and the group becomes the Continuous button and allow it to run for empty.

  • Page 20: Cleaning The Coffee Spout

    CLEANING AND CARE QUARTZ CLASSIC Cleaning the coffee spout Raise and lower the capsule lever to Use the cleaning brush which is included empty the group, pull the adjustable in the accessory box, scrub the coffee drink spout down to its lowest position spout a few times to remove any buildup and press the K4 button, then let the of coffee residue.

  • Page 21: Additional Handling Of The Machine

    CLEANING AND CARE QUARTZ CLASSIC Additional handling of the machine Only place dry cups on the cup shelf. Important: Do not place wet cups on the cup shelf, allowing water to drip into the machine can cause machine damage or failure. Always raise and lower the capsule lever slowly.

  • Page 22: Programming

    PROGRAMMING QUARTZ CLASSIC Keypad Continuous brewing. Programmable drink buttons. Stop brewing. Programming the drink volume To adjust the drink volume, proceed as follows: Insert an new capsule into the group and close it. Press and hold the K5 button for five seconds until all the buttons begin to flash. With the buttons flashing, press the button of the drink to be programmed (K1, K2, K3, K4).

  • Page 23: Storage And Disposal

    STORAGE AND DISPOSAL QUARTZ CLASSIC Storing the machine Before storage be sure to: Perform all weekly and periodic cleaning procedures described in this manual (see pages 17-21). Disconnect and roll up the power cord. Disconnect the machine’s water inlet hose from the domestic water supply (if applicable) and drain the boiler (this should be performed by a qualified person).

  • Page 24: Troubleshooting

    QUARTZ TROUBLESHOOTING CLASSIC PROBLEM POSSIBLE CAUSE SOLUTION Check that the plug is correctly The machine does not start The plug is not correctly plugged in and that the socket is inserted into the socket. working. Switch the machine OFF and use the hot water tap to partially empty the 1.) There is air inside the boiler and purge the air.

  • Page 25: Alarms And Indications

    QUARTZ ALARMS AND INDICATIONS CLASSIC ALARM DESCRIPTION POSSIBLE CAUSE SOLUTION When the machine is filling with water or heating, all buttons will flash simultaneously in 3 second intervals. It will start to flash from button K5 and continue The machine is filling Wait until the boiler is one by one to button K6.
  • Page 26 QUARTZ ALARMS AND INDICATIONS CLASSIC ALARM DESCRIPTION POSSIBLE CAUSE SOLUTION Buttons K3 and K5 are flash- ing and the machine does not respond. Press buttons K3 and STANDBY mode is STANDBY K5 simultaneously to activated. exit STANDBY mode. The keypad flashes intermittently, Empty the capsule the first row alternating with The capsule drawer...
  • Page 27 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precautions have been taken, and warranty claim has been issued without delay. The affected equipment shall not be used while awaiting service if there is any risk that the damage or defect could worsen.
