CLEANING AND MAINTENANCE

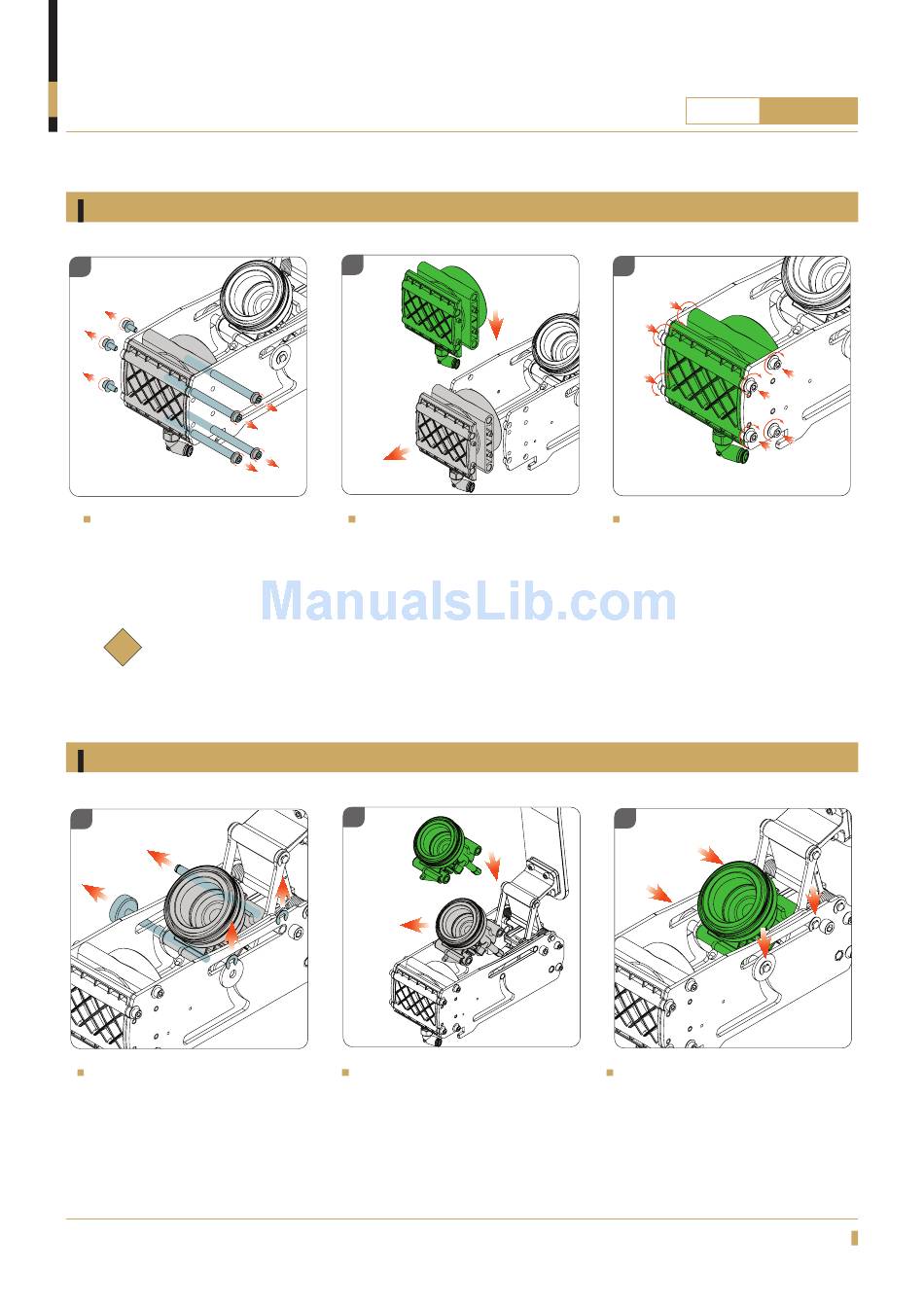

Replacement kits for capsule group

Replacing the pinch chamber kit

01
Remove the screws and then
pull out the axles holding the
pinch chamber.
Note:
i
When removing the screws you must use two torx-drivers, one on each side you to counter the
rotation of the axle when unscrewing the opposite screw.

Replacing the capsule holder kit

01
Use a small screwdriver to
remove the lock washers on
the guide shafts. Pull the shafts
out on the left side to release
the chamber.
02
Remove the old chamber
and replace with a new pinch
chamber kit.
02
Remove the old chamber and
replace it with a new capsule
chamber kit.
QUARTZ
ONE TOUCH
03
Align the chamber, reinsert the
axles and fasten all screws.
03
Align the chamber and clip
in the guide shafts to lock it
into position, replace all lock
washers to secure the guide
shafts.
