CLEANING AND MAINTENANCE

Important:
The cleaning instructions included in this manual are to serve as a complement to the cleaning instructions
explained in the user's manual.

Removing the capsule group

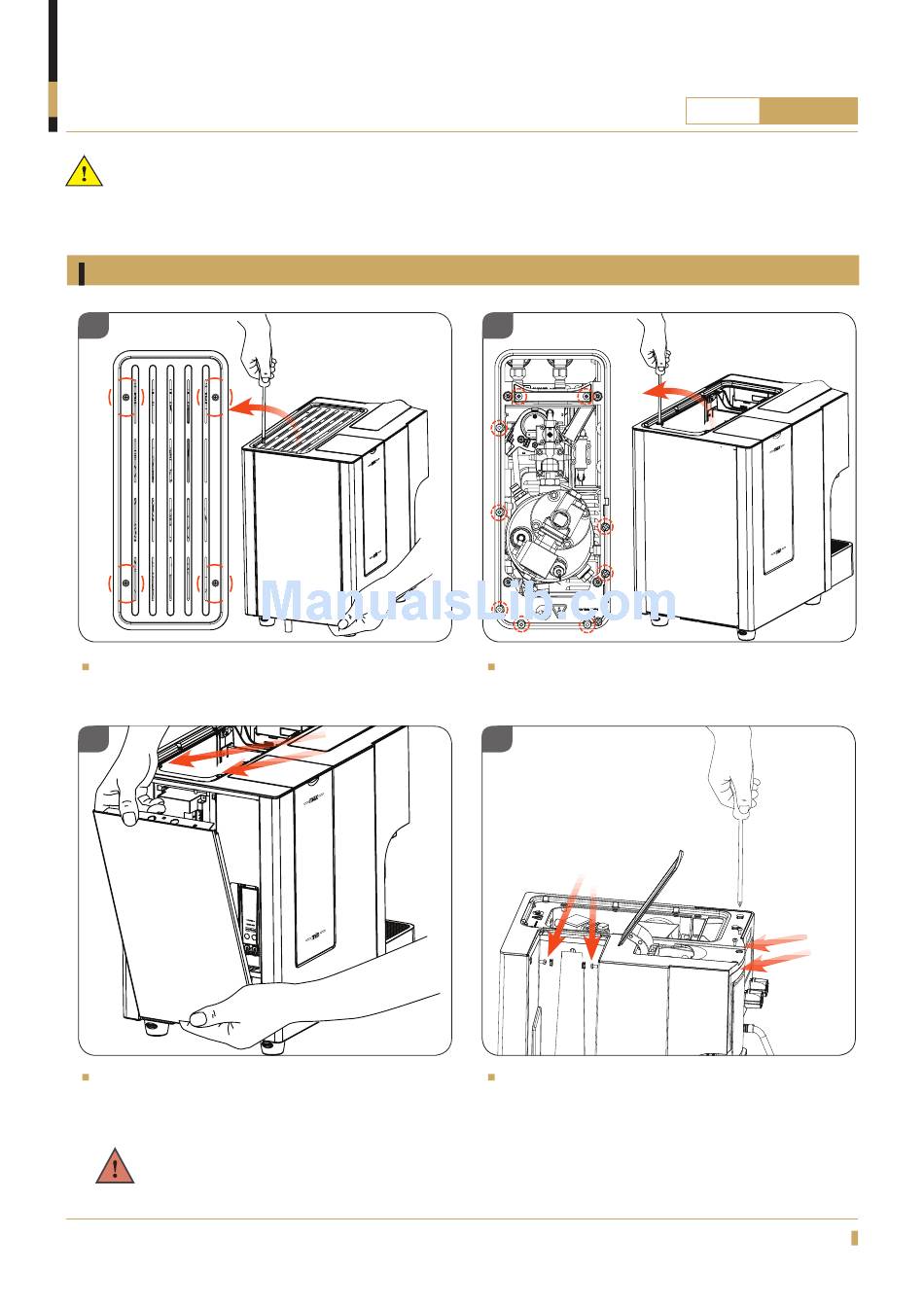

01
Remove the cup warming panel by removing the
four screws seen in the picture above.
03
Remove the two screws at the top of the rear
panel (A) and remove it.
WARNING!
The boiler may be very hot, let it cool down and make sure there is no pressure in the boiler by
opening the steam or water tap before any service is performed.
02
Remove the plastic top frame covering the machine
by removing the screws in the picture above.
A
04
Raise the group lever and remove the two
caps and screws in the picture above (A). Then
remove the water tank and remove the 2 caps
and screws as shown (B).
QUARTZ
B
ONE TOUCH
A
