DEFINITY Enterprise Communications Server Release 6
Installation and Test for Compact Modular Cabinets 555-230-128
1 Install and Cable the Cabinets
Install Off-Premises Station Wiring
5
Figure Notes
1. Locally engineered cables
2. Out-of-building wiring
3. Multi-pair protector units (primary
protectors with heat coils or equivalent
with sneak current protection)
4. 356A adapter
5. B25A cable
6. Out-of-building analog telephones

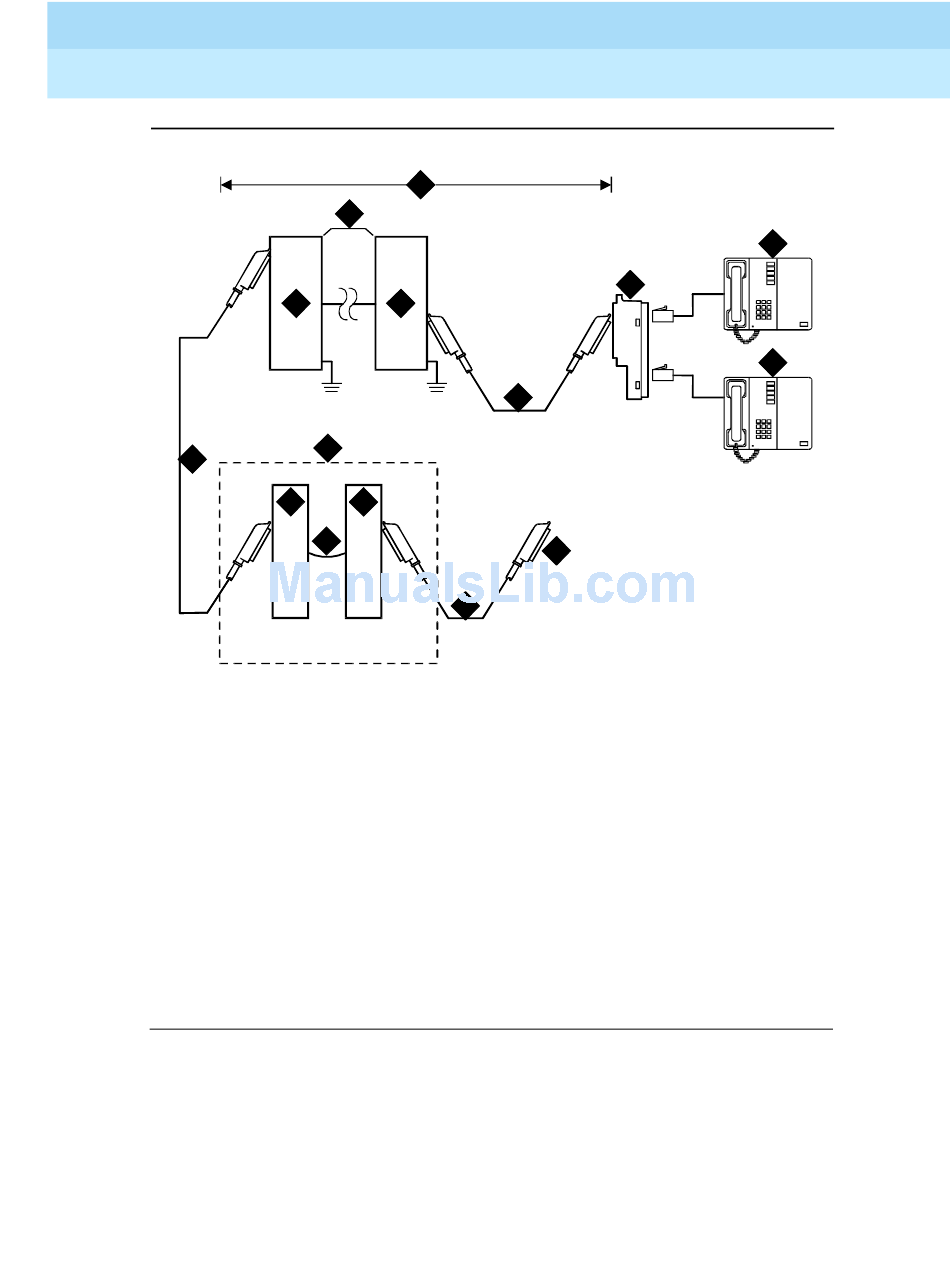

Figure 1-39. Connections for 1 to 8 Out-of-Building Analog Telephones
1
2
3 3
7
8 9
10
5
4
5
11
7. Part of MDF
8. Station side (white field)
9. System side (purple field)
10. Cross-connect jumpers
11. To analog line circuit pack
(TN2183, TN769, TN742, or
TN746B)
Issue 3
May 1998
Page 1-85
6
6
crdfobt RPY 012398
