DEFINITY Enterprise Communications Server Release 6
Installation and Test for Compact Modular Cabinets 555-230-128
1 Install and Cable the Cabinets
Cable the System
Vertically and Horizontally Mounted System
Only 1 horizontal TDM/LAN Bus cable is allowed per system. See
1. Route the TDM/LAN bus cables through the cable trough.
Figure Notes
1. TDM/LAN bus terminator (at each end
of the TDM/LAN bus)
2. Vertical TDM/LAN bus cable (List 8)

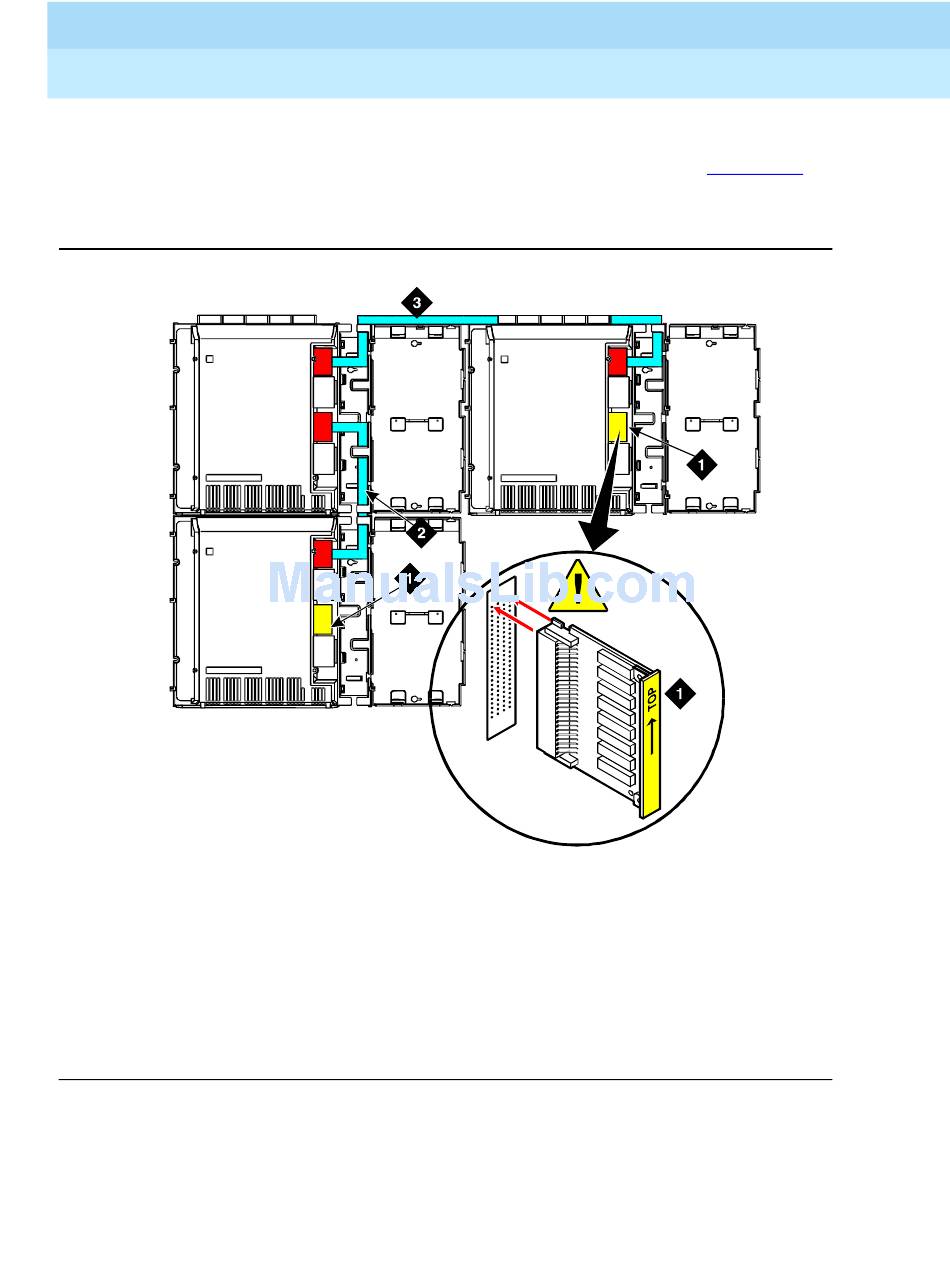

Figure 1-15. System Cable Connections
indmin10 KLC 011698
Figure
3. Horizontal TDM/LAN bus cable
(List 9)
Issue 3
May 1998
Page 1-25
1-15.
