1 Install and Cable the Cabinets
Install and Wire Telephones and Other Equipment
Connect Adjunct Power
The 400B2 adapter is convenient for connecting local -48 VDC power to a
modular plug. See
Figure Notes
1. Surface-mounted information outlet
2. To individual power unit (such as
1151A or 1151A2)
3. 400B2 adapter

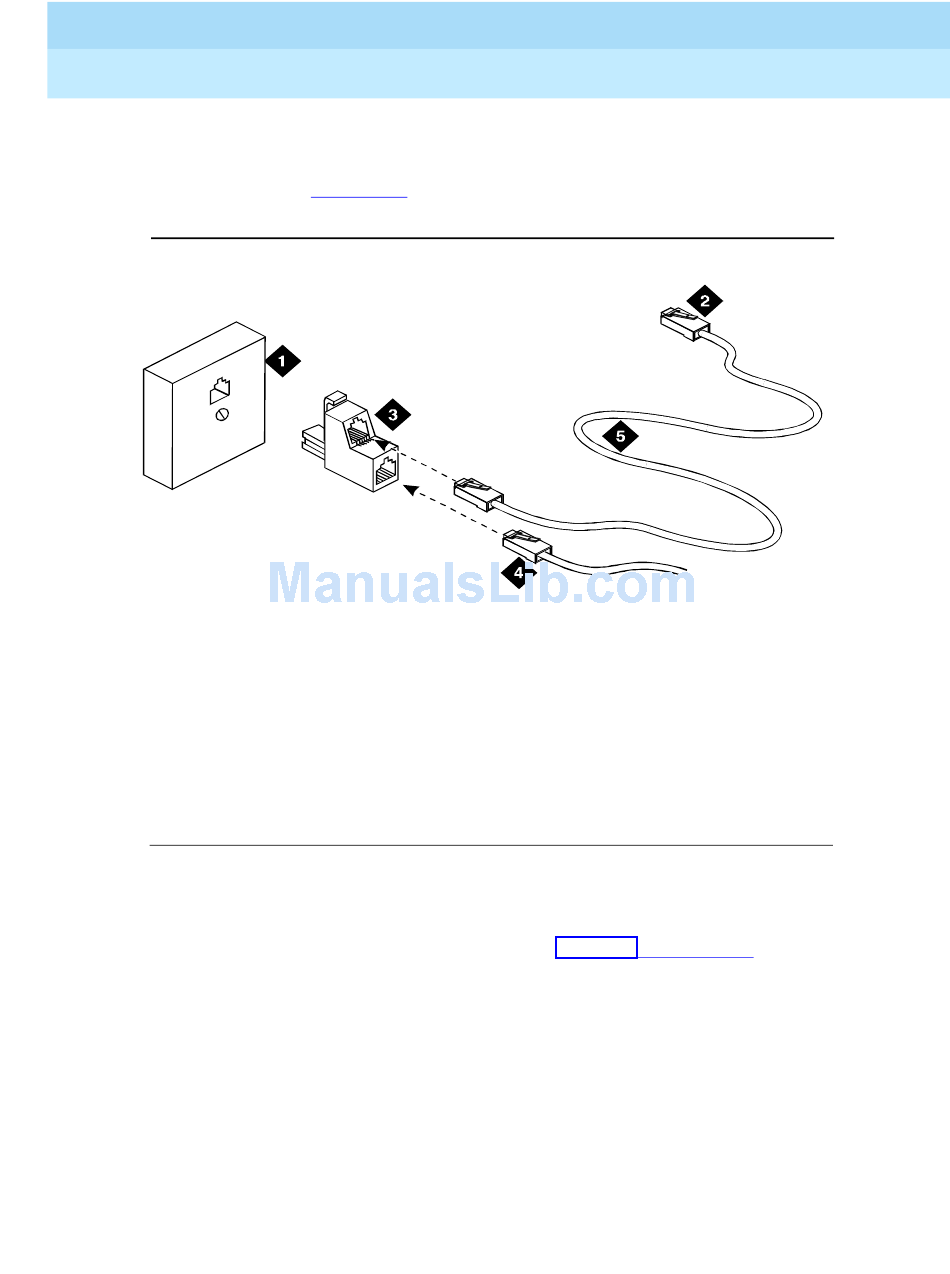

Figure 1-26. 400B2 Adapter Connecting to a Modular Plug
Adjunct power can be provided from the equipment room or equipment closet
with 1145B power unit. The AUX connector (J1) on the processor interface cable
can provide power for 1 attendant console. See
Adjunct power can be provided locally at the telephone or console by the 1151A
or 1151A2 Power Supply.
Figure 1-26.
r749428 RPY 012098
4. To telephone
5. Destination service access
point (DSAP) power cord
Table 2-7 on page 2-11.
Issue 3
May 1998
Page 1-57
