DEFINITY Enterprise Communications Server Release 6
Installation and Test for Compact Modular Cabinets 555-230-128
1 Install and Cable the Cabinets
AC Power and Ground
Install the Ground Block
1. Mount the ground block as shown in
2. Make the cable connections as shown in
Figure Notes
1. #12 x 1-inch shoulder screws

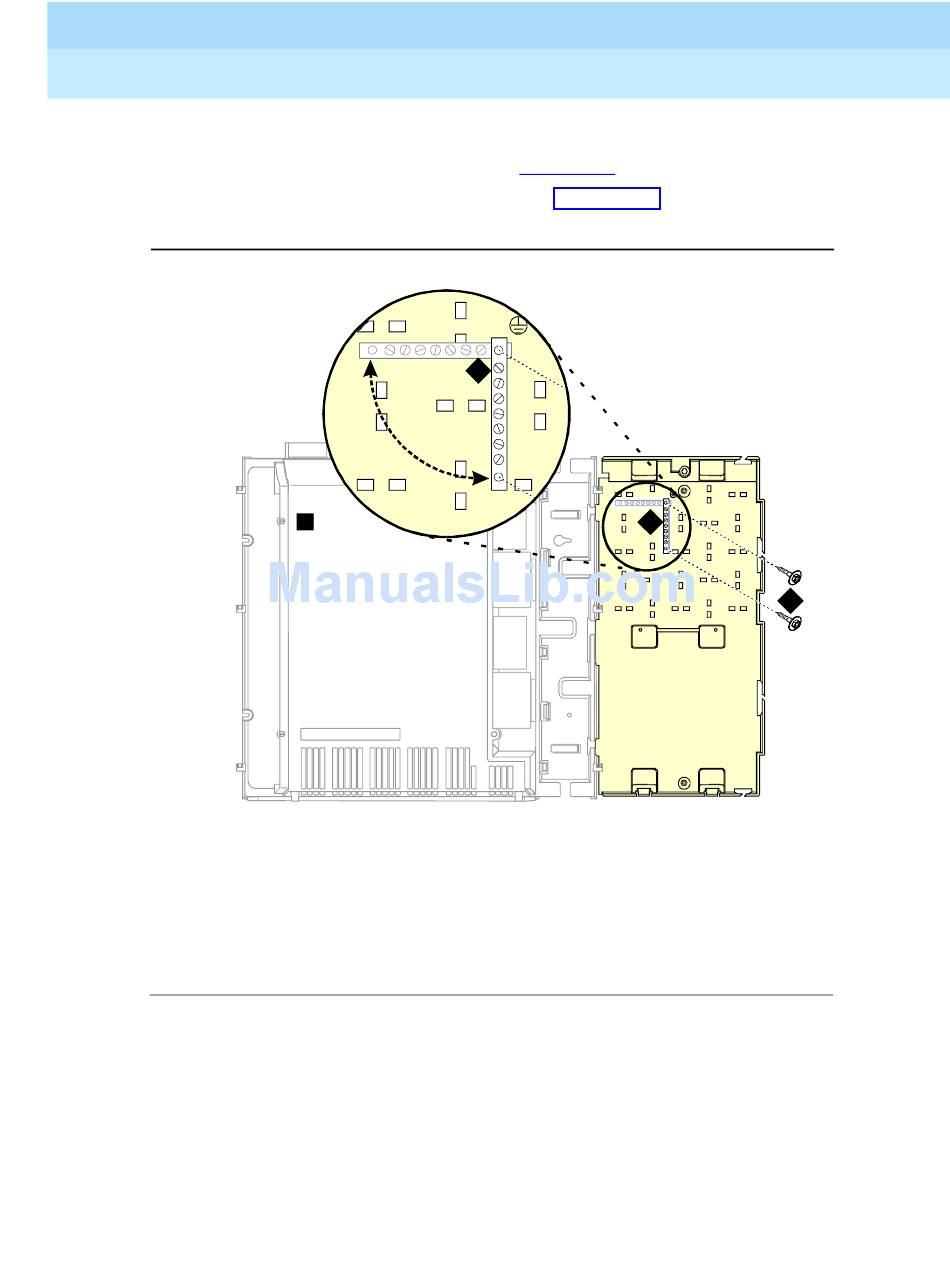

Figure 1-10. Ground Block Installation to Right Panel
2
A
Figure 1-10.
Figure 1-11.
2
indmingb RPY 012398
2. Single-point ground block
Issue 3
May 1998
Page 1-19
