DEFINITY Enterprise Communications Server Release 6
Installation and Test for Compact Modular Cabinets 555-230-128
1 Install and Cable the Cabinets
Install Equipment Room Hardware
Figure Notes
1. Line circuit pack slots

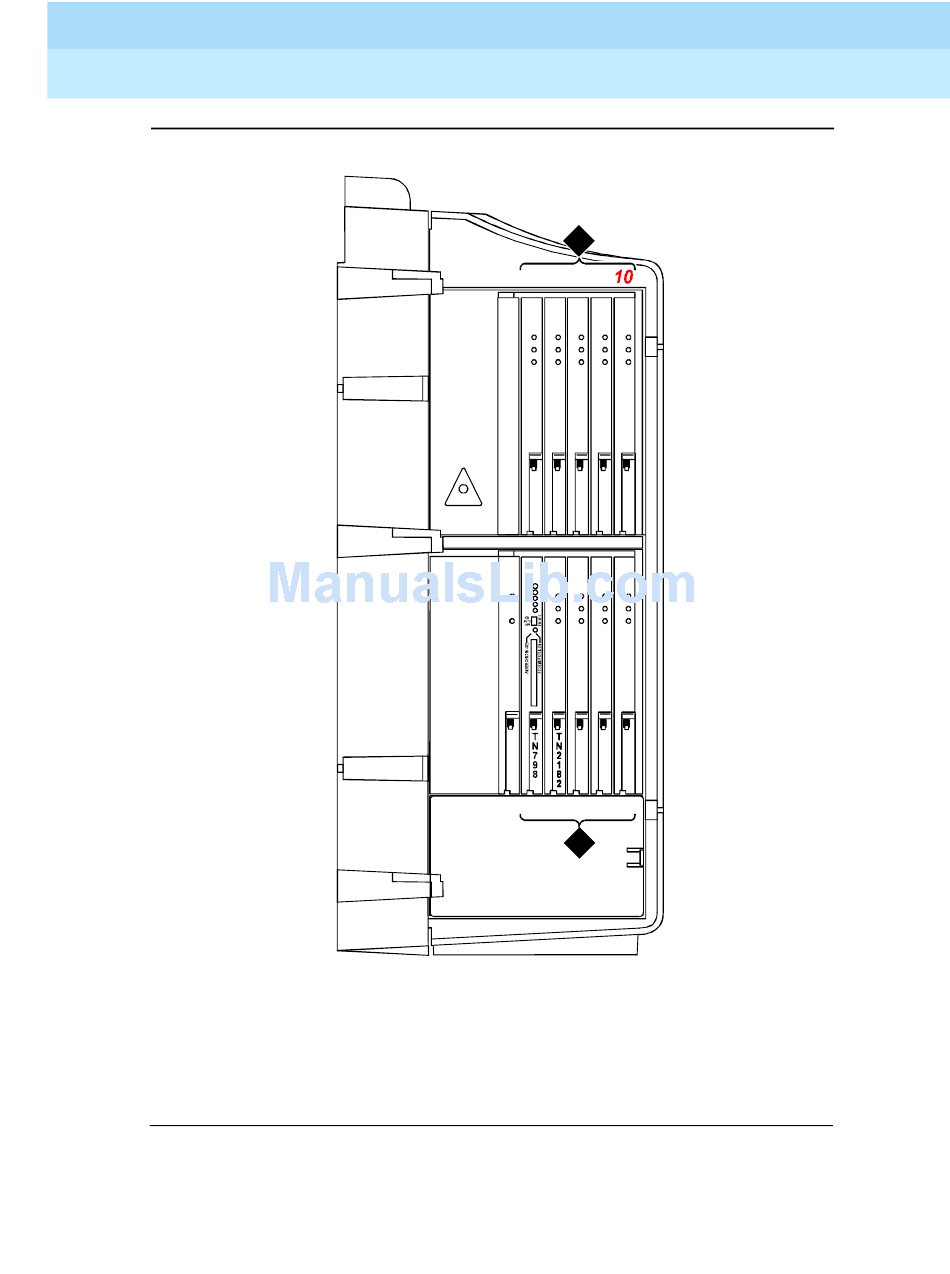

Figure 1-18. Control Carrier Slot Layout
1
6
MAJ
MI N
1 5
2
scdmlft2 RPY 011998
2. Trunk circuit pack slots
Issue 3
May 1998
Page 1-35
