DEFINITY Enterprise Communications Server Release 6
Installation and Test for Compact Modular Cabinets 555-230-128
1 Install and Cable the Cabinets
Install the System Cabinets
Figure Notes
1. #12 x 1-inch shoulder screws

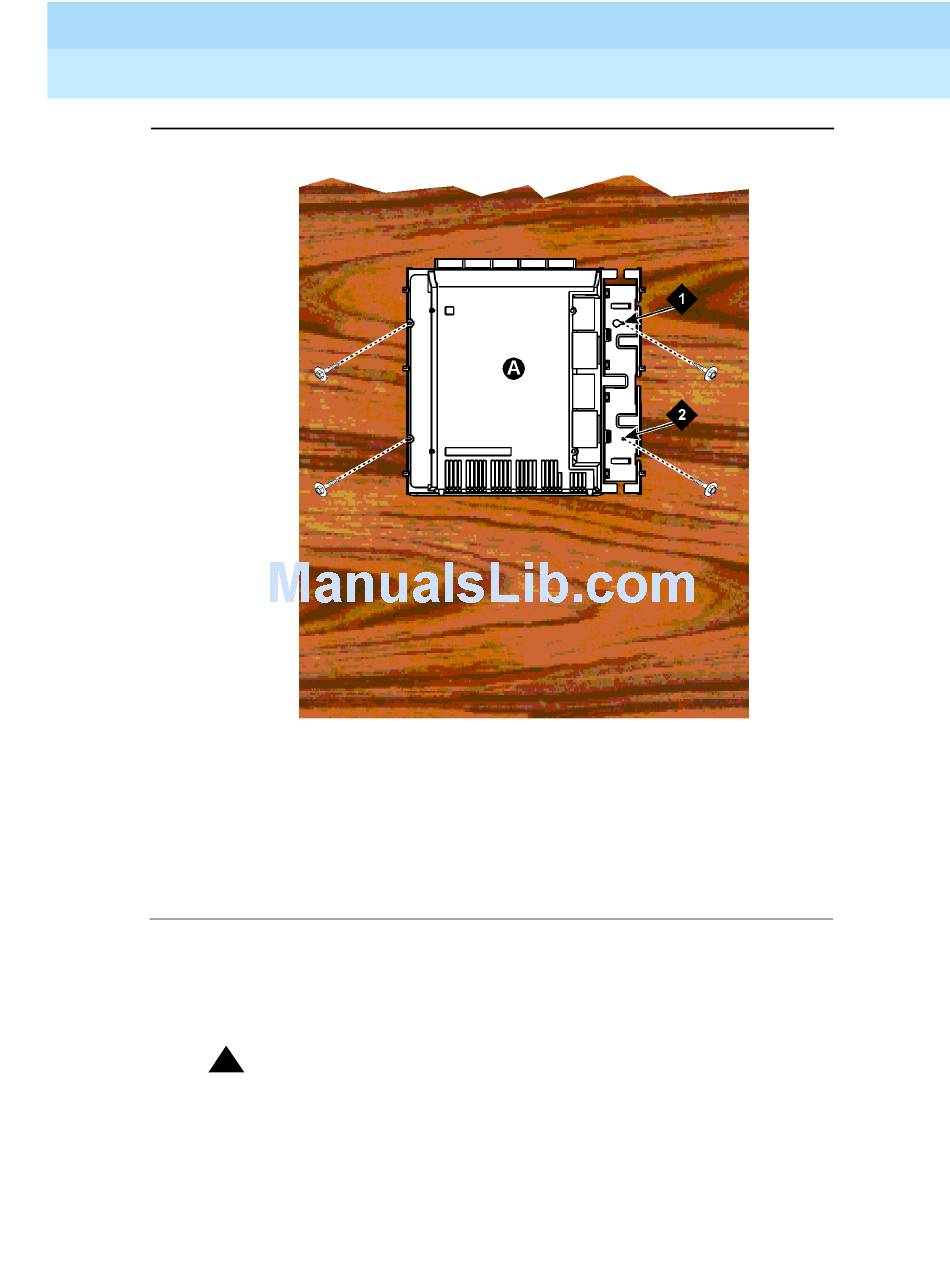

Figure 1-5. Typical Wall-Mount Installation
7. Drill two lower mounting holes using the cabinet as a template.
8. Thread the 2 lower screws and tighten.
!
CAUTION:
Be sure the right bottom safety screw is in place and tight.
2. #12 x 1-inch safety screw
Issue 3
May 1998
