1 Install and Cable the Cabinets
Install and Wire Telephones and Other Equipment
Adjunct Power Connections
Figure 1-32
2
1
Figure Notes
1. Typical display telephone
2. Individual power supply (Such as
1151A) (Not used if item 15 is used)
3. 400B2 adapter
4. Information outlet (modular jack)
5. 4-pair D-Inside Wire (DIW) cable
6. Satellite site or adapter location
7. 25-pair D-Inside Wire (DIW) cable
8. Station side of MDF

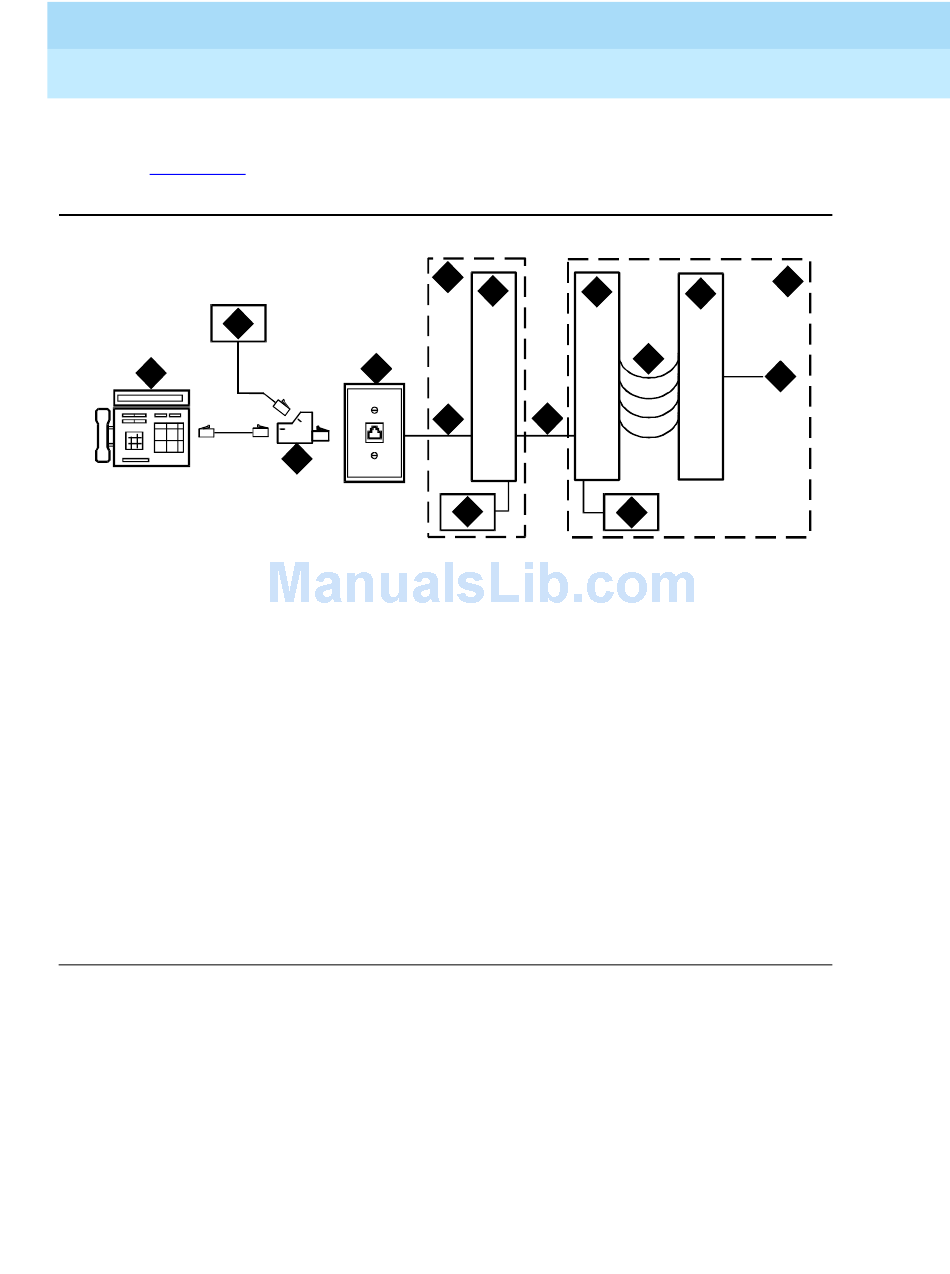

Figure 1-32. Example Adjunct Power Connections
shows typical connection locations for adjunct power.
4
3
13
6
8
7
5
14
9. 100P6A patch cord or jumpers
10. System side of MDF
11. 25-pair cable to digital line circuit
pack
12. Equipment room
13. Satellite location
14. Bulk power supply (Such as
1145B). Install at satellite location
or equipment room (not both).
Issue 3
May 1998
Page 1-64
12
10
9
11
15
adjunct RPY 012098
