Figure 50 – J160 Wing Assembly Sheet 1 (Ser Xiv) - Jabiru j160 Technical Manual
Hide thumbs
Also See for j160:
- Product manual (67 pages) ,
- Construction manual (11 pages) ,
- Technical manual (233 pages)
Table of Contents
Advertisement
Aircraft Technical Manual
JTM001-5

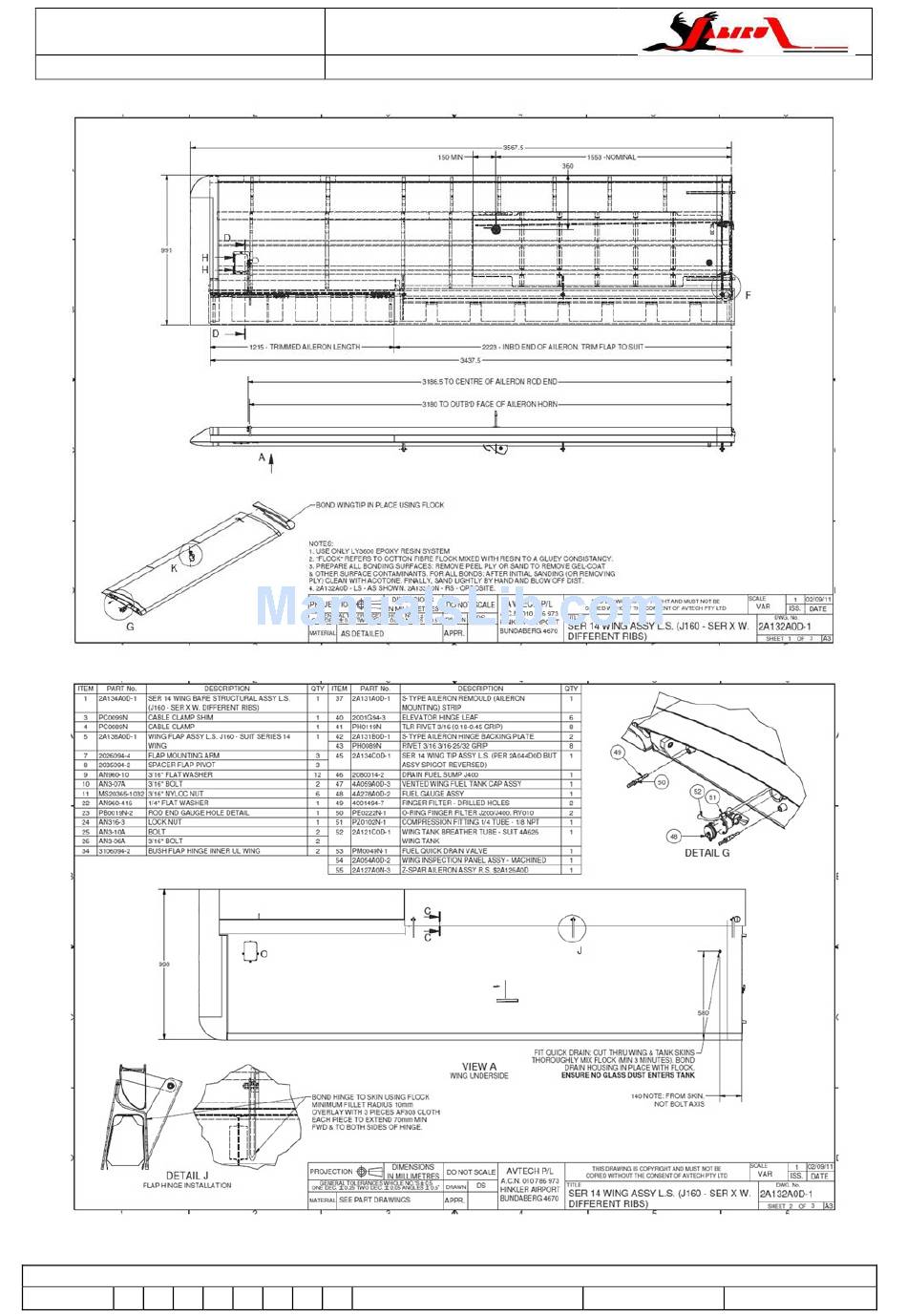

Figure 50 – J160 Wing Assembly Sheet 1, Ser XIV (J160)
Figure 51 – J160 Wing Assembly Sheet 2, Ser XIV (J160)
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
5
Dated: 29th October 2014
Pty Ltd
Issued By: AS
Page: 94 of 298
