Aircraft Technical Manual
JTM001-5

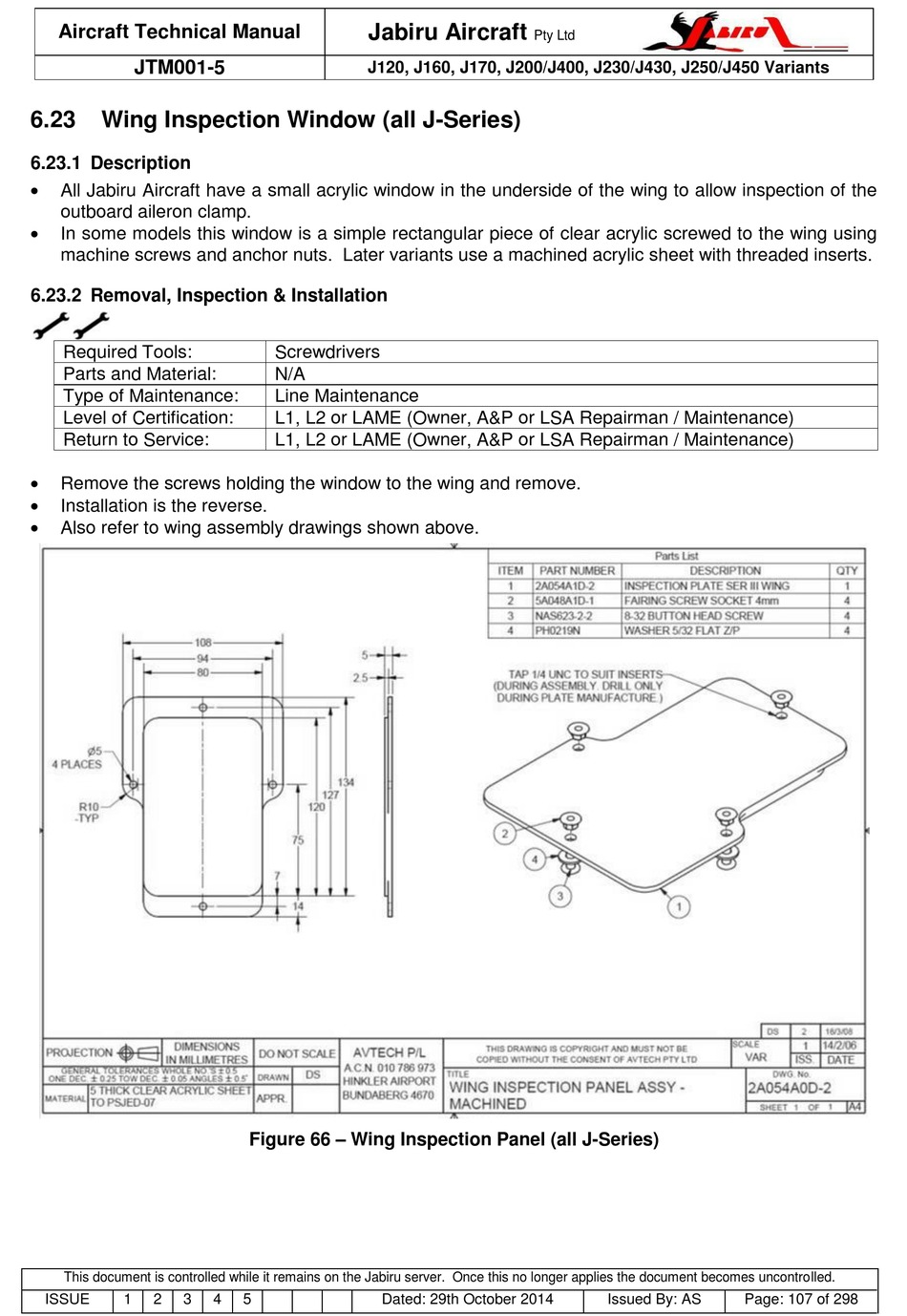

6.23 Wing Inspection Window (all J-Series)
6.23.1 Description

All Jabiru Aircraft have a small acrylic window in the underside of the wing to allow inspection of the
outboard aileron clamp.

In some models this window is a simple rectangular piece of clear acrylic screwed to the wing using
machine screws and anchor nuts. Later variants use a machined acrylic sheet with threaded inserts.
6.23.2 Removal, Inspection & Installation
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Remove the screws holding the window to the wing and remove.

Installation is the reverse.

Also refer to wing assembly drawings shown above.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Screwdrivers
N/A
Line Maintenance
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Figure 66 – Wing Inspection Panel (all J-Series)
4 5 Dated: 29th October 2014
Pty Ltd
Issued By: AS Page: 107 of 298
