6.70 Trim Control Cables (all J-Series)
6.70.1 Description

Control Cables are of the enclosed push-pull type, fitted with spherical bearings at both ends. To
operate, the outer cover of the cable must be clamped firmly at each end.
6.70.2 Control Cable Removal
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:
1. Unbolt the connections (rod end bearings) at either ends of the cable.
2. Unbolt the clamps at either end of the cable.
3. Where required, remove any ties etc used to restrain the cables in the aircraft.
4. Tie a string or light wire to one end of the cable.
5. Draw the cable out of the aircraft, leaving the string/wire in place to allow installation of a
replacement part.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

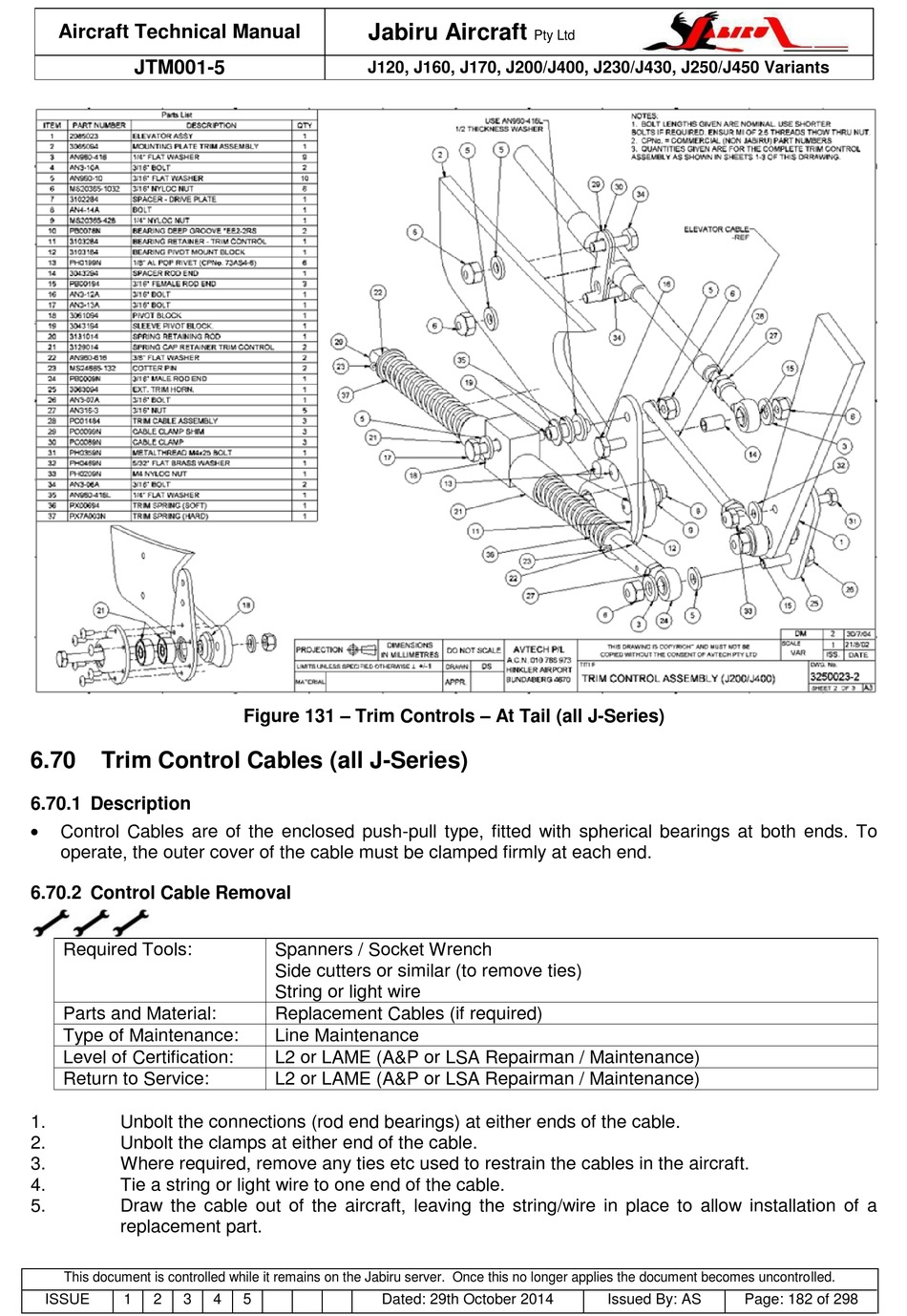

Figure 131 – Trim Controls – At Tail (all J-Series)
Spanners / Socket Wrench
Side cutters or similar (to remove ties)
String or light wire
Replacement Cables (if required)
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
