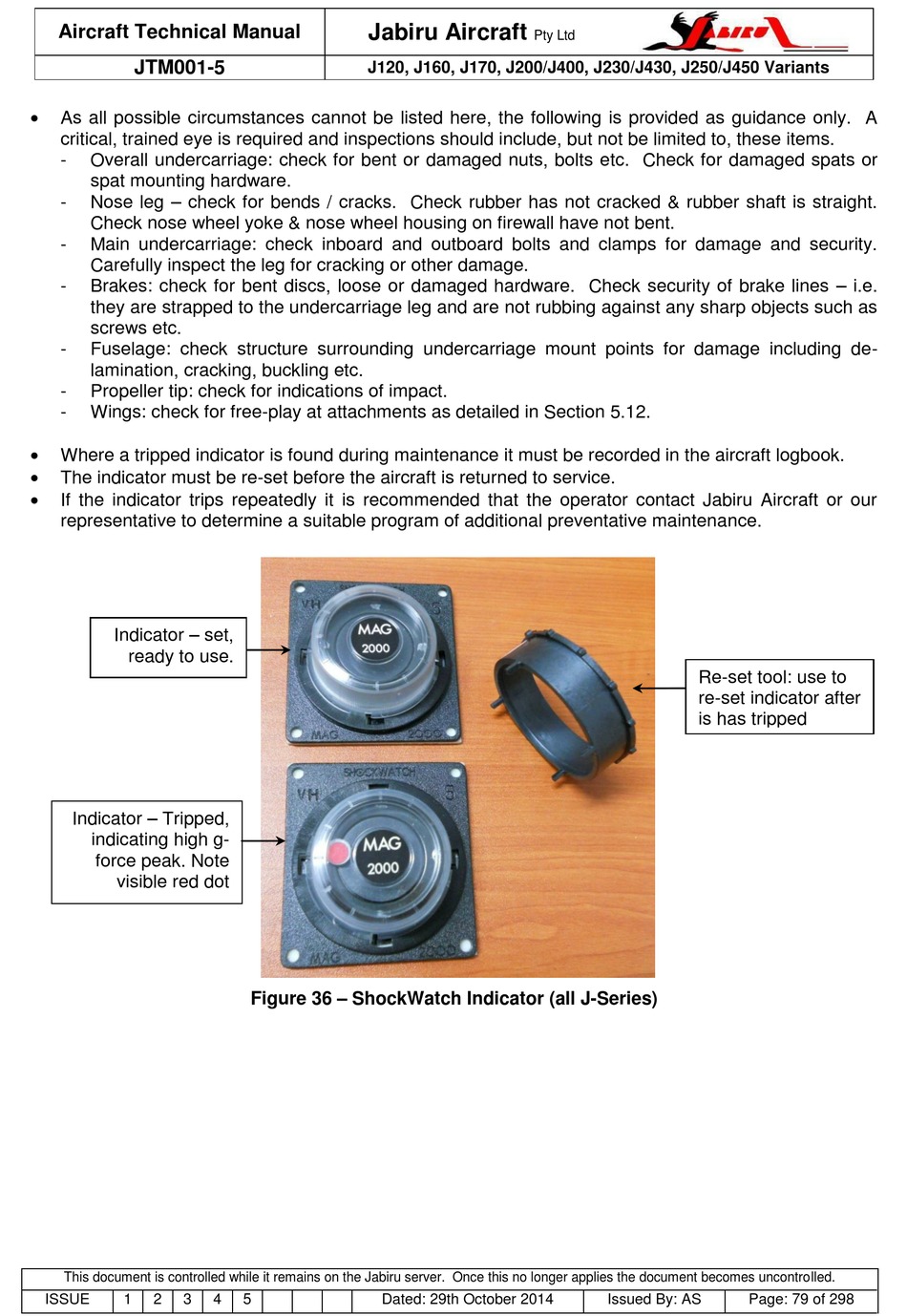

Figure 36 – Shockwatch Indicator - Jabiru j160 Technical Manual

Aircraft Technical Manual
JTM001-5

As all possible circumstances cannot be listed here, the following is provided as guidance only. A
critical, trained eye is required and inspections should include, but not be limited to, these items.
- Overall undercarriage: check for bent or damaged nuts, bolts etc. Check for damaged spats or
spat mounting hardware.
Nose leg – check for bends / cracks. Check rubber has not cracked & rubber shaft is straight.
-
Check nose wheel yoke & nose wheel housing on firewall have not bent.
- Main undercarriage: check inboard and outboard bolts and clamps for damage and security.
Carefully inspect the leg for cracking or other damage.
Brakes: check for bent discs, loose or damaged hardware. Check security of brake lines – i.e.
-
they are strapped to the undercarriage leg and are not rubbing against any sharp objects such as
screws etc.
- Fuselage: check structure surrounding undercarriage mount points for damage including de-
lamination, cracking, buckling etc.
- Propeller tip: check for indications of impact.
- Wings: check for free-play at attachments as detailed in Section 5.12.

Where a tripped indicator is found during maintenance it must be recorded in the aircraft logbook.

The indicator must be re-set before the aircraft is returned to service.

If the indicator trips repeatedly it is recommended that the operator contact Jabiru Aircraft or our
representative to determine a suitable program of additional preventative maintenance.
Indicator – set,
ready to use.
Indicator – Tripped,
indicating high g-
force peak. Note
visible red dot
