Aircraft Technical Manual
JTM001-5
The control clearance is less than 3mm at the control's point of overlap when tested as detailed
-
in Inspection B. Note that this clearance limit only applies to controls which are configured such
that they actually have a point of overlap.
- The control clearance changes by 5mm or more when the test load of Inspection B is applied.
This is irrespective of if the control has a point of overlap or not.

Carry on to Inspection C in all cases.

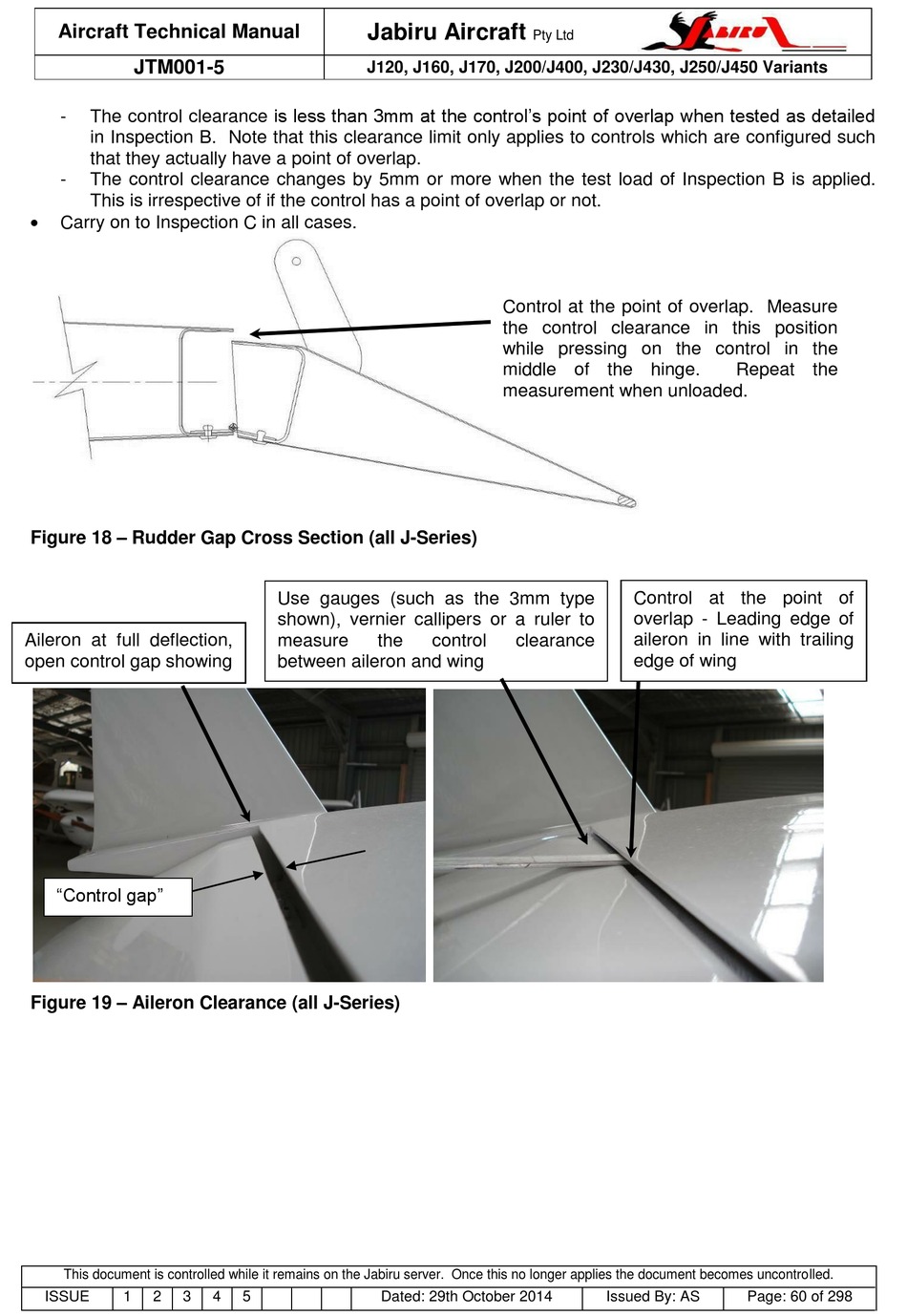

Figure 18 – Rudder Gap Cross Section (all J-Series)
Aileron at full deflection,
open control gap showing
"Control gap"
Figure 19 – Aileron Clearance (all J-Series)
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Use gauges (such as the 3mm type
shown), vernier callipers or a ruler to
measure the
between aileron and wing
4 5 Dated: 29th October 2014
Pty Ltd
Control at the point of overlap. Measure
the control clearance in this position
while pressing on the control in the
middle of the hinge.
measurement when unloaded.
control clearance
Repeat the
Control at the point of
overlap - Leading edge of
aileron in line with trailing
edge of wing
Issued By: AS Page: 60 of 298
