Aircraft Technical Manual
JTM001-5

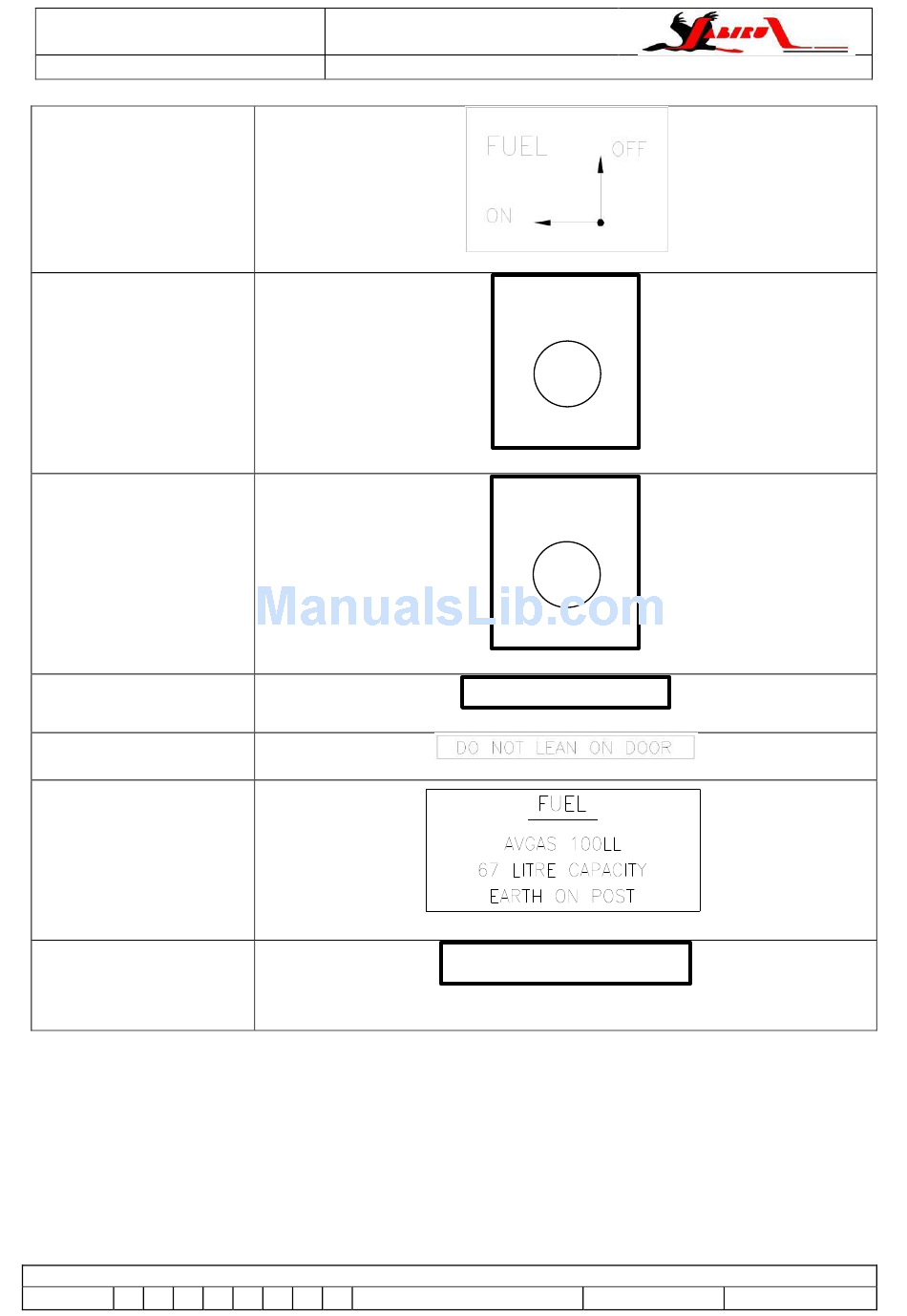

Fuel Tap Position
P/No 5023094
Where Equipped
Choke Cable
P/No5051094
Where Equipped
Carb Heat
P/No 5026194
Where Equipped
Static Port
(P/No 5043094
Door Lean.
P/No. 5A013A0D
Fuel Grade
P/No 5091344
2 OFF
Wing Bolt Tightening
P/No 5039094
Qty 8 Required

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Fitted to the left-hand of the console adjacent to the fuel valve
Fitted at the base of the choke cable.
Fitted at the base of the CARBY Heat Cable.
Attach to LHS of Vertical Fin in line with Static Tube
Attach to top skin of wing adjacent to Fuel Filler Cap.
Attach to the fuselage and wings beside each wing, and lift strut
attachment fitting.
4 5 Dated: 29th October 2014
Pty Ltd
CHOKE
PULL ON
CARB HEAT
PULL ON
STATIC VENT KEEP CLEAR
Fit to top of doors.
DANGER DO NOT TIGHTEN
Issued By: AS Page: 281 of 298
