Aircraft Technical Manual
JTM001-5

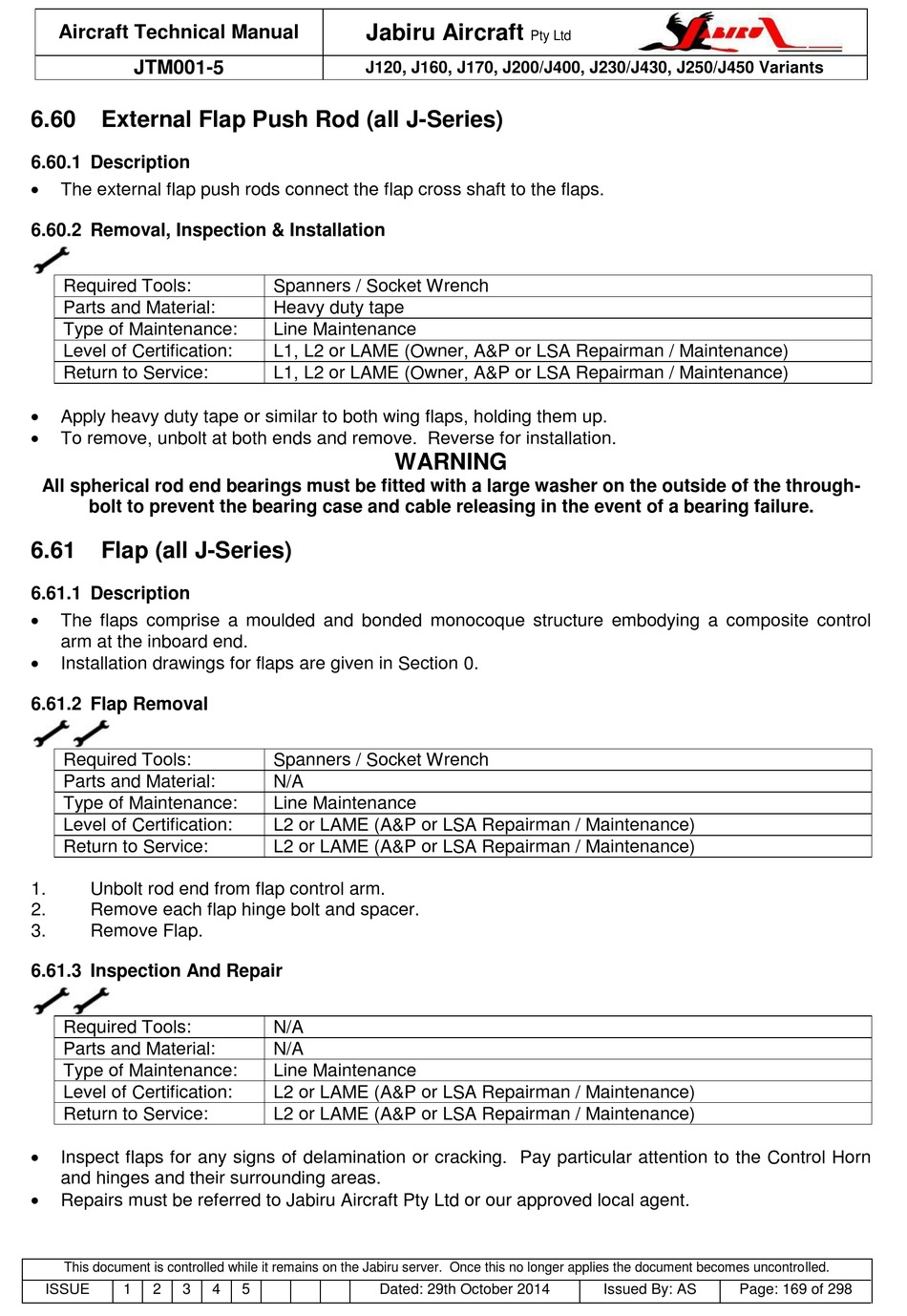

6.60 External Flap Push Rod (all J-Series)
6.60.1 Description

The external flap push rods connect the flap cross shaft to the flaps.
6.60.2 Removal, Inspection & Installation
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Apply heavy duty tape or similar to both wing flaps, holding them up.

To remove, unbolt at both ends and remove. Reverse for installation.
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.
6.61 Flap (all J-Series)
6.61.1 Description

The flaps comprise a moulded and bonded monocoque structure embodying a composite control
arm at the inboard end.

Installation drawings for flaps are given in Section 0.
6.61.2 Flap Removal
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:
1. Unbolt rod end from flap control arm.
2. Remove each flap hinge bolt and spacer.
3. Remove Flap.
6.61.3 Inspection And Repair
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Inspect flaps for any signs of delamination or cracking. Pay particular attention to the Control Horn
and hinges and their surrounding areas.

Repairs must be referred to Jabiru Aircraft Pty Ltd or our approved local agent.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Spanners / Socket Wrench
Heavy duty tape
Line Maintenance
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Spanners / Socket Wrench
N/A
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
N/A
N/A
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
4 5 Dated: 29th October 2014
Pty Ltd
WARNING
Issued By: AS Page: 169 of 298
