Elevator Control System

6.63 Elevator Control System (all J-Series)
6.63.1 Description

The elevator control system is comprised of a control column and one enclosed push-pull cable fitted
with rod ends at both ends.

Due to space constraints not all different variations are shown herein. When ordering spare parts
provide as must detail as possible – part description, aircraft model, serial number etc to Jabiru to
ensure accurate part identification.
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.

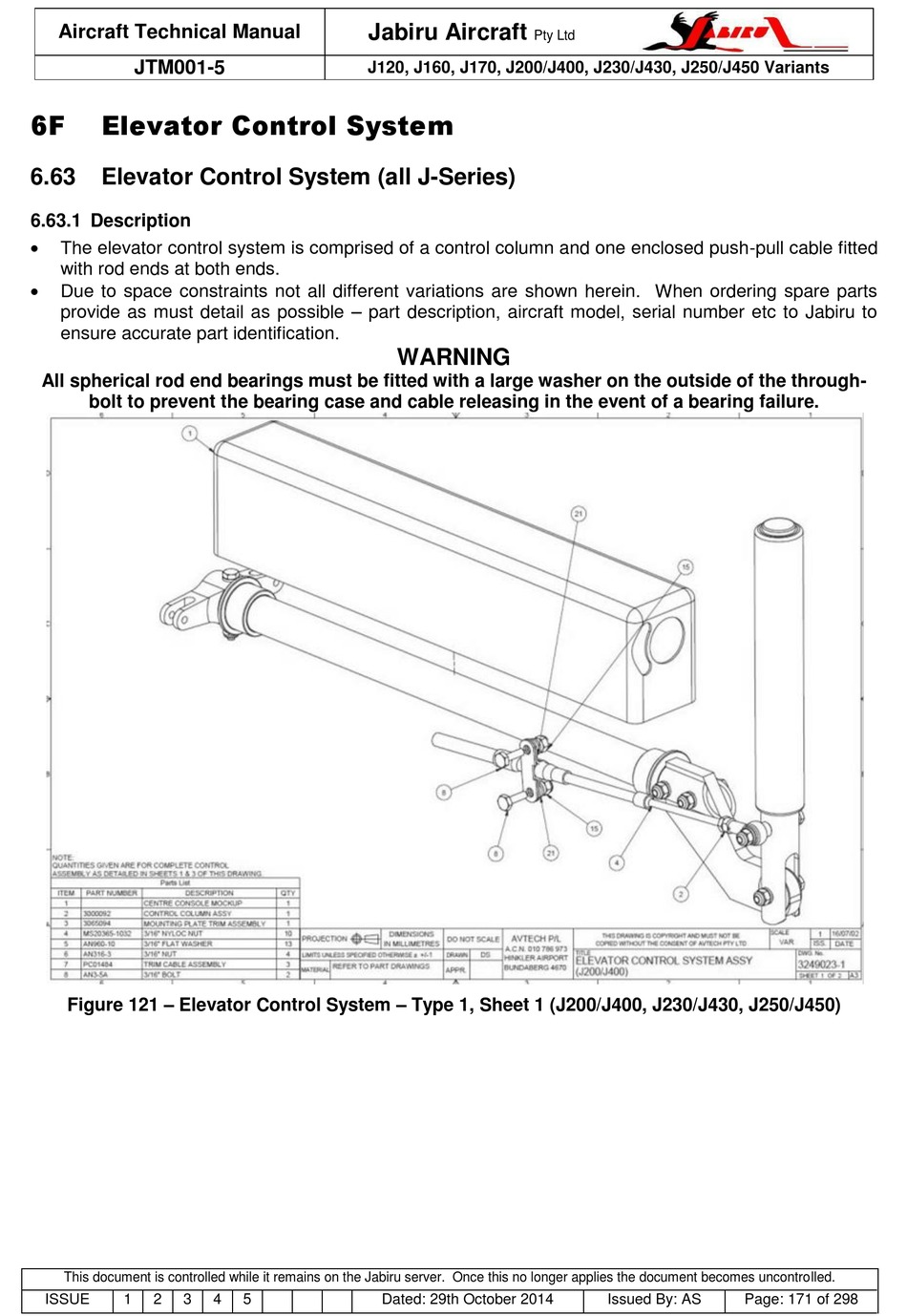

Figure 121 – Elevator Control System – Type 1, Sheet 1 (J200/J400, J230/J430, J250/J450)
