Figure 84 – Dual Calliper Brake Assy (Quick Change Pads) - Jabiru j160 Technical Manual

Jabiru Aircraft
Aircraft Technical Manual
Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

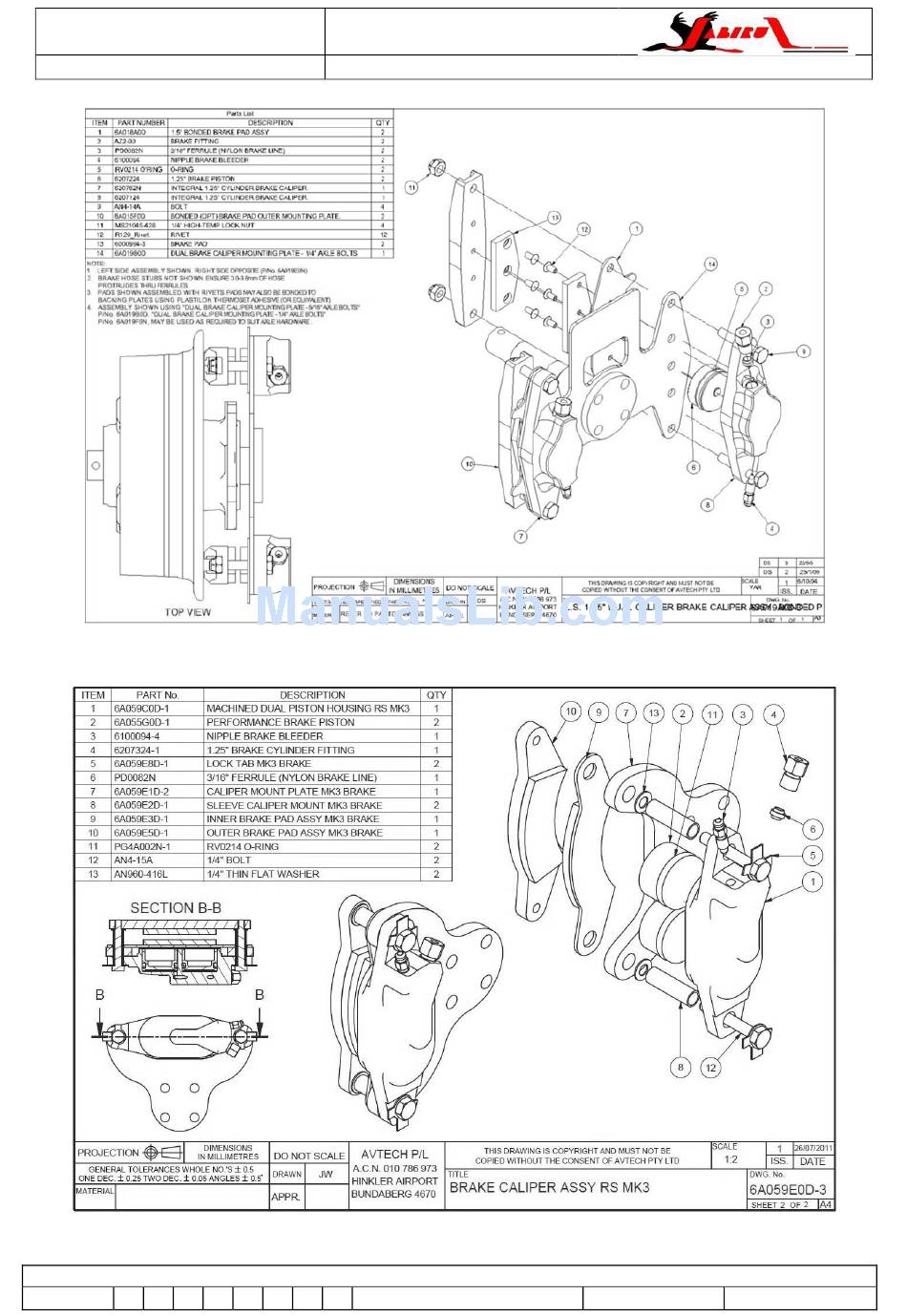

Figure 84 – Dual Calliper Brake Assy (Quick Change Pads) (J200/J400, J230/J430, J250,J450)
Figure 85 – Single Calliper Detail (Mk III brakes) (all J-Series, n/a J120)
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3 4 5 Dated: 29th October 2014 Issued By: AS Page: 139 of 298
