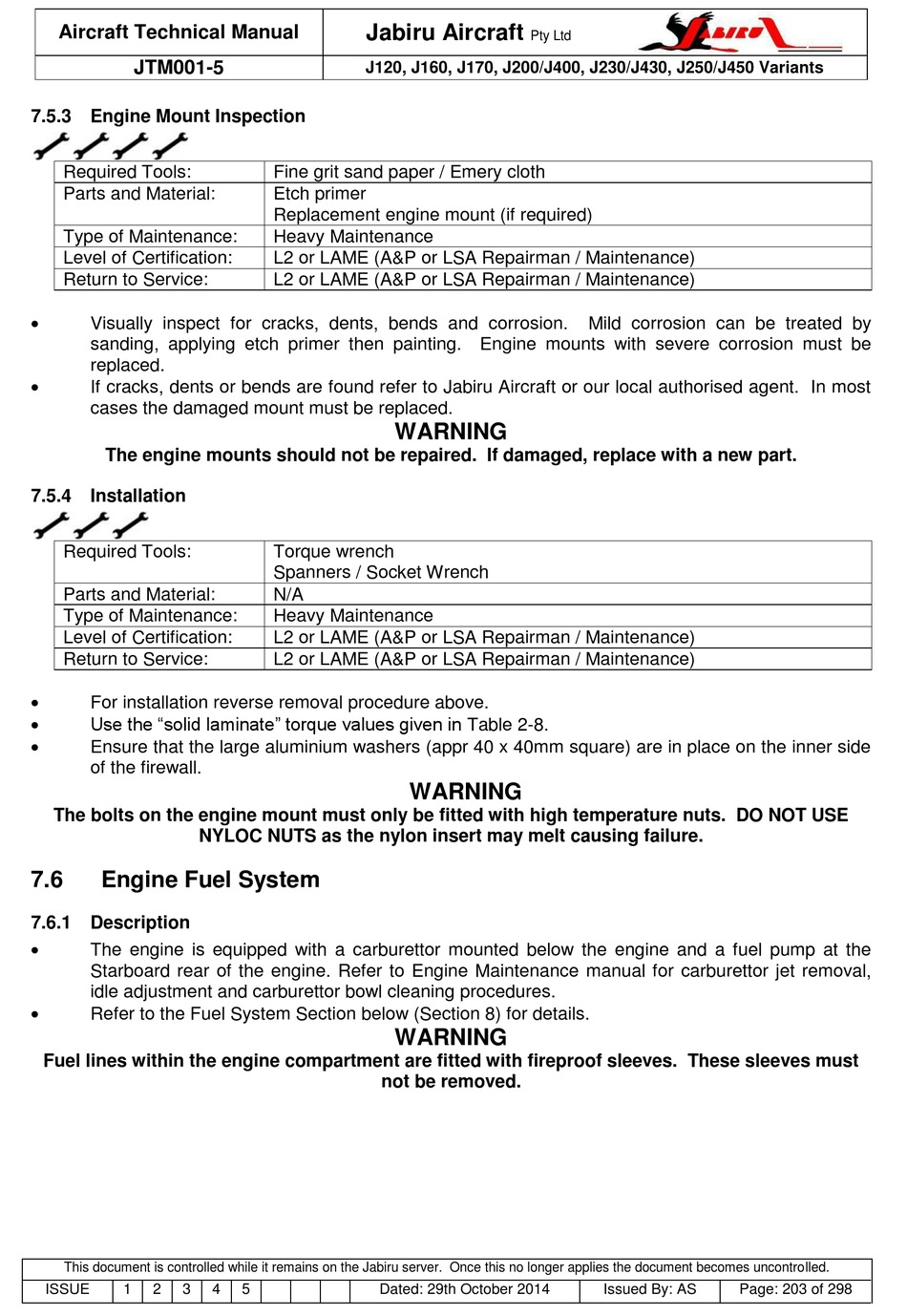

7.5.3 Engine Mount Inspection
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Visually inspect for cracks, dents, bends and corrosion.
sanding, applying etch primer then painting. Engine mounts with severe corrosion must be
replaced.

If cracks, dents or bends are found refer to Jabiru Aircraft or our local authorised agent. In most
cases the damaged mount must be replaced.
The engine mounts should not be repaired. If damaged, replace with a new part.
7.5.4 Installation
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

For installation reverse removal procedure above.

Use the "solid laminate" torque values given in Table 2-8.

Ensure that the large aluminium washers (appr 40 x 40mm square) are in place on the inner side
of the firewall.
The bolts on the engine mount must only be fitted with high temperature nuts. DO NOT USE
NYLOC NUTS as the nylon insert may melt causing failure.
7.6

Engine Fuel System

7.6.1 Description

The engine is equipped with a carburettor mounted below the engine and a fuel pump at the
Starboard rear of the engine. Refer to Engine Maintenance manual for carburettor jet removal,
idle adjustment and carburettor bowl cleaning procedures.

Refer to the Fuel System Section below (Section 8) for details.
Fuel lines within the engine compartment are fitted with fireproof sleeves. These sleeves must
