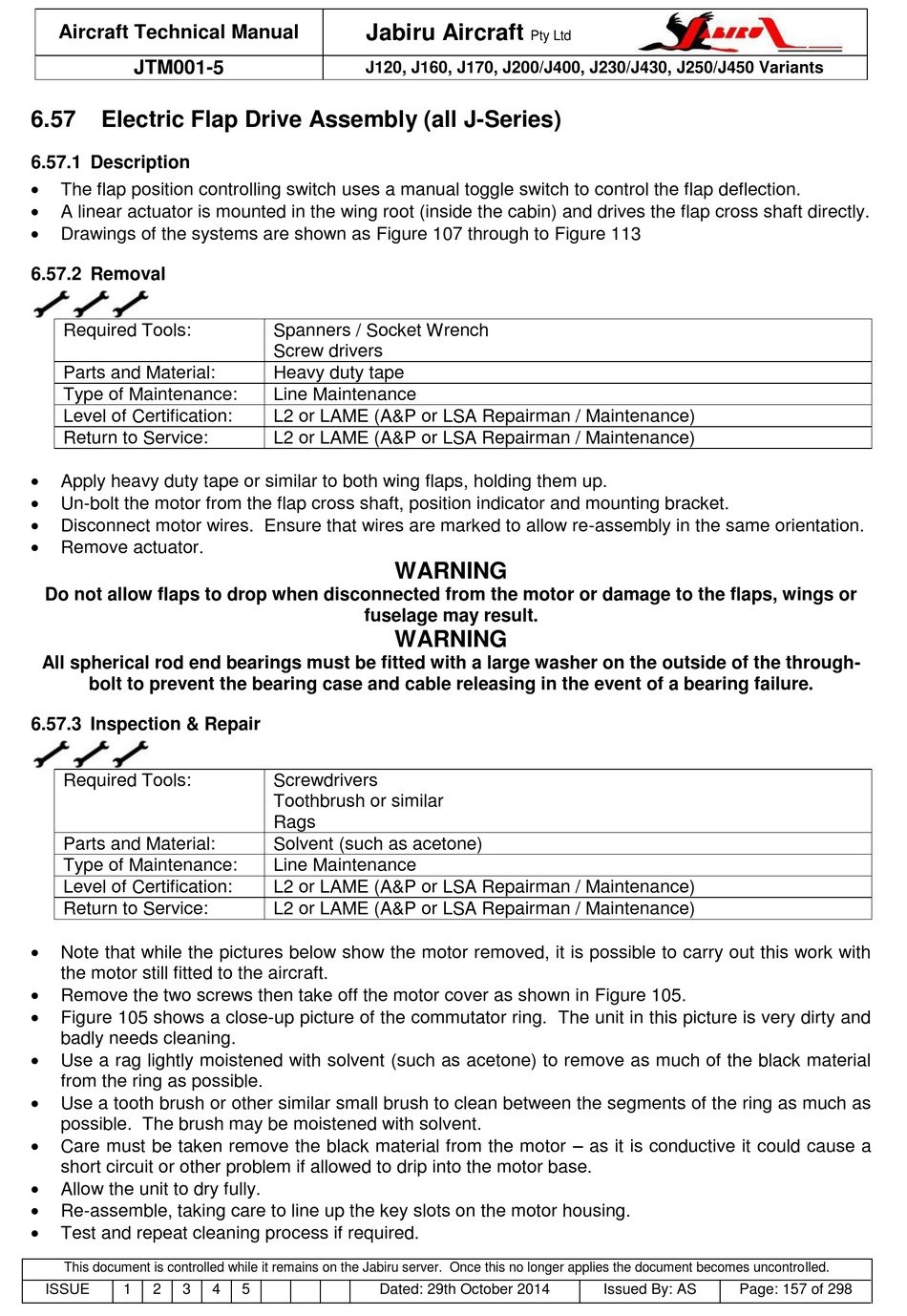

6.57 Electric Flap Drive Assembly (all J-Series)
6.57.1 Description

The flap position controlling switch uses a manual toggle switch to control the flap deflection.

A linear actuator is mounted in the wing root (inside the cabin) and drives the flap cross shaft directly.

Drawings of the systems are shown as Figure 107 through to Figure 113
6.57.2 Removal
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Apply heavy duty tape or similar to both wing flaps, holding them up.

Un-bolt the motor from the flap cross shaft, position indicator and mounting bracket.

Disconnect motor wires. Ensure that wires are marked to allow re-assembly in the same orientation.

Remove actuator.
Do not allow flaps to drop when disconnected from the motor or damage to the flaps, wings or
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.
6.57.3 Inspection & Repair
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Note that while the pictures below show the motor removed, it is possible to carry out this work with
the motor still fitted to the aircraft.

Remove the two screws then take off the motor cover as shown in Figure 105.

Figure 105 shows a close-up picture of the commutator ring. The unit in this picture is very dirty and
badly needs cleaning.

Use a rag lightly moistened with solvent (such as acetone) to remove as much of the black material
from the ring as possible.

Use a tooth brush or other similar small brush to clean between the segments of the ring as much as
possible. The brush may be moistened with solvent.

Care must be taken remove the black material from the motor – as it is conductive it could cause a
short circuit or other problem if allowed to drip into the motor base.

Allow the unit to dry fully.

Re-assemble, taking care to line up the key slots on the motor housing.

Test and repeat cleaning process if required.
