Hydraulic Brake Lines

Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:
6.42.1 Description

Jabiru Aircraft use flexible black nylon brake hoses. On most models they are connected to the
master cylinder via a tee-piece – typically located in the main undercarriage channel under the belly
of the aircraft.
6.42.2 Removal Repair & Installation

Repair is limited to replacement.
6.43 Wheel Brakes (all J-Series)
6.43.1 Description

The Wheel Brake Assemblies consist of a disc which is attached to the main wheel hub with through-
bolts and a floating brake caliper assembly.

Depending on model there may be 1 or 2 calipers fitted to each wheel.

Older aircraft use a slightly different caliper as shown in Figure 86. Maintenance, inspection & repair
of this system is the same as for later variants.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

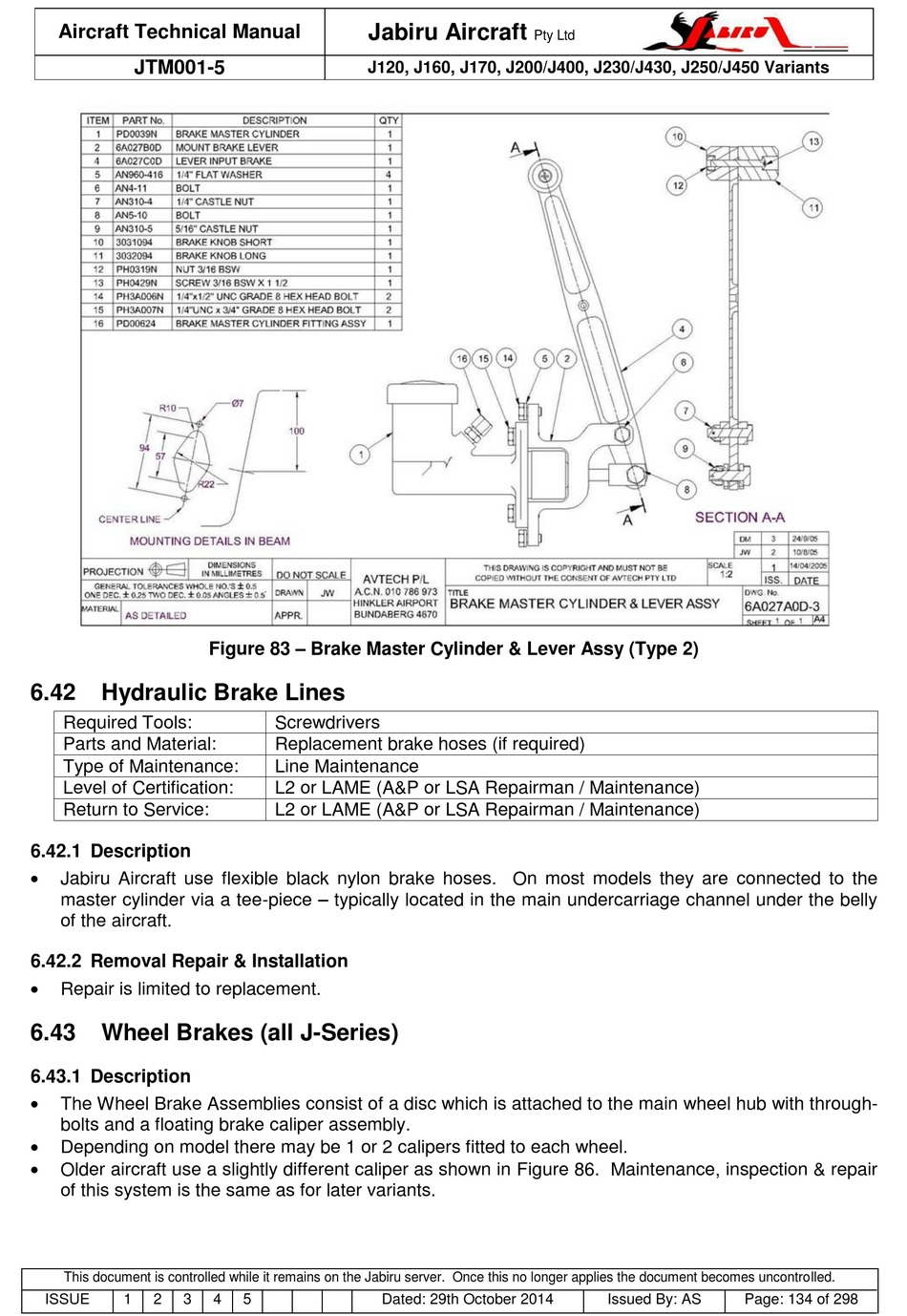

Figure 83 – Brake Master Cylinder & Lever Assy (Type 2)
